American Machine 3" Trash Pedestal Drive Pump
American Machine 3" Trash Pedestal Drive Pump
SKU:PRO-31d7eb
Reliable 3" Trash Pedestal Drive Pump for water/wastewater applications. Durable stainless steel construction, fast priming, and efficient operation.
Regular price
$749.00
Regular price
Sale price
$749.00
Unit price
per
Initiate Order
American Machine 3" Trash Pedestal Drive Pump
$749.00
Quantity: 1
Claim Your Seller Account
American Machine 3" Trash Pedestal Drive Pump
$749.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

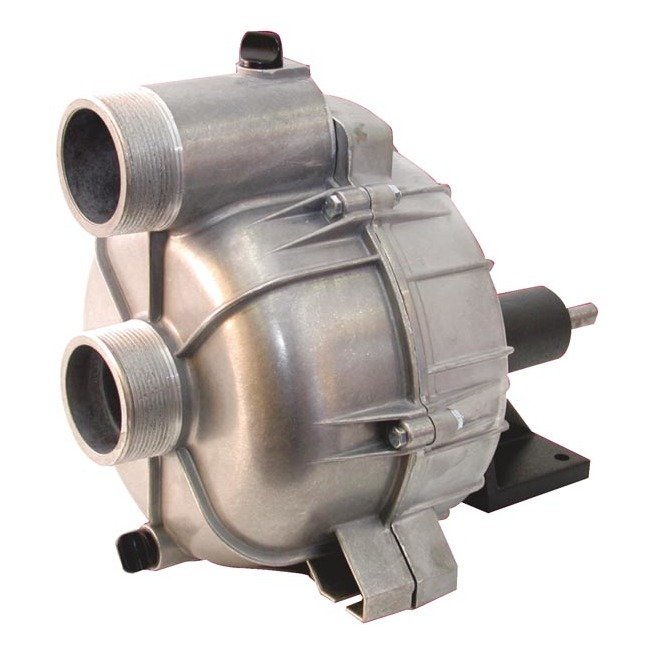

The American Machine 3" Trash Pedestal Drive Pump offers reliable performance for water and wastewater applications. Built with stainless steel internal components for easy servicing, a large pump casing for fast priming, and a built-in EPDM check valve for efficient operation. This pump features a durable design with threaded connections, a strainer for clog prevention, and a stainless steel shaft sleeve. The Silicon-carbide/Ceramic seal with Viton® faces ensures extended longevity, making it a dependable choice for institutional use.
Product Specifications
Curves 0
Performance Curves
Dimensions 0

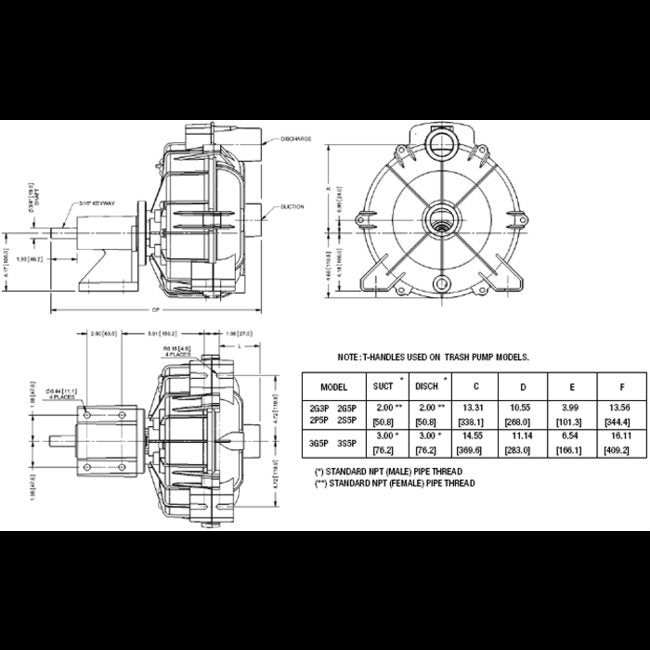

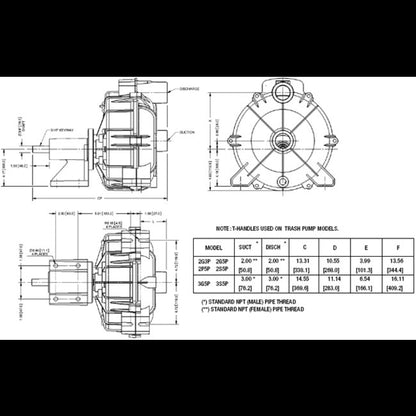

Dimensional Drawing
Specifications 0
Stainless steel internal screws and pins (For easy servicing)Large pump casing (For fast priming)Built-in EPDM check valve (For fast priming)Horizontal discharge (No need to buy elbow)Threaded connections (No need to buy nipples)Strainer supplied with each pump (To Eliminate clogging)Stainless steel shaft sleeve (On threaded models only)Silicon-carbide/Ceramic seal with Elastomers of Viton® (Hard faces for extended life)
Specifications Customs Code
HTS Code 8413702025
Specifications Driver
Pedestal
Specifications Elastomers
EPDM
Specifications Inlet Size
3 in | 76.20 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Porting Position
3 in | 76.20 mm
Specifications Power
6 hp
Specifications Pump Type
Trash
Specifications Seal Type Elastomerfaces
Viton®/Sic/Sic
Specifications Sku
AT3S5PCSP
Specifications Weight
36.29 | 80 | 80 lbs
