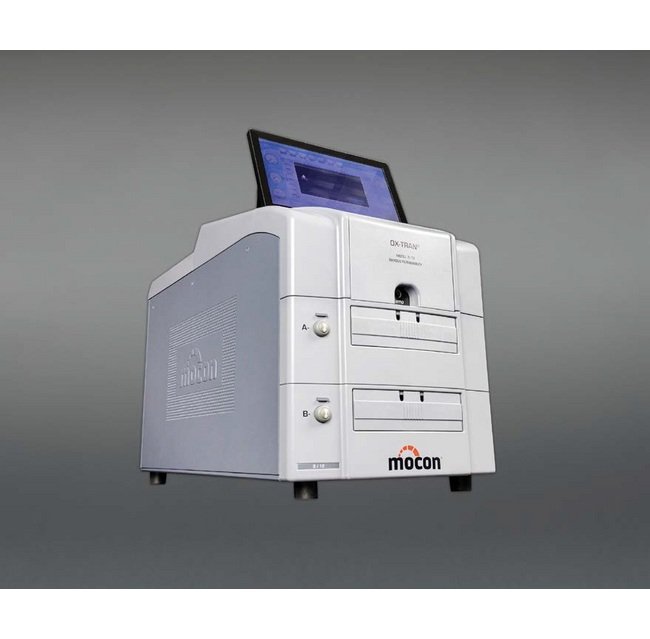

AMETEK MOCON OX-TRAN 2/12 Series T Model Oxygen Permeation Analyzer
AMETEK MOCON OX-TRAN 2/12 Series T Model Oxygen Permeation Analyzer
SKU:PRO-7f3274
Versatile and reliable oxygen permeation analyzer with wide detection range and advanced features for barrier film testing.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
AMETEK MOCON OX-TRAN 2/12 Series T Model Oxygen Permeation Analyzer
$18,999.00
Quantity: 1
Claim Your Seller Account
AMETEK MOCON OX-TRAN 2/12 Series T Model Oxygen Permeation Analyzer
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMETEK MOCON OX-TRAN 2/12 Series T Model Oxygen Permeation Analyzer is a versatile and reliable instrument designed for testing a wide range of barrier films and packages. With a detection range from 200 to 65,000 cm³/(m²·day), this analyzer is perfect for analyzing low-to-high level barriers or high transmitter films. Featuring advanced technology such as a unique high range Coulox sensor and intuitive touchscreen interface, this analyzer offers accurate results with automated operation. Additionally, it meets industry standards including ASTM, DIN, ISO, and JIS, making it ideal for institutional and government procurement needs.
Product Specifications
Additional Information Additional Information
Advanced Control SystemThe user friendly WinPerm 2 control system features fully automated testing including temperature, gas flow and RH control. Final test reports are automatically saved and can be set to automatically print and export to permanent storage directories. The analyzer is compatible with PermWareâ¢, your complete permeation laboratory data management system. The test mode options make testing known or unknown samples easy and repeatable. A single button push initiates a fully automated test following pre-set stored parameters, reducing operator variability. The intuitive color touch screen is easy to learn and use while the automated testing provides consistent results and fewer potential errors.Accuracy in Oxygen Permeation TestingThe OX-TRAN 2/12 series analyzers feature our exclusive test cell drawer design with two horizontal removable easyto- load cartridge to improve test repeatability. A single button opens and closes the drawers, and the cartridge is automatically clamped in place with consistent and even force on any sample thickness. This approach provides greater test repeatability than manual or cam clamping methods. All test cartridges incorporate AMETEK MOCONâs exclusive TruSeal® design that utilizes two seals and flushes gas between them to prevent ambient ingress into the test area. This reduces background levels, improves repeatability, and reduces the need to run individual zero.Wide Range of ApplicationsThe OX-TRAN 2/12 Series of instruments are available with a variety of AMETEK MOCONâs exclusive test cartridges, providing flexibility to test more sample types. These include whole packages, paper-based materials and lower barrier films with the reduced area cartridge that increases the maximum range without the need for masks.
Features Features
Touchscreen InterfaceIntuitive automated operation requires less trainingBuilt in multi-level user management and data security Event log & trouble shooting guide Save on valuable lab space by eliminating need for PCAccurate Sensors2/12 R model has wide range sensor providing reliable, repeatable results 2/12 T model has a unique high range Coulox sensor for high transmitter barriers Built-in sensor protectionWarrantyFull 100% parts and workmanship warranty for 12 monthsRemovable CartridgesEasy sample prep on the benchtopOne button release and loading Pneumatic clamping provides more repeatable resultsInterchangeable cartridge optionsTruSeal®Gas flushing of sample mounting seal protects chamber integrity Lowers background levels improving accuracy at ultra-low detection levelsShortened testing time increases throughput More repeatable resultsControl FeaturesFully automated flow, temp, & RH control throughout tests Automatic test method development and recommendations Programmable multi-test sequencing Temperature compensation mode for refrigerated applications
Specifications Accessories
Reduced area cartridge Edge effect cartridge Blister testing cartridge Package testing adapter Custom engineered test cartridges PermWare⢠software for data collection and remote monitoring
Specifications Carrier Gas Nitrogen
100 %
Specifications Conformance Standards
Carrier Safety Administration (CSA) Safety Compliance | European Conformity (CE) | Underwriters Laboratories (UL)
Specifications Connectivity
Ethernet Port2 USB PortsOptional PERM-NET LiteTM for remote monitoring
Specifications Depth
23 in | 58.0 cm
Specifications Height
15.5 in | 10 to 35 cm
Specifications Industry Standards
American Society for Testing and Materials (ASTM) F2622-08 | German Institute for Standardization (DIN) 53380-3 | International Organization for Standardization (ISO) CD 15105-2 | Japanese Industrial Standards (JIS) K-7126-B
Specifications Maximum Film Thickness
120 mil
Specifications Models
T ModelHigh transmitters Designed for barriers beyond the operating range of traditional OTR instruments Detection range from 200 to 65,000 cc/(m2 · day) (up to 576,200 cc/(m2 · day with reduced area cartridge). 2/12 T model has a unique high range Coulox sensor for high transmitter barriers
Specifications Repeatability
25 cm³/(m²·day) | 1 %
Specifications Resolution
2.0 cm³/(m²·day)
Specifications Test Gas Oxygen
100 Oxygen (Purity 99.9) %
Specifications Test Range For Normal 50 Cm
200 to 65,000 cm³/(m²·day) | 12.9 to 4200 cm³/(100 in²·day) | 1.0 to 323 cm³/(pkg·day)
Specifications Test Temperature Range
10 to 35 ºC
Specifications Test Temperature Range Tolerance
0.2 ºC
Specifications Weight
43.1 kg | 95 lb
Specifications Width
12 in | 30.4 cm
Technical Specifications Test Range For Reduced Area Cartridge 5
1770 to 576,200 cm³/(m²·day) | 114 to 37,200 cm³/(100 m²·day)
