AMETEK OX-TRAN 1/50 Series Permeation Analyzer
AMETEK OX-TRAN 1/50 Series Permeation Analyzer
SKU:PRO-03d996
Reliable OTR Testing for Films. Accurate results, user-friendly, ideal for various applications.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
AMETEK OX-TRAN 1/50 Series Permeation Analyzer
$8,999.99
Quantity: 1
Claim Your Seller Account
AMETEK OX-TRAN 1/50 Series Permeation Analyzer
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

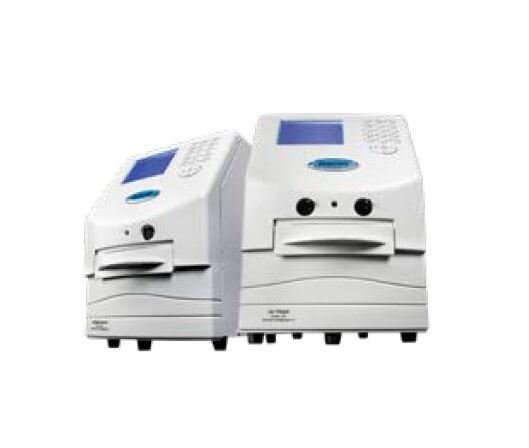

The AMETEK OX-TRAN® 1/50 Series Oxygen and Water Vapor Permeation Analyzer is a cost-effective and user-friendly instrument designed for measuring Oxygen Transmission Rate (OTR) on films with varying barrier properties. It offers precise and repeatable test results within a broad detection range, making it suitable for both novice users and advanced operators. With a compact footprint, intuitive digital display, automated control features, and reliable sensors, this analyzer ensures accurate permeation testing across various applications, from research and development to quality control in production environments.
Product Specifications
Accessories Accessories
Printer
Accurate Sensors Accurate Sensors
The OX-TRAN® 1/50 uses our reliable Coulometric sensor that requires no calibration and complies with the ASTM standard D3985.The Permatran-W® 1/50 G uses our reliable RH sensor for accurate transmission rate readings that complies with the ASTM standard E398.
Additional Information Additional Information
The OX-TRAN® 1/50 has an OTR detection range from 0.1 to 200 cc/(m²·day). The upper detection limit can be extended to 2,000 cc/(m²·day) with the use of a 5 m² mask or 960 cc/(m²·day) using atmospheric oxygen in place of the normal 100% O2.
Applications Applications
The 1/50 Series are designed to be an effective yet simple-to-use instrument for a wide range of applications where low throughput is acceptable. The testing capability make them an ideal OTR instrument to test single samples from mono-layer to multi-layer films, coated films and coated paper board. Whether it is research and development at a university, or as a QC instrument to support production operations it provides reliable data to support your permeation testing needs.
Automated Control Features Automated Control Features
Fully automated flow & temp controlSet and go automatic RH controls on both sides of sampleStore up to 99 different test methods Sensor protection from over ranging and shortening sensor life
Basic Permeation Instrument Basic Permeation Instrument
The 1/50 series Instruments are designed to be easy to use and provides reliable accurate test results. They are a cost-effective option for laboratories looking to start in-house permeation testing.

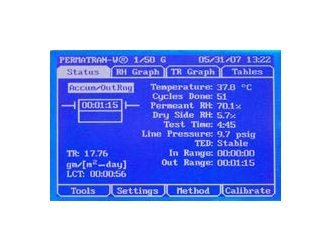

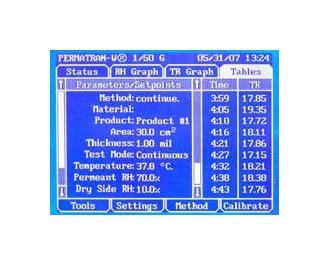

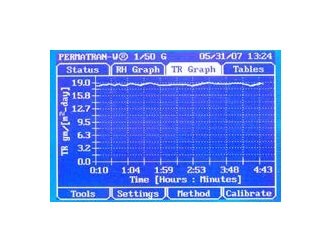

Digital Display With Keypad Interface Digital Display With Keypa
Intuitive operation reduces trainingAdvisory screen prompts inputsStatus screen displays real-time informationIntegrated controls save valuable lab space by eliminating need for PC
Dimensions And Weight Depth
18 in | 45.7 mm
Dimensions And Weight Height
17 in | 43.2 mm
Dimensions And Weight Weight
49 lb | 22.2 kg
Dimensions And Weight Width
11 in | 27.9 mm
Ease Of Loading Ease Of Loading
These instruments feature our exclusive test cell drawer design with one horizontal removable easy-to-load test cartridge that improves test repeatability. A single button opens and closes the drawers, and the cartridge is automatically clamped in place with consistent and even force on any sample thickness. This approach provides greater test repeatability than manual or cam clamping methods. With the cartridge removed, it is easy to clean and consistently load samples on the bench-top, reducing operator variability.
Efficient Use Of Space Efficient Use Of Space
The upright design and compact footprint require less lab space than many other permeation instruments. Itâs completely integrated control system with display makes it a perfect standalone instrument.
Ox Tran Coulometric Sensor Ox Tran Coulometric Sensor
Accurate and reliable resultsReliable coulometric sensor that complies with ASTM D3985

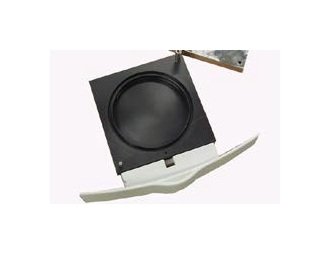

Removable Cartridges Removable Cartridge
Easy sample prep on the bench-topConsistent loadingOne button release and loadingPneumatic clamping provides repeatable results
Simple Operation Simple Operation
The easy-to-read digital display has advisory prompts for inputs to step operators through the requirements to set up and run a test. Advanced users can enter individual test parameters via the key pad, then run the test and/or save it as a method or Quick Start for use by other operators. This reduces the training needed to achieve reliable and repeatable test results. Press the Quick Start button to initiate a fully automated test following stored parameters, thus reducing operator variability. Final test reports can be printed with the optional printer. The keypad is easy to learn and use while the automated testing provides consistent results and fewer potential errors.
Specifications Conformance Standards
Canadian Standards Association (CSA) Safety Compliance | European Conformity (CE) | Underwriters Laboratories (UL)
Specifications Film Thickness
0 to 120 mil
Specifications Humidity Control Film Cell Test Gas
35 to 90 % | 100 %
Specifications Humidity Control Film Cell Test Gas Tolerance
3 %
Specifications Industry Standards
American Society for Testing and Materials (ASTM) E398 | International Organization for Standardization (ISO) 15106-1 | National Standard (Recommended) (GB/T) 30412-2013
Specifications Temperature Control Range
10 to 40 ºC
Specifications Test Temperature Range Tolerance
0.5 ºC
Technical Specifications Repeatability
0.05 cm³/(m²·day) | 1 %
Technical Specifications Resolution
0.001 cm³/(m²·day)
Technical Specifications Test Range For Masked Model 50 Cm
0.1 to 2000 cm³/(m²·day) | 0.07 to 129.0 cm³/(100 in²·day)
Technical Specifications Test Range For Normal Model 50 Cm
0.1 to 200 cm³/(m²·day) | 0.007 to 12.9 cm³/(100 in²·day)
Warranty Warranty
Full 100% parts and workmanship warranty for 12 months
