The AMETEK OX-TRAN® 2/22 10X Oxygen Permeation Analyzer offers unparalleled accuracy in Oxygen Transmission Rate (OTR) detection, catering to low to ultra-high barrier levels. With patented Coulox sensor technology and ASTM-compliant design, this analyzer guarantees precise results. It features easy sample handling, extensive testing capabilities for various materials, and an advanced control system for automated testing. The TruSeal® technology ensures integrity during testing, while the Coulox® sensor provides trusted, calibration-free results. Ideal for research labs or production settings, this analyzer meets ASTM, DIN, ISO, and other industry standards.
Product Specifications
Accessories Accessories
Reduced area cartridgeEdge effect cartridgeBlister testing cartridgePackage testing adapterCustom engineered test cartridgesPermWare⢠software for data collection and remote monitoring
Accuracy In Oxygen Permeation Testing Accuracy In Oxygen Permeat
The OX-TRAN® 2/22 series analyzers feature our exclusive test cell drawer design with two horizontal removable easy-to-load cartridges improve test repeatability. A single button opens and closes the drawers, and the cartridge is automatically clamped in place with consistent and even force on any sample thickness. This approach provides greater test repeatability than manual or cam clamping methods. All test cartridges incorporate AMETEK® mocon®'s exclusive TruSeal® design that utilizes two seals and flushes gas between them to prevent ambient ingress into the test area. This reduces background levels, improves repeatability, and reduces the need to run individual zero.
Advanced Control System Advanced Control System

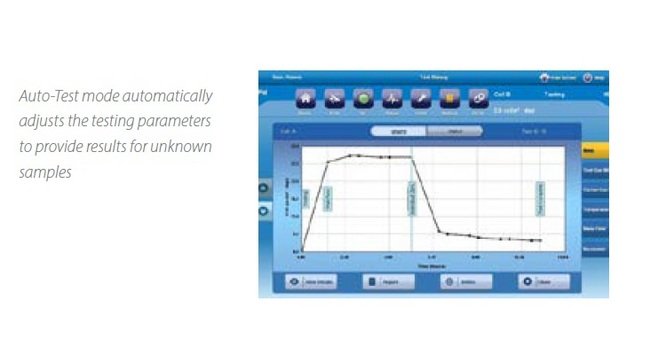

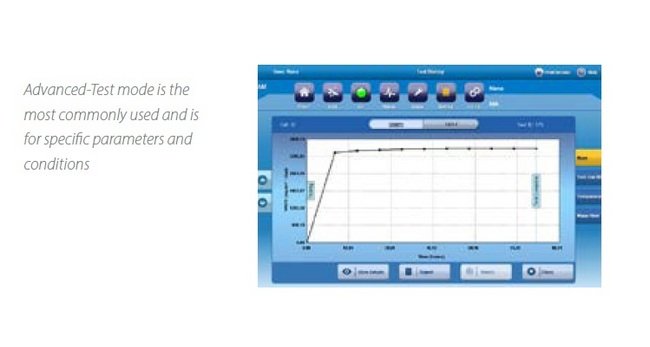

The user friendly WinPerm 2 control system features fully automated testing including temperature, gas flow and RH control. Final test reports are automatically saved and can be set to automatically print and export to permanent storage directories. The analyzer is compatible with PermWareâ¢, your complete permeation laboratory data management system. The test mode options make testing known or unknown samples easy and repeatable. A single button push initiates a fully automated test following pre-set stored parameters, reducing operator variability. The intuitive color touch screen is easy to learn and use while the automated testing provides consistent results and fewer potential errors.
Control Features Control Features

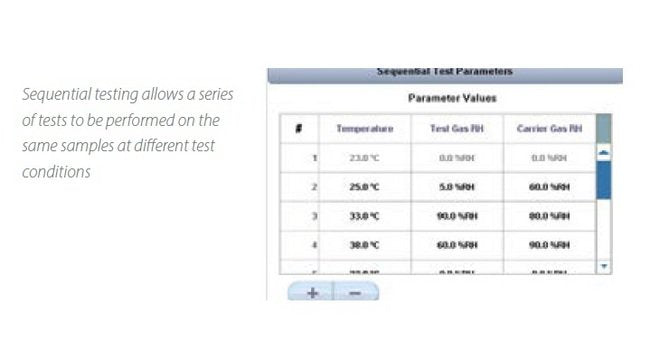

Fully automated flow, temp, and RH control throughout tests.Automatic test method development and recommendations.Programmable multi-test sequencing.Built-in sensor protection.
Coulox Sensor Coulox Sensor
The OX-TRAN® 2/22 Series use AMETEK® mocon®'s patented Coulox sensor which is an absolute (intrinsic) coulometric sensor requiring no calibration and is the basis for the ASTM standard D3985. It is the only instrument family proven to meet ASTM's precision and bias requirement through independent and 3rd party testing.
Coulox Sensor Trusted Result Coulox Sensor Trusted Result
Short exam times reduces overall test time to increase throughput.Longest life oxygen permeation absolute coulometric sensor.More accurate and repeatable results vs. sensors that require calibration.Complies with ASTM D3985.
Dimensions And Weight Depth
23 in | 58.0 cm
Dimensions And Weight Height
15.5 in | 39.4 cm
Dimensions And Weight Weight
95 lb | 43.1 kg
Dimensions And Weight Width
12 in | 30.4 cm
Extensive Testing Capabilities And Applications Extensive Testin

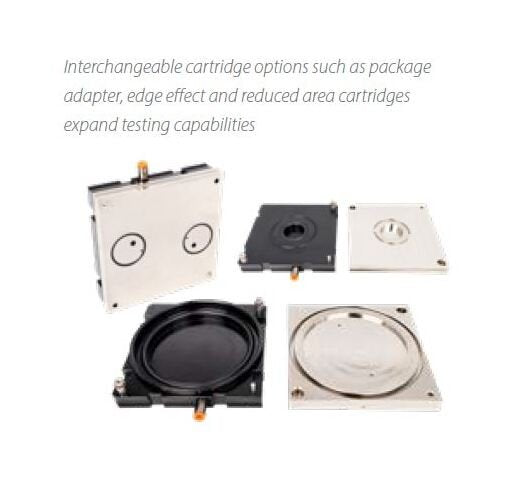

The accuracy and wide testing capability of the 2/22 Series make it an ideal OTR instrument for both research and development or production support laboratories. It has the capability to test from mono-layer to multi-layer films, coated films to coated paper board, and specialty applications such as gels or lotions. With the optional adapter cartridge it can also test complete or partial packages, flexible or rigid containers, bottles/closures, and seals in the form of O-rings or gaskets. The interchangeable cartridges also work with other Next Generation AMETEK® mocon® permeation analyzers. These purpose-built cartridges increase accuracy, extend the range, or make it possible to test unique or difficult samples.
Performance Specifications Carrier Gas
Nitrogen/Hydrogen Mix (98%/2%)
Performance Specifications Controlled Relative Humidity Rh Testi
3 %
Performance Specifications Maximum Film Thickness
0 to 120 mil
Performance Specifications Test Gas
100% Oxygen (99.9% pure)
Performance Specifications Test Temperature Range
10 to 40 ºC
Performance Specifications Test Temperature Range Tolerance
0.2 ºC
Removable Cartridges Removable Cartridges
Easy sample prep on the bench-top.One button release and loading.Pneumatic clamping provides more repeatable results.Interchangeable cartridge options for different applications.
Specifications Barrier Level
Low to Ultra-High
Specifications Conformance Standards
Canadian Standards Association (CSA) Safety Compliance | European Conformity (CE) | Underwriters Laboratories (UL)
Specifications Connectivity
2 Universal Serial Bus (USB) Ports | Optional PERM-NET Lite⢠for Remote Monitoring | Port
Specifications Detection Range
0.0005 to 200 cm³/(m²·day)
Specifications Industry Standards
American Society for Testing and Materials (ASTM) D3985 | American Society for Testing and Materials (ASTM) F1307 | American Society for Testing and Materials (ASTM) F1927 | American Society for Testing and Materials (ASTM)F2622 | German Institute for Standardization (DIN) 53380-3 | International Organization for Standardization (ISO) CD 15105-2 | Japanese Industrial Standards (JIS) K-7126-B | National Standard (Recommended) (GB/T) 19789-2005 | National Standard (Recommended) (GB/T) 31354-2014
Technical Specifications Repeatability
0.0005 cm³/(m²·day) | 1 %
Technical Specifications Resolution At 50 Square Centimeter Cm
0.0001 cm³/(m²·day)
Technical Specifications Test Range For Normal Model 50 Cm
0.0005 to 200 cm³/(m²·day) | 0.00003 to 12.9 cm³/(100 in²·day) | 0.0000025 to 1.0 cm³/(pkg·day)
Technical Specifications Test Range For Reduced Area Cartridge 5
0.0044 to 1770 cm³/(m²·day) | 0.00027 to 114.0 cm³/(100 in²·day)
Touchscreen Interface Touchscreen Interface
Intuitive automated operation requires less training.Built in multi-level user management and data security.Event log and trouble shooting guide.Save on valuable lab space by eliminating need for PC.
Truseal Truseal
Gas flushing of sample mounting seal protects chamber integrity.Lowers background oxygen level reducing need to run individual zero.Shortened testing time increases throughput.More repeatable results.
Warranty Warranty
Full 100% parts and workmanship warranty for 12 months.Exclusive 4-year warranty on the Coulox sensor.
