AMETEK OX-TRAN®2/48 L Series Oxygen Permeation Analyzer
AMETEK OX-TRAN®2/48 L Series Oxygen Permeation Analyzer
SKU:PRO-c6c7a4
Elevate your ambient package testing with the AMETEK OX-TRAN®2/48 L Series Analyzer for precise oxygen permeation data, efficiency, and accuracy.
Regular price
$45,000.00
Regular price
Sale price
$45,000.00
Unit price
per
Initiate Order
AMETEK OX-TRAN®2/48 L Series Oxygen Permeation Analyzer
$45,000.00
Quantity: 1
Claim Your Seller Account
AMETEK OX-TRAN®2/48 L Series Oxygen Permeation Analyzer
$45,000.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

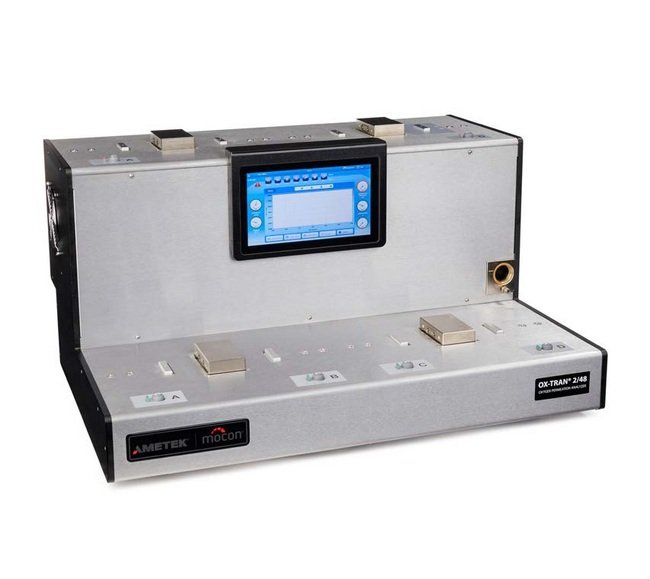

The AMETEK OX-TRAN®2/48 L Series Oxygen Permeation Analyzer elevates ambient package testing to unmatched levels of efficiency and accuracy. Featuring 8 cells for increased testing capacity, this analyzer streamlines package testing with its integrated functions, reducing overall test duration. Equipped with MOCON® Patented Coulox® sensor technology, it ensures precise oxygen permeation data while complying with ASTM, ISO, JIS, DIN standards. The analyzer's automated control features, coupled with its high testing capacity, make it the go-to choice for reliable oxygen permeation testing in various packaging applications.
Product Specifications
Additional Information Additional Information
The interchangeable test cartridges allow a wide variety of package sizes and types to be easily and accurately tested, many without the use party testing.A key element to knowing your productâs shelf life is to first understand the OTR permeability of your package. Whether in the development process or as a quality control verification, OTR measurement of final packages can now be done with ease and confidence.Testing For Pouches, Bottles, Trays, & More!Real World Testing Conditions The 2/48 is equipped to provide a range of controlled relative humidity on the carrier gas to replicate real world conditions. The RH control is available for both the conditioning cells and the exam cells. The instrument monitors the temperature and humidity of itâs surrounding environment, allowing it to match the carrier gas RH to the environment if desired.High Efficiency Package Testing: Parallel conditioning and testing cells increase throughputAutomated conditioning cycle reduces time to prepare samples for testing Simple and secure one-button pneumatic cartridge mounting Easy to use package test cartridges save time on sample preparation High-flow purge cycle is up to 20 times faster than traditional methodsQuick response Coulox sensor reduces testing time.
Features Features
Trusted Coulometric SensorMOCON®Patented Coulox® sensor is absolute and never needs calibrationLong Life Coulometric sensor with exclusive 4 -year warranty Intrinsic sensor fully complies with ASTM D3985 Short exam times reduce overall testing time to increase throughputRevolutionary Test CartridgesSimple tool-free package mounting saves time and reduces variabilityInterchangeable with other MOCON®permeation package testing analyzers and fixturesIntegrated TruSeal® to minimize background levels for more accurate resultsAutomated Control FeaturesFlow and RH on carrier gas for both conditioning and test cellsAuto-Test function automatically adjusts parameters to properly test unknown samples Test report printing and export Sensor protectionHigh Capacity TestingWith 8 cells, the OX-TRAN®2/48 can test more packages in less time compared to traditional test methods. The 4 smart conditioning cells prepare samples by bringing them to equilibrium in less time using high flow purge and integrated sensors to identify when the packages are ready for testing. The 4 examination cells provide accurate transmission results in less time with the rapid response of the Coulox® sensor. The parallel operation of the conditioning cells and exam cells focuses the utilization of the available sensor exam time to provide results in less time versus a sequential operation.Ambient Package Testing - Made EasyThe removable and interchangeable testing cartridges make sample preparation and testing simple and fast. For increased efficiency, multiple samples can be prepared ahead of time on the cartridges. The cartridges are mounted to the analyzer with the touch of a button.The simple user interface with automated controls makes testing easy with little training. In certain applications, starting a new test may be a simple button press after the sample is mounted. Common test methods can be stored and recalled for re-use. For new or unknown sample types, the Auto-Test function will automatically adjust the test parameters to provide optimized test results without having experience with the package.Coulox Sensor TechnologyUsing the patented coulometric sensor, the OX-TRAN®2/48 Permeation Analyzer provides the most precise and repeatable oxygen permeation data available on the market today. It is the basis for the ASTM D3985, requires no calibration and is the only sensor proven to meet its precision and bias requirements through independent third-party testing.
Note Note
We offer a variety of cartridge options designed to fit a wide range of package types.
Specifications Carrier Gas Rh Ranges
0 % | 30 to 90 %
Specifications Compensated To 100 O2
0.000125 to 5 cm³/(pkg·day) | 0.025 to 1000 cm³/(m²·day)
Specifications Conformance Standards
Carrier Safety Administration (CSA) Safety Compliance | European Conformity (CE) | Underwriters Laboratories (UL)
Specifications Connectivity
Ethernet port 2 USB ports Optional PermWare⢠for remote access and data storage
Specifications Depth
22.25 in | 56.5 cm
Specifications Height
16.25 in | 41.3 cm
Specifications Industry Standards
American Society for Testing and Materials (ASTM) D3985 | American Society for Testing and Materials (ASTM) F 2622 | American Society for Testing and Materials (ASTM) F1307 packages | American Society for Testing and Materials (ASTM) F1927 | German Institute for Standardization (DIN) 53380-3 | International Organization for Standardization (ISO) 15105-2 | Japanese Industrial Standards (JIS) 7126-B
Specifications Minimum Exam Time Atmospheric O2
30 min
Specifications Recommended Ambient Room Test Temperature Range
21 ºC
Specifications Recommended Ambient Room Test Temperature Range T
Ambient room, recommended range 21°C ± 2 ºC
Specifications Repeatability Atmospheric O2
± 0.0001 cm³/(pkg·day) | ± 296 cm³/(pkg·day)
Specifications Resolution Atmospheric O2
0.00001 cm³/(pkg·day)
Specifications Test Ranges Atmospheric O2
0.000025 to 1 cm³/(pkg·day) | 0.005 to 200 cm³/(m²·day)
Specifications Weight
50 kg | 110 lb
Specifications Width
32.5 in | 82.5 cm
