AMS Series 8 Inch Single-Sphere Connector with Class 150 Floating Flange
AMS Series 8 Inch Single-Sphere Connector with Class 150 Floating Flange
SKU:EXP-c69532
AMS Series 8 Inch Single-Sphere Connector with Class 150 Floating Flange, top-quality expansion joint meeting ISO 9001:2008 standards.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
AMS Series 8 Inch Single-Sphere Connector with Class 150 Floating Flange
$299.99
Quantity: 1
Claim Your Seller Account
AMS Series 8 Inch Single-Sphere Connector with Class 150 Floating Flange
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

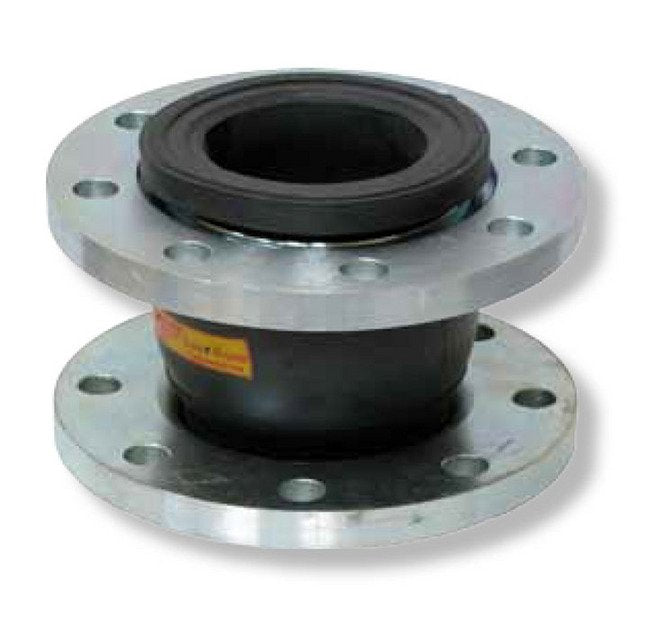

The AMS Series 8 Inch Single-Sphere Connector Fitting with Class 150 Floating Flange is a top-quality expansion joint designed by Sure Flow. With a size of 8 inches and operating pressures up to 135 psig, this connector fitting offers excellent axial compression and elongation capabilities, along with a transverse movement tolerance of ±1/2 inch. Its construction using CS Zinc Plated flanges, carbon steel wire, special synthetic rubber elastomer, and reinforcing fabric ensures durability and reliability. Certified to meet ISO 9001:2008 standards, this connector fitting is ideal for a wide range of industrial applications.
Product Specifications
Construction Construction
Name - FlangesMaterial - CS Zinc PlatedName - WireMaterial - Carbon Steel Wire StrandName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)

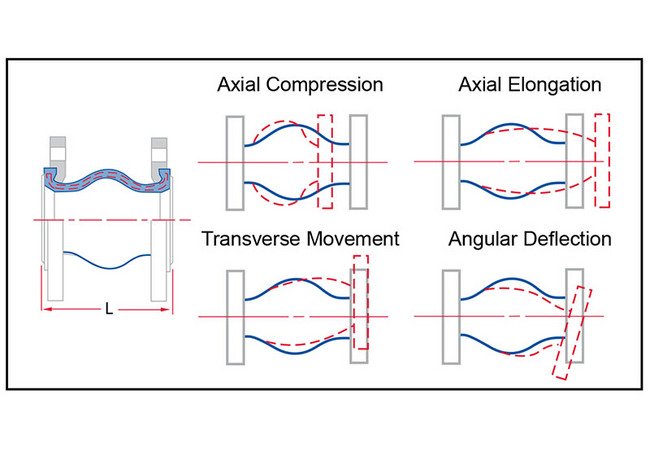

Dimensions Angular Deflection
15 º
Dimensions Axial Compression
5/8 in
Dimensions Axial Elongation
3/8 in
Dimensions Dimension L
6 in
Dimensions Prefix Size
0800
Dimensions Shipping Weight
50 lb
Dimensions Size
8 in
Dimensions Transverse Movement Tolerance
1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Operating Pressure
135 psig
Operating Pressures And Temperatures Temperature
-10 to 115 ºC | 14 to 240 ºF
Operating Pressures And Temperatures Vacuum Rating
26 inHg
Specifications Series
AMS
