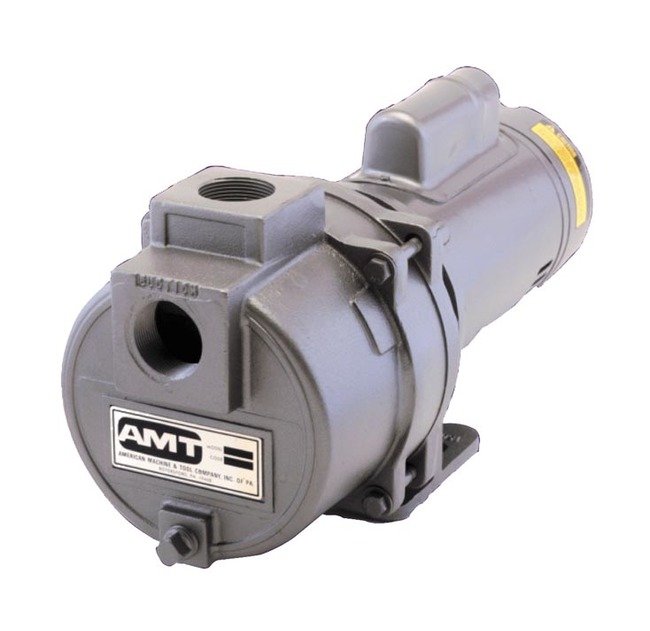

AMT 1-1/2" NPT Sprinkler/Booster Pump 3791-95
AMT 1-1/2" NPT Sprinkler/Booster Pump 3791-95
SKU:PRO-fb5aca
Efficient and durable 1-1/2" NPT Sprinkler/Booster Pump with self-priming feature up to 20 ft, ideal for institutional and commercial applications.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
AMT 1-1/2" NPT Sprinkler/Booster Pump 3791-95
$1,299.99
Quantity: 1
Claim Your Seller Account
AMT 1-1/2" NPT Sprinkler/Booster Pump 3791-95
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMT 1-1/2" NPT Sprinkler/Booster Pump 3791-95 is a reliable solution designed with 300 Series Investment Cast Stainless Steel impellers for enhanced efficiency and durability. Featuring a self-priming capability of up to 20 ft, this pump is equipped with a dual volute design to reduce motor load, ensuring optimal performance. With a maximum working pressure of 150 PSI and a maximum temperature of 180°F, this pump is suitable for a wide range of applications. The cast iron construction and Buna-N mechanical seal guarantee longevity and low maintenance, making it an ideal choice for both institutional and commercial use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications 0
Cast Iron Construction with 300 Series Investment Cast Stainless Steel ImpellersBuna-N Mechanical Seal and O-RingODP & TEFC Motors Available on 1-1/2" NPT Single-stage ModelsRemovable/Replaceable Volute/DiffuserSingle Stage Models Feature Removable Dual Volute DesignSelf-priming to 20 ft.Maximum Working Pressure to 150 PSIMaximum Temperature 180° F"Off-the-Shelf" Availability on Many Models

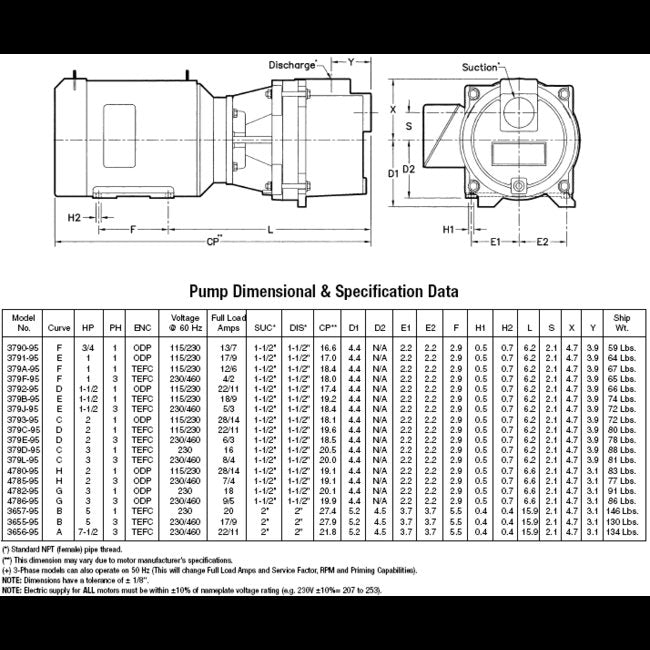

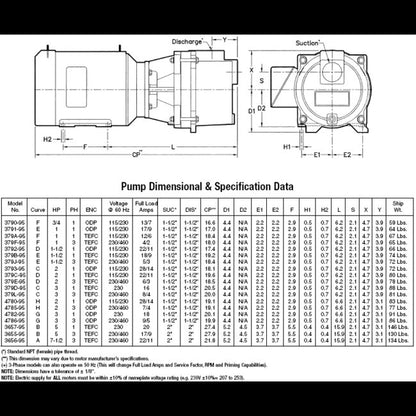

Specifications Curve
E
Specifications Customs Code
HTS Code 8413702005
Specifications Enclosure Rating
ODP
Specifications Full Load Current
17/9 A
Specifications Height
9 in | 231.14 mm
Specifications Inlet Size
1 1/2 in
Specifications Installed Options
Viton Flapper Valve, Mechanical Seal and O-Ring (365X-300-VO) | Viton Flapper Valve, Mechanical Seal and O-Ring (379X-300-VO)
Specifications Length
18 in | 464.82 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
157 gpm
Specifications Motor Frame
56J
Specifications Phase
1
Specifications Porting Position
1 1/2 in
Specifications Power
1 hp
Specifications Seal Material
Buna-N
Specifications Self Priming
20 ft
Specifications Sku
AT379195SP
Specifications Temperature
180 ºF
Specifications Voltage At 60 Hz
115/230 V
Specifications Weight
29.03 | 64 | 64 lbs
Specifications Width
8 in | 203.20 mm
