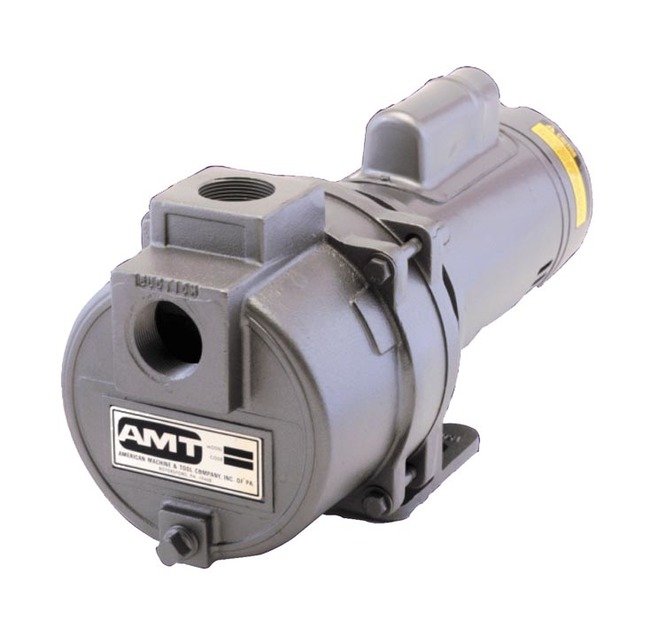

AMT 1-1/2" NPT Sprinkler & Booster Pump - Model 3657-95
AMT 1-1/2" NPT Sprinkler & Booster Pump - Model 3657-95
SKU:PRO-05d1e5
AMT 1-1/2" NPT Sprinkler & Booster Pump - Efficient, Reliable, Durable, Perfect for High-Pressure Applications
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
AMT 1-1/2" NPT Sprinkler & Booster Pump - Model 3657-95
$1,499.99
Quantity: 1
Claim Your Seller Account
AMT 1-1/2" NPT Sprinkler & Booster Pump - Model 3657-95
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMT 1-1/2" NPT Sprinkler/Booster Pump (Model 3657-95) is engineered with 300 Series Investment Cast Stainless Steel impellers for optimal efficiency and erosion resistance. Featuring self-priming capability up to 20 ft and a dual volute design to reduce motor load, this pump is ideal for applications requiring high pressure and reliability. With options for Buna-N or Viton seals, ODP or TEFC motors, and a durable cast iron construction, this pump ensures longevity and low maintenance. Designed for fast 24-hour availability and equipped with Type 21 mechanical seals, it meets institutional procurement standards for superior performance and longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications 0
Cast Iron Construction with 300 Series Investment Cast Stainless Steel ImpellersBuna-N Mechanical Seal and O-RingODP & TEFC Motors Available on 1-1/2" NPT Single-stage ModelsRemovable/Replaceable Volute/DiffuserSingle Stage Models Feature Removable Dual Volute DesignSelf-priming to 20 ft.Maximum Working Pressure to 150 PSIMaximum Temperature 180° F"Off-the-Shelf" Availability on Many Models

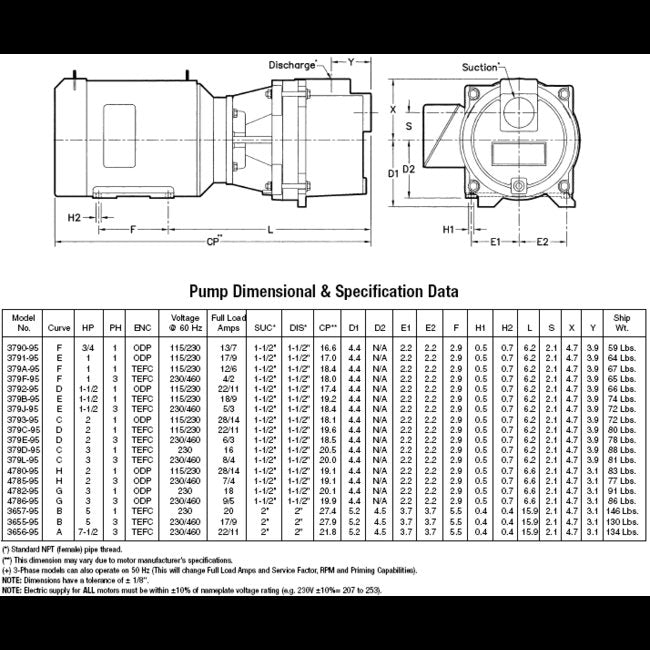

Specifications Curve
B
Specifications Customs Code
HTS Code 8413702015
Specifications Enclosure Rating
TEFC
Specifications Full Load Current
20 A
Specifications Height
10 in | 254.00 mm
Specifications Inlet Size
2 in
Specifications Installed Options
Viton Flapper Valve, Mechanical Seal and O-Ring (365X-300-VO) | Viton Flapper Valve, Mechanical Seal and O-Ring (379X-300-VO)
Specifications Length
27 in | 695.96 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
157 gpm
Specifications Motor Frame
184JM
Specifications Phase
1
Specifications Porting Position
2 in
Specifications Power
5 hp
Specifications Seal Material
Buna-N
Specifications Self Priming
20 ft
Specifications Sku
AT365795SP
Specifications Temperature
180 ºF
Specifications Voltage At 60 Hz
230 V
Specifications Weight
165 | 74.84 | 165 lbs
Specifications Width
13 in | 340.36 mm
