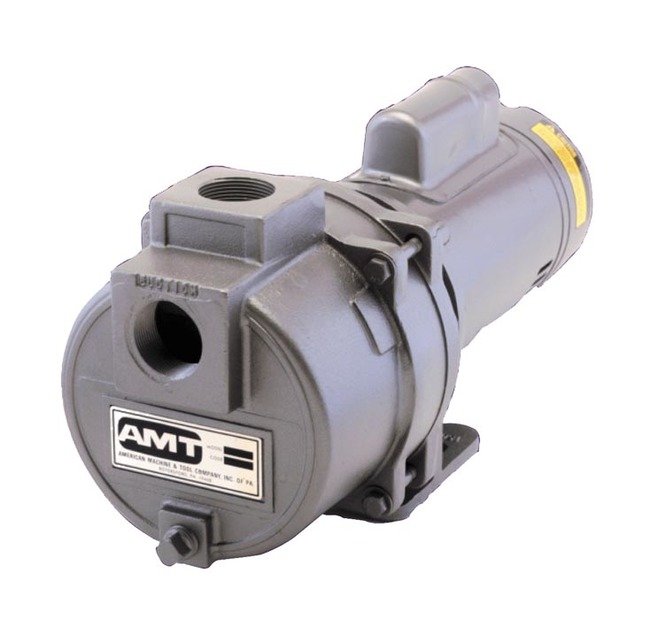

AMT 1-1/2" NPT Sprinkler/Booster Pump - Model 3792-95
AMT 1-1/2" NPT Sprinkler/Booster Pump - Model 3792-95
SKU:PRO-bb911e
AMT 1-1/2" NPT Sprinkler/Booster Pump - High efficiency, durable construction, self-priming, ideal for sprinkler systems.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
AMT 1-1/2" NPT Sprinkler/Booster Pump - Model 3792-95
$899.99
Quantity: 1
Claim Your Seller Account
AMT 1-1/2" NPT Sprinkler/Booster Pump - Model 3792-95
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMT 1-1/2" NPT Sprinkler/Booster Pump, Model 3792-95, features a durable Cast Iron Construction with 300 Series Investment Cast Stainless Steel Impellers, ensuring high efficiency and erosion resistance. This pump is self-priming to 20 ft with a dual volute design to reduce radial load on the motor. It comes with Type 21 mechanical seals capable of handling maximum working pressure up to 150 PSI. Available in various horsepower sizes and motor enclosures, this pump is designed for ease of maintenance and servicing, making it an ideal choice for sprinkler systems in both commercial and institutional settings.
Product Specifications
Specifications 0
Cast Iron Construction with 300 Series Investment Cast Stainless Steel ImpellersBuna-N Mechanical Seal and O-RingODP & TEFC Motors Available on 1-1/2" NPT Single-stage ModelsRemovable/Replaceable Volute/DiffuserSingle Stage Models Feature Removable Dual Volute DesignSelf-priming to 20 ft.Maximum Working Pressure to 150 PSIMaximum Temperature 180° F"Off-the-Shelf" Availability on Many Models

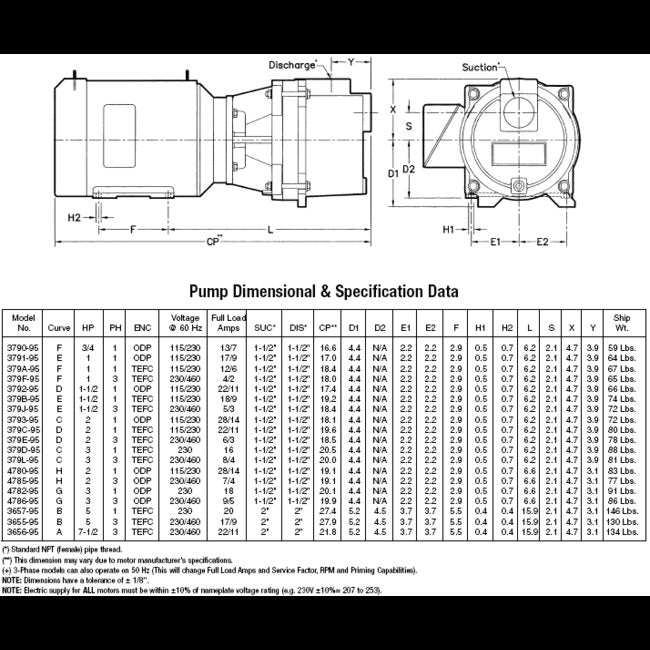

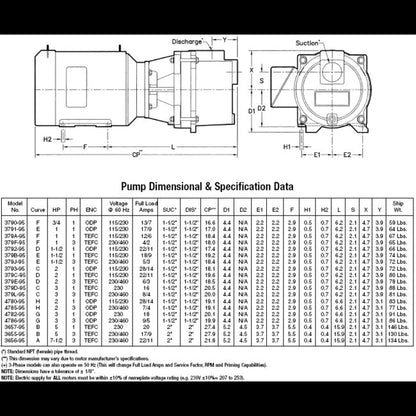

Specifications Curve
D
Specifications Customs Code
HTS Code 8413702005
Specifications Enclosure Rating
ODP
Specifications Full Load Current
22/11 A
Specifications Height
9 in | 231.14 mm
Specifications Inlet Size
1 1/2 in
Specifications Installed Options
Viton Flapper Valve, Mechanical Seal and O-Ring (365X-300-VO) | Viton Flapper Valve, Mechanical Seal and O-Ring (379X-300-VO)
Specifications Length
19 in | 477.52 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
157 gpm
Specifications Motor Frame
56J
Specifications Phase
1
Specifications Porting Position
1 1/2 in
Specifications Power
1 1/2 hp
Specifications Seal Material
Buna-N
Specifications Self Priming
20 ft
Specifications Sku
AT379295SP
Specifications Temperature
180 ºF
Specifications Voltage At 60 Hz
115/230 V
Specifications Weight
29.94 | 66 | 66 lbs
Specifications Width
8 in | 203.20 mm
