AMT 1-1/2" NPT Sprinkler/Booster Pump - Model 379L-95
AMT 1-1/2" NPT Sprinkler/Booster Pump - Model 379L-95
SKU:PRO-c100f0
High-efficiency AMT 1-1/2" NPT Sprinkler/Booster Pump - Ideal for institutional & consumer usage.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
AMT 1-1/2" NPT Sprinkler/Booster Pump - Model 379L-95
$899.99
Quantity: 1
Claim Your Seller Account
AMT 1-1/2" NPT Sprinkler/Booster Pump - Model 379L-95
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

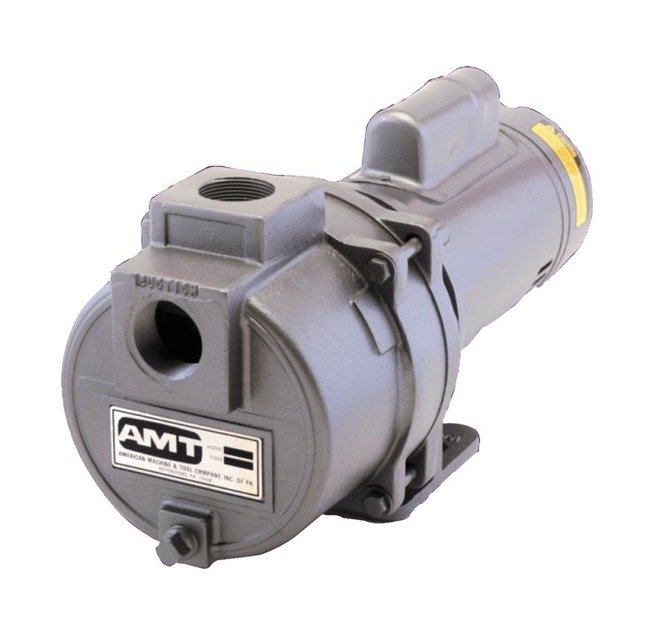

The AMT 379L-95 Sprinkler/Booster Pump is a reliable solution featuring a durable cast iron construction with 300 Series Investment Cast Stainless Steel impellers. Designed for high efficiency and erosion resistance, this pump offers self-priming up to 20 ft and a maximum working pressure of 150 PSI. With single or two-stage options, it delivers up to 157 GPM flow at 180°F temperature. Equipped with Buna-N mechanical seals, ODP & TEFC motor choices, and easy cleanout design, it ensures a hassle-free operation suitable for both institutional and consumer applications.

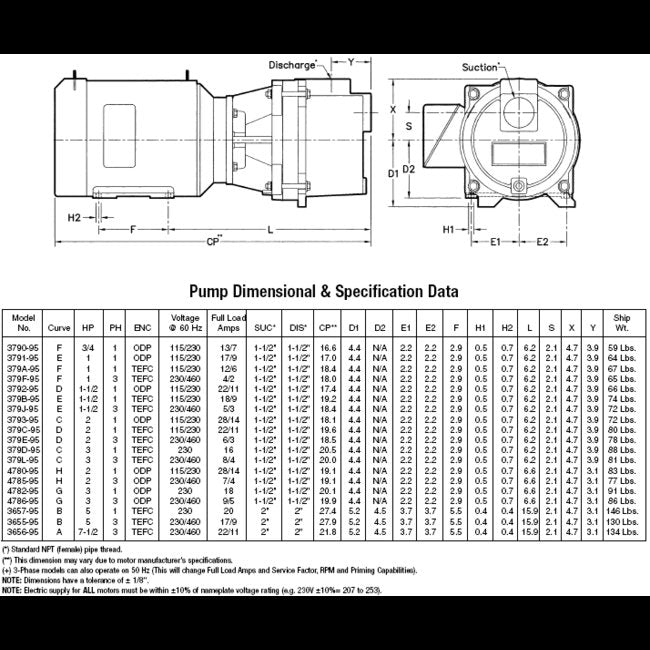

Product Specifications
Specifications 0
Cast Iron Construction with 300 Series Investment Cast Stainless Steel ImpellersBuna-N Mechanical Seal and O-RingODP & TEFC Motors Available on 1-1/2" NPT Single-stage ModelsRemovable/Replaceable Volute/DiffuserSingle Stage Models Feature Removable Dual Volute DesignSelf-priming to 20 ft.Maximum Working Pressure to 150 PSIMaximum Temperature 180° F"Off-the-Shelf" Availability on Many Models
Specifications Curve
C
Specifications Customs Code
HTS Code 8413702005
Specifications Enclosure Rating
TEFC
Specifications Full Load Current
8/4 A
Specifications Height
9 in | 231.14 mm
Specifications Inlet Size
1 1/2 in
Specifications Installed Options
Viton Flapper Valve, Mechanical Seal and O-Ring (365X-300-VO) | Viton Flapper Valve, Mechanical Seal and O-Ring (379X-300-VO)
Specifications Length
20 in | 502.92 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
157 gpm
Specifications Motor Frame
56J
Specifications Phase
3
Specifications Porting Position
1 1/2 in
Specifications Power
3 hp
Specifications Seal Material
Buna-N
Specifications Self Priming
20 ft
Specifications Sku
AT379L95SP
Specifications Temperature
180 ºF
Specifications Voltage At 60 Hz
230/460 V
Specifications Weight
36.74 | 81 | 81 lbs
Specifications Width
9 in | 236.22 mm
