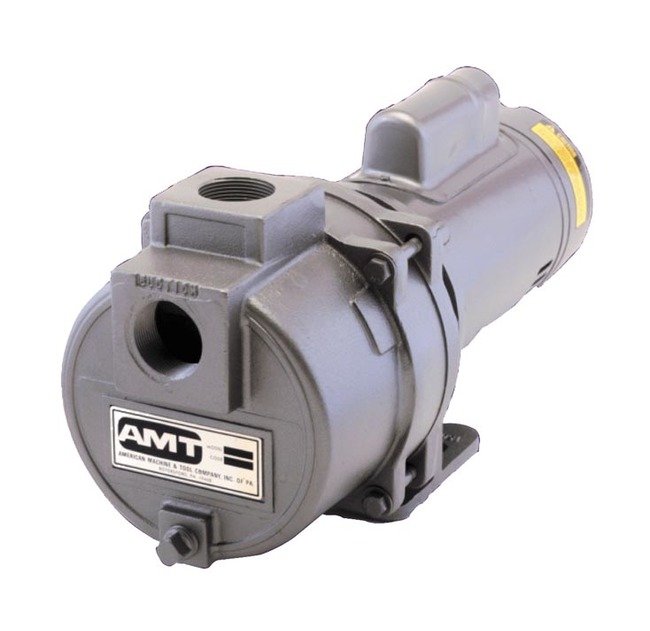

AMT 1-1/2" NPT Sprinkler/Booster Pump - Model 4786-95
AMT 1-1/2" NPT Sprinkler/Booster Pump - Model 4786-95
SKU:PRO-e65709
Efficient and durable AMT 1-1/2" NPT Sprinkler/Booster Pump for reliable water supply applications.
Regular price
$1,129.99
Regular price
Sale price
$1,129.99
Unit price
per
Initiate Order
AMT 1-1/2" NPT Sprinkler/Booster Pump - Model 4786-95
$1,129.99
Quantity: 1
Claim Your Seller Account
AMT 1-1/2" NPT Sprinkler/Booster Pump - Model 4786-95
$1,129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMT 1-1/2" NPT Sprinkler/Booster Pump (Model 4786-95) is designed for efficiency and durability in water supply applications. Featuring 300 Series Investment Cast Stainless Steel impellers, this pump is resistant to abrasive particles, ensuring longevity in operation. With a self-priming capability of up to 20 ft, dual volute design to reduce motor load, and a built-in check valve for quick priming, this pump offers reliability and ease of maintenance. With options for ODP or TEFC motors and various horsepower sizes, it meets the needs of both single and multi-sprinkler head setups.
Product Specifications
Specifications 0
Cast Iron Construction with 300 Series Investment Cast Stainless Steel ImpellersBuna-N Mechanical Seal and O-RingODP & TEFC Motors Available on 1-1/2" NPT Single-stage ModelsRemovable/Replaceable Volute/DiffuserSingle Stage Models Feature Removable Dual Volute DesignSelf-priming to 20 ft.Maximum Working Pressure to 150 PSIMaximum Temperature 180° F"Off-the-Shelf" Availability on Many Models

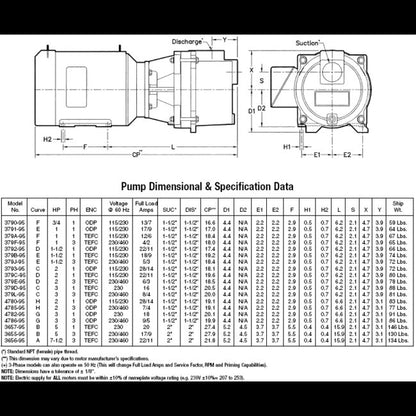

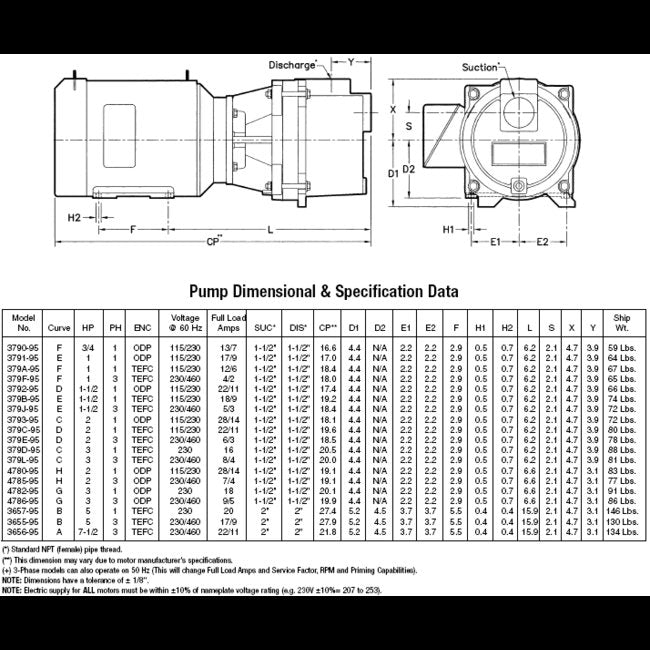

Specifications Curve
G
Specifications Customs Code
HTS Code 8413702005
Specifications Enclosure Rating
ODP
Specifications Full Load Current
9/5 A
Specifications Height
9 in | 231.14 mm
Specifications Inlet Size
1 1/2 in
Specifications Installed Options
Viton Flapper Valve, Mechanical Seal and O-Ring (365X-300-VO) | Viton Flapper Valve, Mechanical Seal and O-Ring (379X-300-VO)
Specifications Length
20 in | 505.46 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
157 gpm
Specifications Motor Frame
56C
Specifications Phase
3
Specifications Porting Position
1 1/2 in
Specifications Power
3 hp
Specifications Seal Material
Buna-N
Specifications Self Priming
20 ft
Specifications Sku
AT478695SP
Specifications Temperature
180 ºF
Specifications Voltage At 60 Hz
230/460 V
Specifications Weight
39.01 | 86 | 86 lbs
Specifications Width
8 in | 203.20 mm
