AMT 1-1/2" NPT Stainless Steel Sprinkler/Booster Pump
AMT 1-1/2" NPT Stainless Steel Sprinkler/Booster Pump
SKU:PRO-6f2385
High-performance AMT 1-1/2" NPT Stainless Steel Sprinkler/Booster Pump with 300 Series Investment Cast Stainless Steel impellers, self-priming to 20 ft, and 150 PSI maximum working pressure.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
AMT 1-1/2" NPT Stainless Steel Sprinkler/Booster Pump
$799.99
Quantity: 1
Claim Your Seller Account
AMT 1-1/2" NPT Stainless Steel Sprinkler/Booster Pump
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

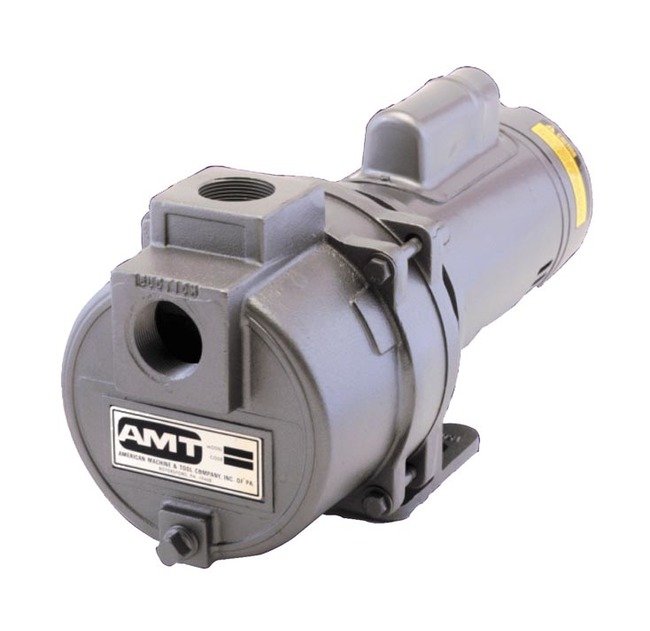

The AMT 1-1/2" NPT Stainless Steel Sprinkler/Booster Pump is engineered for high efficiency and durability. Featuring 300 Series Investment Cast Stainless Steel impellers, it resists erosion from abrasive particles. With self-priming capability to 20 ft and dual volute design for reduced motor load, this pump ensures fast priming and low maintenance. It boasts a maximum working pressure of 150 PSI, maximum temperature of 180°F, and a flow rate of 157 GPM. Ideal for non-flammable liquids, this pump comes with options for ODP & TEFC motors, providing reliability and performance in diverse applications.
Product Specifications
Specifications 0
Cast Iron Construction with 300 Series Investment Cast Stainless Steel ImpellersBuna-N Mechanical Seal and O-RingODP & TEFC Motors Available on 1-1/2" NPT Single-stage ModelsRemovable/Replaceable Volute/DiffuserSingle Stage Models Feature Removable Dual Volute DesignSelf-priming to 20 ft.Maximum Working Pressure to 150 PSIMaximum Temperature 180° F"Off-the-Shelf" Availability on Many Models
Specifications Curve
C
Specifications Customs Code
HTS Code 8413702005
Specifications Enclosure Rating
ODP
Specifications Full Load Current
28/14 A
Specifications Height
9 in | 231.14 mm
Specifications Inlet Size
1 1/2 in
Specifications Installed Options
Viton Flapper Valve, Mechanical Seal and O-Ring (365X-300-VO) | Viton Flapper Valve, Mechanical Seal and O-Ring (379X-300-VO)
Specifications Length
19 in | 477.52 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
157 gpm
Specifications Motor Frame
56J
Specifications Phase
1
Specifications Porting Position
1 1/2 in
Specifications Power
2 hp
Specifications Seal Material
Buna-N
Specifications Self Priming
20 ft
Specifications Sku
AT379395SP
Specifications Temperature
180 ºF
Specifications Voltage At 60 Hz
115/230 V
Specifications Weight
32.66 | 72 | 72 lbs
Specifications Width
8 in | 203.20 mm
