AMT 1-1/2" NPT Stainless Steel Sprinkler/Booster Pump
AMT 1-1/2" NPT Stainless Steel Sprinkler/Booster Pump
SKU:PRO-f8e320
High-efficiency stainless steel pump with self-priming feature, ideal for institutional use.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
AMT 1-1/2" NPT Stainless Steel Sprinkler/Booster Pump
$799.99
Quantity: 1
Claim Your Seller Account
AMT 1-1/2" NPT Stainless Steel Sprinkler/Booster Pump
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMT 1-1/2" NPT Stainless Steel Sprinkler/Booster Pump is a high-efficiency pump with 300 Series Investment Cast Stainless Steel impellers, ideal for erosion resistance and durability. Featuring self-priming up to 20 ft, a dual volute design to reduce motor load, and a built-in check valve for fast priming, this pump ensures reliable operation. With options for ODP or TEFC motors, maximum pressure of 150 PSI, and superior construction materials, it meets the demanding needs of institutional applications.
Product Specifications
Specifications 0
Cast Iron Construction with 300 Series Investment Cast Stainless Steel ImpellersBuna-N Mechanical Seal and O-RingODP & TEFC Motors Available on 1-1/2" NPT Single-stage ModelsRemovable/Replaceable Volute/DiffuserSingle Stage Models Feature Removable Dual Volute DesignSelf-priming to 20 ft.Maximum Working Pressure to 150 PSIMaximum Temperature 180° F"Off-the-Shelf" Availability on Many Models

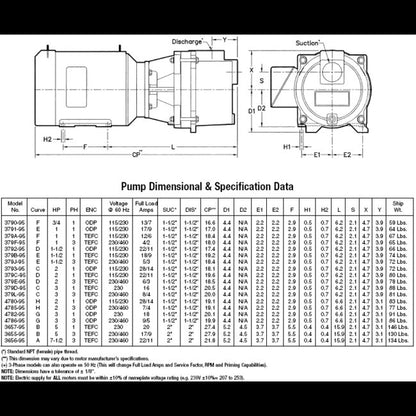

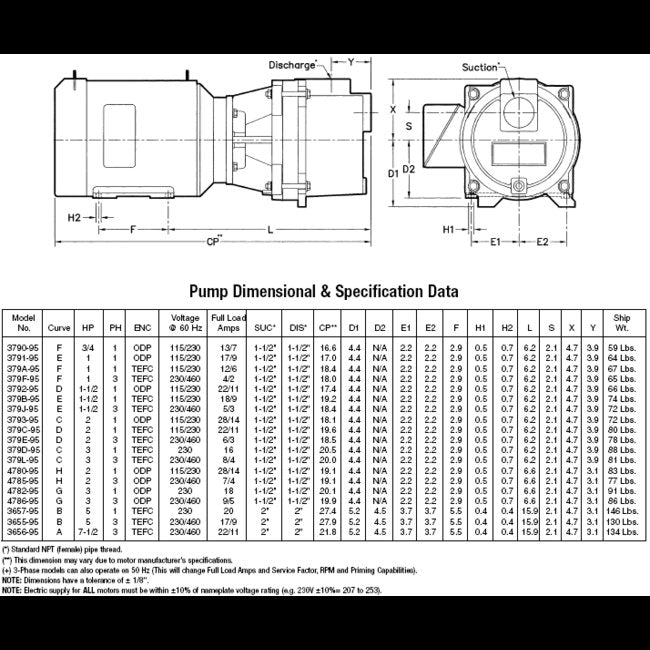

Specifications Curve
F
Specifications Customs Code
HTS Code 8413702005
Specifications Enclosure Rating
TEFC
Specifications Full Load Current
4/2 A
Specifications Height
9 in | 231.14 mm
Specifications Inlet Size
1 1/2 in
Specifications Installed Options
Viton Flapper Valve, Mechanical Seal and O-Ring (365X-300-VO) | Viton Flapper Valve, Mechanical Seal and O-Ring (379X-300-VO)
Specifications Length
17 in | 434.34 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
157 gpm
Specifications Motor Frame
56J
Specifications Phase
3
Specifications Porting Position
1 1/2 in
Specifications Power
1 hp
Specifications Seal Material
Buna-N
Specifications Self Priming
20 ft
Specifications Sku
AT379F95SP
Specifications Temperature
180 ºF
Specifications Voltage At 60 Hz
230/460 V
Specifications Weight
29.48 | 65 | 65 lbs
Specifications Width
17 in | 434.34 mm
