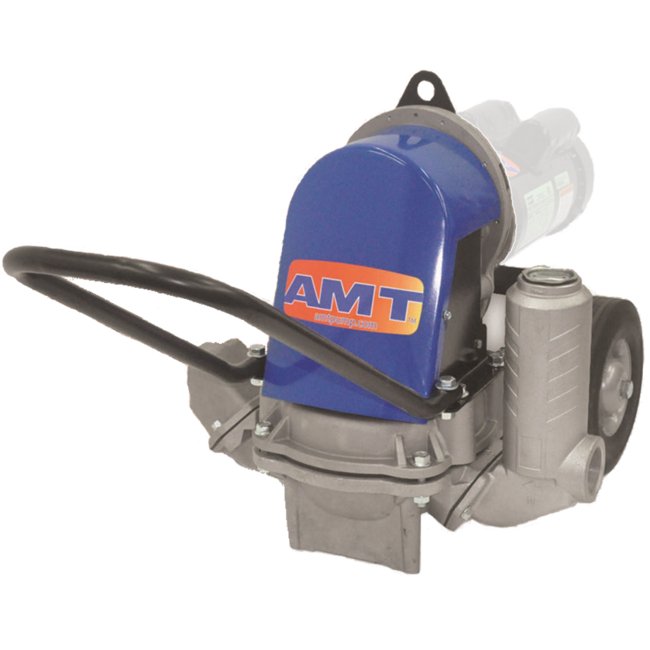

AMT 1.5 HP 2" NPT Self-Priming Diaphragm Pump Kit

Name: AMT 1.5 HP 2" NPT Self-Priming Diaphragm Pump Kit
Brand: Springer Pumps, LLC
SKU: PRO-31f3a7
Price: 1299.99 USD
Availability: OutOfStock

SKU:PRO-31f3a7

Efficiently pump mud, slurry, and sewage with the AMT 1.5 HP 2" NPT Self-Priming Diaphragm Pump Kit. Maximum 1-5/8" solids handling, self-priming up to 25 ft. lift, 90° rotatable base, and up to 90 GPM delivery.

$1,299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The AMT 1.5 HP 2" NPT Self-Priming Diaphragm Pump Kit is a versatile solution for pumping mud, slurry, and sewage efficiently. With a maximum solids handling capability of 1-5/8", this pump is designed for durability and easy maintenance. Featuring a self-priming capacity up to 25 ft. lift, a 90° rotatable base, and a thermoplastic Santoprene diaphragm, this pump delivers up to 90 GPM. Built with sand-cast aluminum construction and a modular design, it offers portability and reliability for various applications.

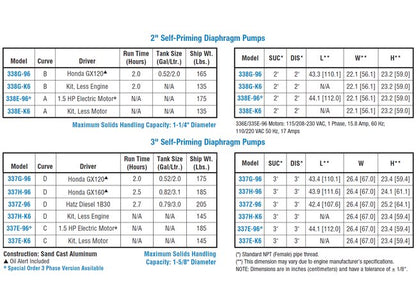

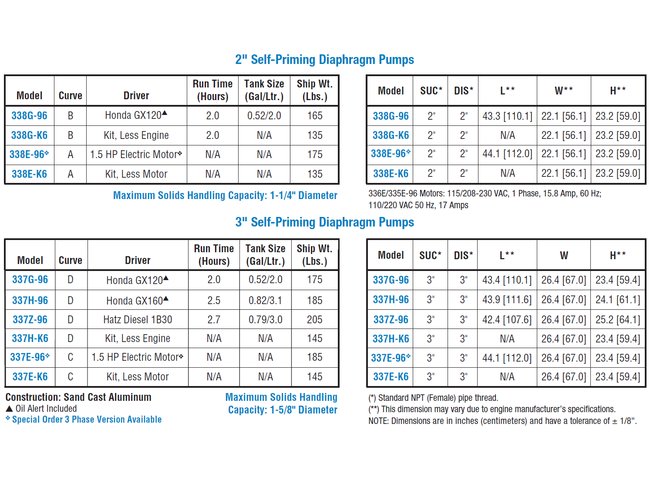

Product Specifications

Curves 0

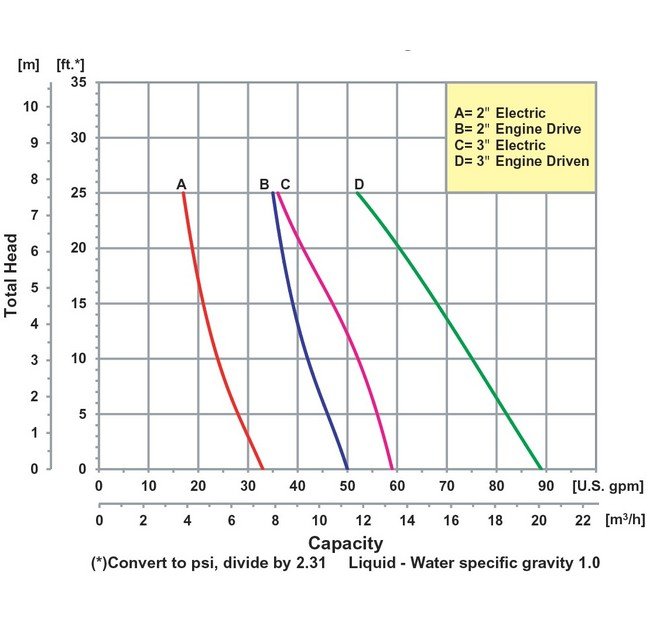

Performance Curves

Specifications 0

Sand Cast Aluminum Construction for Portability and DurabilityModular Component Design Permits Easy Maintenance and CleanoutMaximum Solids Handling up to 1-5/8 InSelf-Priming to 25 Ft. Lift90Â° Rotatable Base on All ModelsThermoplastic Santoprene DiaphragmDelivers up to 90 GPM

Specifications Customs Code

HTS Code 8413500050

Specifications Driver

56C Kit, Less Motor

Specifications Height

23 in | 589.28 mm

Specifications Inlet Size

2" FNPT

Specifications Manufacturer

American Machine and Tool Company

Specifications Motor Frame

56C

Specifications Porting Position

2" FNPT

Specifications Power

1.5 hp

Specifications Sku

AT338EK6SP

Specifications Weight

43.09 Kilogram | 43.09 kg | 95 lbs

Specifications Width

22 Inch | 22 in | 0.5613 m | 561.34 mm

AMT 1.5 HP 2" NPT Self-Priming Diaphragm Pump Kit
