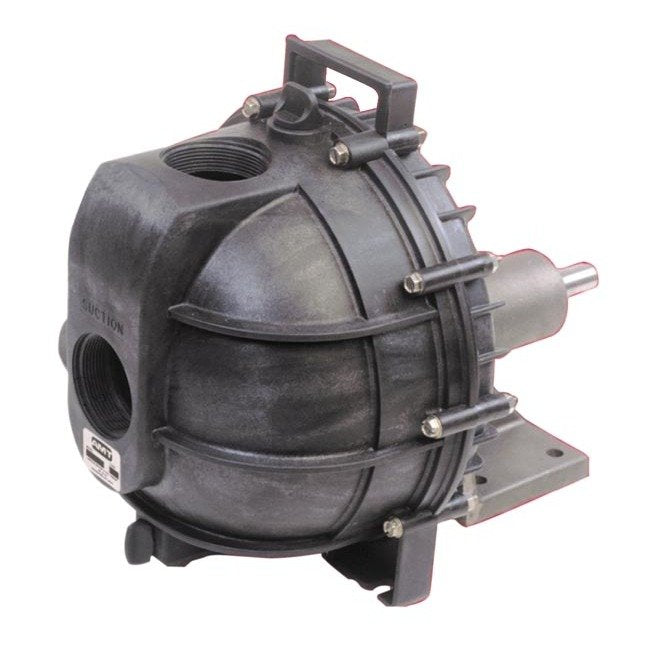

AMT 2" Solids Handling Pedestal Pump
AMT 2" Solids Handling Pedestal Pump
SKU:PRO-087149
AMT 2" Solids Handling Pedestal Pump - Durable cast iron construction, self-priming, ideal for water, wastewater, and utility applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
AMT 2" Solids Handling Pedestal Pump
$899.99
Quantity: 1
Claim Your Seller Account
AMT 2" Solids Handling Pedestal Pump
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMT 2" Solids Handling Pedestal Pump, manufactured by American Machine and Tool Company, is a robust solution for water, wastewater, sump, and utility applications. Constructed with durable cast iron, this self-priming pump features a 2" NPT suction and discharge ports, and can handle up to 3/8" diameter solids. With a maximum working pressure of 75 PSI and self-priming capability up to 20 ft, this pump is designed for heavy-duty use. The pump comes with a Buna-N flapper valve and O-rings, ensuring efficient operation at temperatures up to 180°F. The precision sealed ball bearings and CNC machined shaft add to its reliability and performance.
Product Specifications
Specifications 0
Cast Iron ConstructionBuna-N flapper valve and O-rings2" NPT Suction & discharge portsMaximum Working Pressure 75 PSIMaximum Temperature 180° FSelf-priming to 20 ft3/8" Diameter solids handling capability on 3160-991" Diameter solids handling capability on 3931-99Heavy duty cast iron bearing housing containing(2) precision sealed ball bearings3/4" Diameter CNC machined shaft1 3/8" x 3/16" x 3/32" keyway

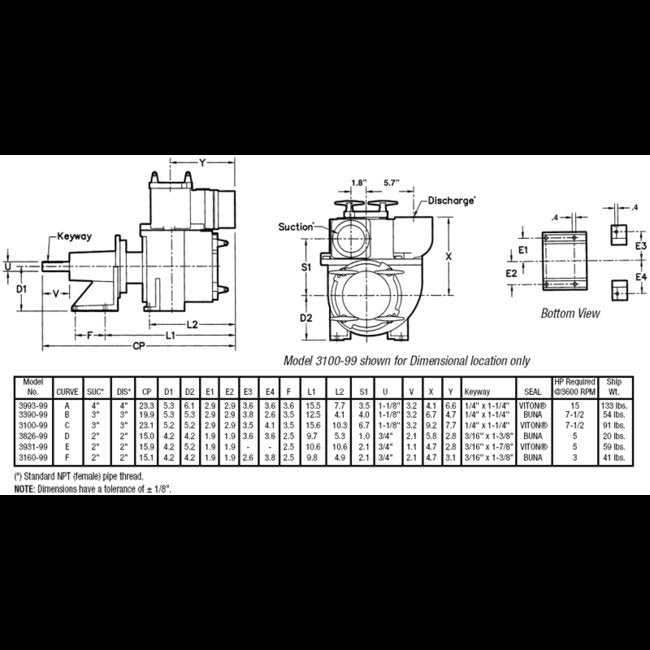

Specifications Curve
F
Specifications Customs Code
HTS Code 8413702015
Specifications Driver
Pedestal
Specifications Height
9 in | 226.06 mm
Specifications Inlet Size
2 in
Specifications Installed Options
Silicon Carbide/Viton Seal, Flapper and Gasket Installed (339X-300-VS) | Silicon Carbide/Viton Seal, O-Ring and Flapper Installed (316X-300-VS)
Specifications Length
15 in | 383.54 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Porting Position
2 in
Specifications Power Required At 3600 Rpm
3 hp
Specifications Pump Type
Solids Handling
Specifications Seal Material
Buna-N
Specifications Sku
AT316099SP
Specifications Temperature
180 ºF
Specifications Weight
18.60 | 41 | 41 lbs
Specifications Width
8 in | 203.20 mm
