AMT 3156-95 Heavy Duty Straight Centrifugal Pump
AMT 3156-95 Heavy Duty Straight Centrifugal Pump
SKU:PRO-cc929b
AMT 3156-95 Heavy Duty Straight Centrifugal Pump is ideal for industrial applications, featuring stainless steel/cast iron construction and self-cleaning impeller.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
AMT 3156-95 Heavy Duty Straight Centrifugal Pump
$1,899.99
Quantity: 1
Claim Your Seller Account
AMT 3156-95 Heavy Duty Straight Centrifugal Pump
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

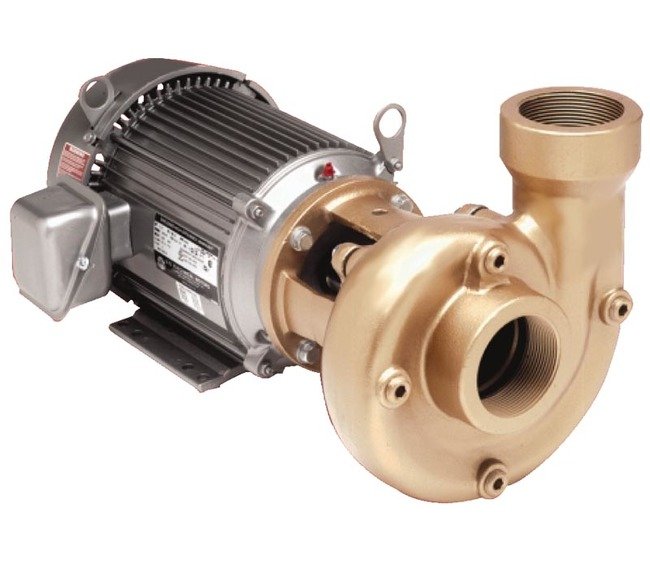

The AMT 3156-95 Heavy Duty Straight Centrifugal Pump is designed for a wide range of industrial applications including liquid and chemical transfer, heating and cooling, booster services, and more. Constructed with stainless steel, naval bronze or cast iron, it offers superior resistance to rust and corrosion. The self-cleaning impeller is ideal for handling both clean and muddy liquids. With adjustable discharge positions, Type 21 mechanical seal, and optional Silicon Carbide seals, this pump ensures reliable performance, low maintenance, and cost-effectiveness. It meets institutional procurement standards for durability and efficiency.
Product Specifications
Specifications 0
Stainless Steel, Naval Bronze & Cast Iron ConstructionBuna-N or Viton® Mechanical Seal and O-Rings depending on Models, Optional Silicon Carbide AvailableStainless Steel HardwareNEMA TEFC Single and Three Phase Motors Depending on the ModelStainless Steel Motor ShaftOptional Mounting Base Available for 182/184/215 JM FramesSelf-cleaning ImpellerDischarge Rotates in 90º IncrementsMaximum Working Pressure to 150 PSIMax. Temperature 200ºF (Viton®), 180ºF (Buna-N)Optional Seal Wash Port and Hose is Available on All Models"Off-the-Shelf" Availability for Many ModelsPedestal Version Models Available for Frame Models 145/182/184JM
Specifications Curve
H
Specifications Customs Code
HTS Code 8413702005
Specifications Enclosure Rating
TEFC
Specifications Full Load Current
22/11 A
Specifications Height
10 in | 243.84 mm
Specifications Inlet Size
2 in
Specifications Installed Options
Seal Wash Installed: 1/8" NPT access and rubber hose w/ 1/2" NPT male thread end (A220-90) | Silicon Carbide/Viton Seal Installed (315X-302-VS)
Specifications Length
17 in | 441.96 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
500 gpm
Specifications Moc
Cast Iron
Specifications Model
3156-95
Specifications Motor Frame
56J
Specifications Phase
1
Specifications Porting Position
1 1/2 in
Specifications Power
2 hp
Specifications Seal Material
Buna-N
Specifications Sku
AT315695SP
Specifications Temperature
180 ºF
Specifications Voltage At 60 Hz
115/230 V
Specifications Weight
35.38 | 78 | 65 lbs
Specifications Width
11 in | 269.24 mm
