AMT 3156-98 Stainless Steel Centrifugal Pump
AMT 3156-98 Stainless Steel Centrifugal Pump
SKU:PRO-ab6d55
AMT 3156-98 Heavy Duty Straight Centrifugal Pump for industrial liquid transfer. Stainless Steel construction, self-cleaning impeller, high pressure & temp.
Regular price
$1,350.00
Regular price
Sale price
$1,350.00
Unit price
per
Initiate Order
AMT 3156-98 Stainless Steel Centrifugal Pump
$1,350.00
Quantity: 1
Claim Your Seller Account
AMT 3156-98 Stainless Steel Centrifugal Pump
$1,350.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMT 3156-98 Heavy Duty Straight Centrifugal Pump is designed for industrial applications requiring liquid and chemical transfer, heating, cooling, and boosting services. Constructed with Stainless Steel, Naval Bronze, or Cast Iron, it offers corrosion resistance and durability. The self-cleaning impeller can handle muddy fluids effectively. With a maximum working pressure of 150 PSI and a temperature range up to 200°F, this pump ensures reliable performance. Equipped with NEMA TEFC motors and adjustable discharge positions, it provides versatility and efficiency for various applications.
Product Specifications
Specifications 0
Stainless Steel, Naval Bronze & Cast Iron ConstructionBuna-N or Viton® Mechanical Seal and O-Rings depending on Models, Optional Silicon Carbide AvailableStainless Steel HardwareNEMA TEFC Single and Three Phase Motors Depending on the ModelStainless Steel Motor ShaftOptional Mounting Base Available for 182/184/215 JM FramesSelf-cleaning ImpellerDischarge Rotates in 90º IncrementsMaximum Working Pressure to 150 PSIMax. Temperature 200ºF (Viton®), 180ºF (Buna-N)Optional Seal Wash Port and Hose is Available on All Models"Off-the-Shelf" Availability for Many ModelsPedestal Version Models Available for Frame Models 145/182/184JM

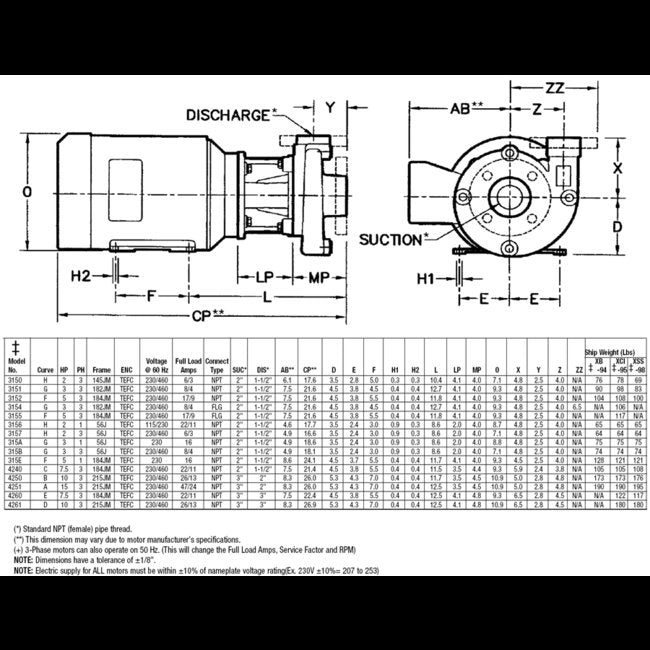

Specifications Curve
H
Specifications Customs Code
HTS Code 8413702005
Specifications Enclosure Rating
TEFC
Specifications Full Load Current
22/11 A
Specifications Height
10 in | 243.84 mm
Specifications Inlet Size
2 in
Specifications Installed Options
Seal Wash Installed: 1/8" NPT access and rubber hose w/ 1/2" NPT male thread end (A220-90) | Silicon Carbide/Viton Seal Installed (315X-300-VS) | Silicon Carbide/Viton Seal Installed (424X-300-VS) | Silicon Carbide/Viton Seal Installed (425X-300-VS) | Silicon Carbide/Viton Seal Installed (426X-300-VS)
Specifications Length
17 in | 441.96 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
500 gpm
Specifications Moc
Stainless Steel
Specifications Model
3156-98
Specifications Motor Frame
56J
Specifications Phase
1
Specifications Porting Position
1 1/2 in
Specifications Power
2 hp
Specifications Seal Material
Viton®
Specifications Sku
AT315698SP
Specifications Temperature
200 ºF
Specifications Voltage At 60 Hz
115/230 V
Specifications Weight
29.48 | 65 | 65 lbs
Specifications Width
11 in | 269.24 mm
