AMT 315A-98 Heavy Duty Straight Centrifugal Pump
AMT 315A-98 Heavy Duty Straight Centrifugal Pump
SKU:PRO-6aa60b
Reliable and durable Heavy Duty Straight Centrifugal Pump for industrial applications, featuring stainless steel construction, self-cleaning impeller, and Type 21 mechanical seal.
Regular price
$2,279.99
Regular price
Sale price
$2,279.99
Unit price
per
Initiate Order
AMT 315A-98 Heavy Duty Straight Centrifugal Pump
$2,279.99
Quantity: 1
Claim Your Seller Account
AMT 315A-98 Heavy Duty Straight Centrifugal Pump
$2,279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

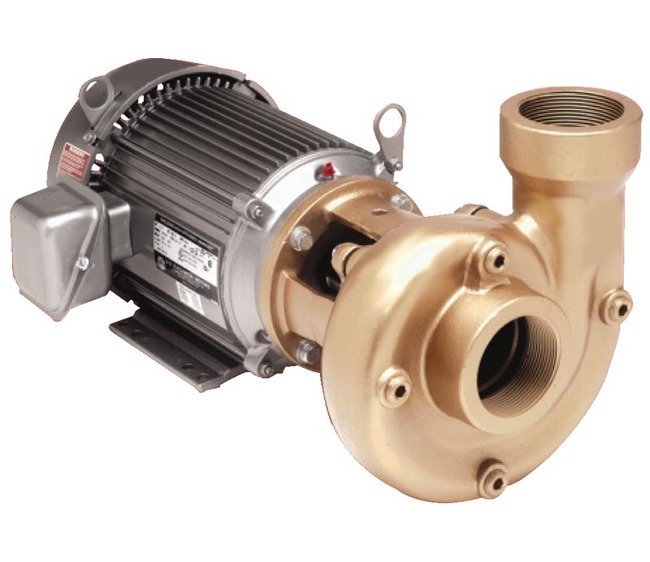

The AMT 315A-98 Heavy Duty Straight Centrifugal Pump is an ideal solution for industrial applications requiring liquid and chemical transfer, heating and cooling, and booster services. Constructed with Stainless Steel, Naval Bronze & Cast Iron, this pump ensures durability and resistance to rust and corrosion. It features a self-cleaning impeller, adjustable discharge position, Type 21 mechanical seal, and Totally Enclosed Fan Cooled motors. With a maximum working pressure of 150 PSI and a max temperature of 200°F, this pump guarantees reliability, cost-effectiveness, and low maintenance.
Product Specifications
Specifications 0
Stainless Steel, Naval Bronze & Cast Iron ConstructionBuna-N or Viton® Mechanical Seal and O-Rings depending on Models, Optional Silicon Carbide AvailableStainless Steel HardwareNEMA TEFC Single and Three Phase Motors Depending on the ModelStainless Steel Motor ShaftOptional Mounting Base Available for 182/184/215 JM FramesSelf-cleaning ImpellerDischarge Rotates in 90º IncrementsMaximum Working Pressure to 150 PSIMax. Temperature 200ºF (Viton®), 180ºF (Buna-N)Optional Seal Wash Port and Hose is Available on All Models"Off-the-Shelf" Availability for Many ModelsPedestal Version Models Available for Frame Models 145/182/184JM
Specifications Curve
G
Specifications Customs Code
HTS Code 8413702005
Specifications Enclosure Rating
TEFC
Specifications Full Load Current
16 A
Specifications Height
10 in | 243.84 mm
Specifications Inlet Size
2 in
Specifications Installed Options
Seal Wash Installed: 1/8" NPT access and rubber hose w/ 1/2" NPT male thread end (A220-90) | Silicon Carbide/Viton Seal Installed (315X-300-VS) | Silicon Carbide/Viton Seal Installed (424X-300-VS) | Silicon Carbide/Viton Seal Installed (425X-300-VS) | Silicon Carbide/Viton Seal Installed (426X-300-VS)
Specifications Length
18 in | 454.66 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
500 gpm
Specifications Moc
Stainless Steel
Specifications Model
315A-98
Specifications Motor Frame
56J
Specifications Phase
1
Specifications Porting Position
1 1/2 in
Specifications Power
3 hp
Specifications Seal Material
Viton®
Specifications Sku
AT315A98SP
Specifications Temperature
200 ºF
Specifications Voltage At 60 Hz
230 V
Specifications Weight
34.02 | 75 | 75 lbs
Specifications Width
11 in | 269.24 mm
