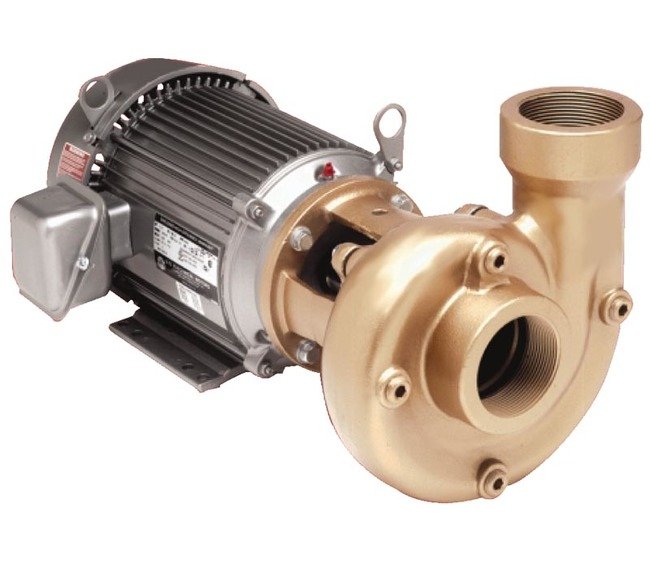

AMT 315E-98 Heavy Duty Straight Centrifugal Pump
AMT 315E-98 Heavy Duty Straight Centrifugal Pump
SKU:PRO-cc3f58
Versatile and durable Heavy Duty Straight Centrifugal Pump for industrial applications.
Regular price
$1,249.99
Regular price
Sale price
$1,249.99
Unit price
per
Initiate Order
AMT 315E-98 Heavy Duty Straight Centrifugal Pump
$1,249.99
Quantity: 1
Claim Your Seller Account
AMT 315E-98 Heavy Duty Straight Centrifugal Pump
$1,249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMT 315E-98 Heavy Duty Straight Centrifugal Pump is designed for a wide range of industrial applications, offering exceptional performance in liquid and chemical transfer, heating and cooling systems, recirculation tasks, booster services, and more. Constructed from Stainless Steel, Naval Bronze, and Cast Iron, this pump is corrosion-resistant, ensuring durability in challenging environments. Equipped with a self-cleaning semi-open impeller, it efficiently handles both clean and muddy liquids. The pump's adjustable discharge position, Type 21 mechanical seal, and TEFC motors make it a reliable, low-maintenance solution for various settings.
Product Specifications
Specifications 0
Stainless Steel, Naval Bronze & Cast Iron ConstructionBuna-N or Viton® Mechanical Seal and O-Rings depending on Models, Optional Silicon Carbide AvailableStainless Steel HardwareNEMA TEFC Single and Three Phase Motors Depending on the ModelStainless Steel Motor ShaftOptional Mounting Base Available for 182/184/215 JM FramesSelf-cleaning ImpellerDischarge Rotates in 90º IncrementsMaximum Working Pressure to 150 PSIMax. Temperature 200ºF (Viton®), 180ºF (Buna-N)Optional Seal Wash Port and Hose is Available on All Models"Off-the-Shelf" Availability for Many ModelsPedestal Version Models Available for Frame Models 145/182/184JM
Specifications Curve
F
Specifications Enclosure Rating
TEFC
Specifications Full Load Current
16 A
Specifications Height
10 in | 243.84 mm
Specifications Inlet Size
2 in
Specifications Installed Options
Seal Wash Installed: 1/8" NPT access and rubber hose w/ 1/2" NPT male thread end (A220-90) | Silicon Carbide/Viton Seal Installed (315X-300-VS) | Silicon Carbide/Viton Seal Installed (424X-300-VS) | Silicon Carbide/Viton Seal Installed (425X-300-VS) | Silicon Carbide/Viton Seal Installed (426X-300-VS)
Specifications Length
24 in | 614.68 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
500 gpm
Specifications Moc
Stainless Steel
Specifications Model
315E-98
Specifications Motor Frame
184JM
Specifications Phase
1
Specifications Porting Position
1 1/2 in
Specifications Power
5 hp
Specifications Seal Material
Viton®
Specifications Sku
AT315E98SP
Specifications Temperature
200 ºF
Specifications Voltage At 60 Hz
230 V
Specifications Weight
140 | 63.50 | 140 lbs
Specifications Width
14 in | 353.06 mm
