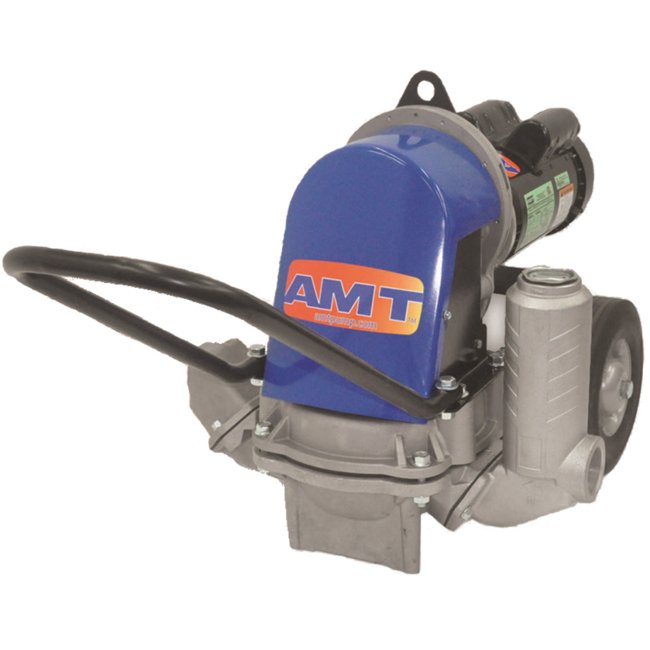

AMT 337E-96 1.5 HP Electric Motor 3" NPT Self-Priming Diaphragm Pump
AMT 337E-96 1.5 HP Electric Motor 3" NPT Self-Priming Diaphragm Pump
SKU:PRO-769e32
Reliable and efficient 1.5 HP Electric Motor Diaphragm Pump for handling mud, slurry, sewage, and thick liquids with ease. Self-priming to 25 feet and delivers up to 90 GPM.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
AMT 337E-96 1.5 HP Electric Motor 3" NPT Self-Priming Diaphragm Pump
$1,899.99
Quantity: 1
Claim Your Seller Account
AMT 337E-96 1.5 HP Electric Motor 3" NPT Self-Priming Diaphragm Pump
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMT 337E-96 1.5 HP Electric Motor 3" NPT Self-Priming Diaphragm Pump is a robust and efficient solution for handling mud, slurry, sewage, and thick liquids. Featuring a 2-stage forged gear transmission, this pump is self-priming to 25 feet and can handle solids up to 1-5/8". With a durable sand cast aluminum construction, a Thermoplastic Santoprene Diaphragm, and options for gasoline, diesel, or electric motors, this pump delivers up to 90 GPM. The modular design allows for easy maintenance and cleanout, making it a reliable choice for various applications.

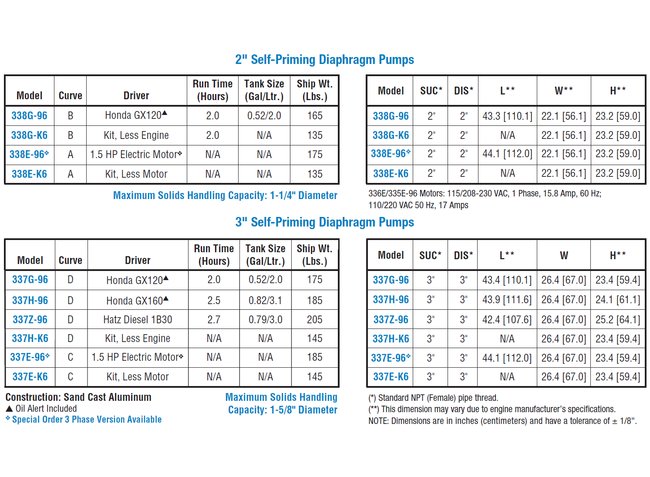

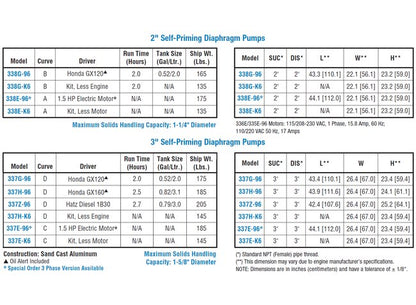

Product Specifications
Curves 0

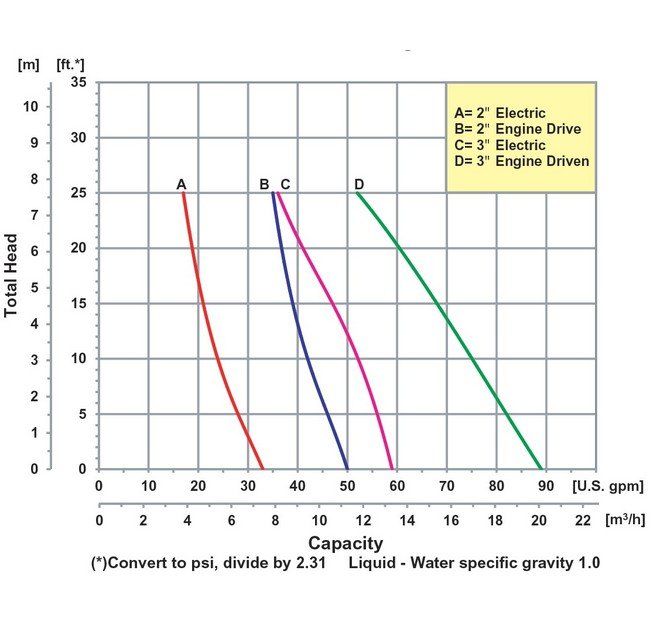

Performance Curves
Specifications 0
Sand Cast Aluminum Construction for Portability and Durability Modular Component Design Permits Easy Maintenance and Cleanout Maximum Solids Handling up to 1-5/8 In Self-Priming to 25 Ft. Lift 90° Rotatable Base on All Models Thermoplastic Santoprene Diaphragm Delivers up to 90 GPM
Specifications Customs Code
HTS Code 8413500050
Specifications Driver
56C 115 VAC 60 HZ Electric Motor

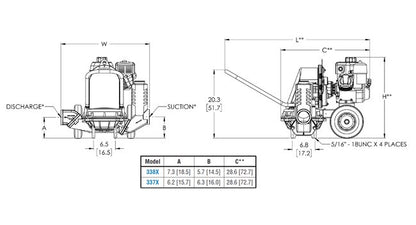

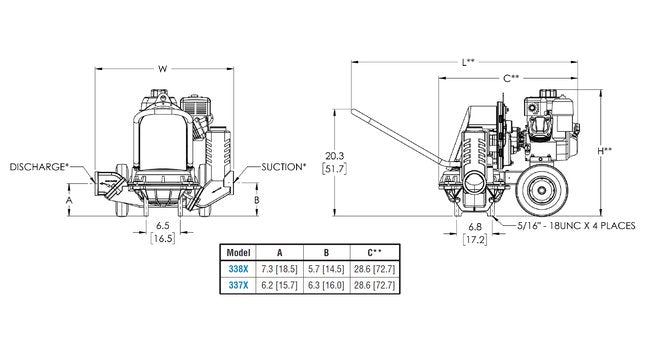

Specifications Height
23 in | 594.36 mm
Specifications Inlet Size
3" FNPT
Specifications Length
44 Inch | 112.01 Centimeter | 3.68 ft | 44 in | 1.1201 m | 1120.14 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Motor Frame
56C
Specifications Porting Position
3" FNPT
Specifications Power
1.5 hp
Specifications Sku
AT337E96SP
Specifications Weight
83.91 Kilogram | 83.91 kg | 185 lbs
Specifications Width
26 Inch | 26 in | 0.6706 m | 670.56 mm
