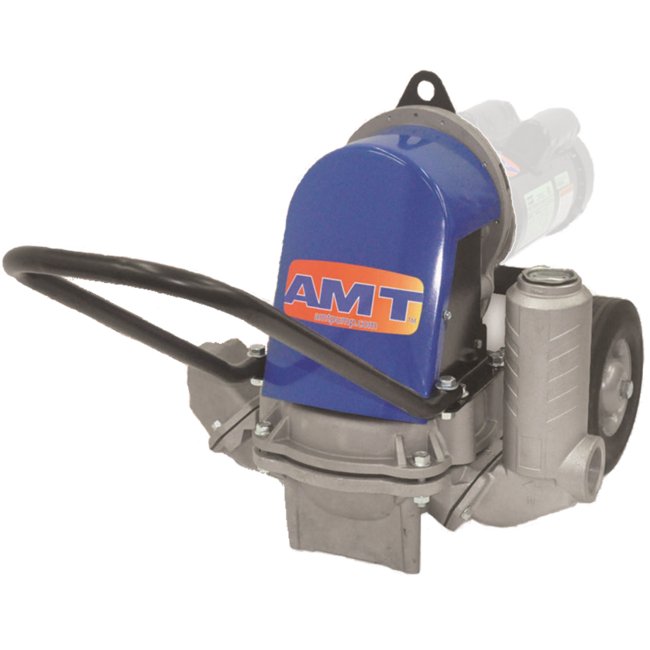

AMT 337H-K6 4 HP 3" NPT Self-Priming Diaphragm Pump Kit

AMT 337H-K6 4 HP 3" NPT Self-Priming Diaphragm Pump Kit

PRO-3fed85

Powerful and reliable 4 HP Self-Priming Diaphragm Pump Kit with exceptional solid handling and easy maintenance.

$1,450.99
$1,450.99
Sale

Initiate Order

AMT 337H-K6 4 HP 3" NPT Self-Priming Diaphragm Pump Kit

AMT 337H-K6 4 HP 3" NPT Self-Priming Diaphragm Pump Kit

$1,450.99

Quantity: 1

Claim Your Seller Account

AMT 337H-K6 4 HP 3" NPT Self-Priming Diaphragm Pump Kit

AMT 337H-K6 4 HP 3" NPT Self-Priming Diaphragm Pump Kit

$1,450.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The AMT 337H-K6 4 HP 3" NPT Self-Priming Diaphragm Pump Kit is a heavy-duty solution ideal for pumping mud, slurry, sewage, and thick liquids. With a 2-stage forged gear driven transmission, it offers self-priming to 25ft and can handle solids up to 1-5/8". This pump kit features Sand Cast Aluminum Construction, a Thermoplastic Santoprene Diaphragm, and a 90° Rotatable Base, delivering up to 90 GPM. Designed for reliability and ease of maintenance, this kit comes with a 3" FNPT inlet size and porting position, suitable for gasoline, diesel, or electric motors (0.75 Kyd, Less Motor).

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

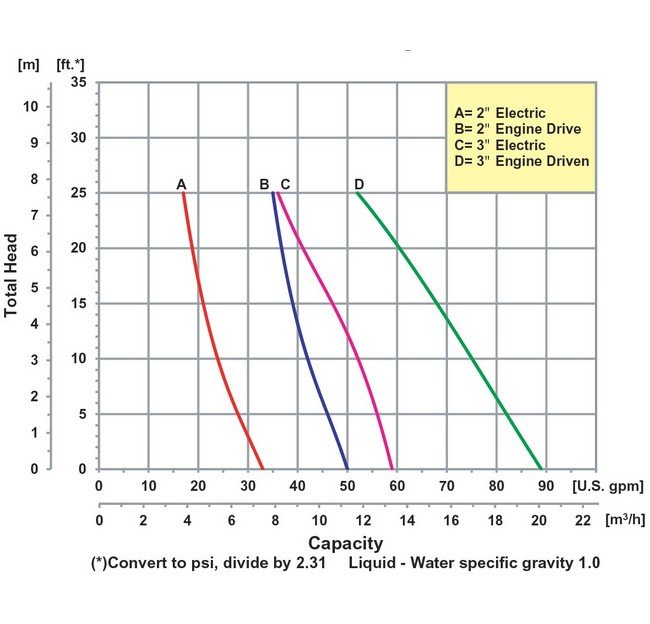

Curves 0
Performance Curves
Specifications 0
Sand Cast Aluminum Construction for Portability and DurabilityModular Component Design Permits Easy Maintenance and CleanoutMaximum Solids Handling up to 1-5/8 InSelf-Priming to 25 Ft. Lift90° Rotatable Base on All ModelsThermoplastic Santoprene DiaphragmDelivers up to 90 GPM
Specifications Customs Code
HTS Code 8413500050
Specifications Driver
.75 Kyd Kit, Less Motor
Specifications Height
23 in | 594.36 mm
Specifications Inlet Size
3" FNPT
Specifications Manufacturer
American Machine and Tool Company
Specifications Motor Frame
.75 Kyd
Specifications Porting Position
3" FNPT
Specifications Power
4 hp
Specifications Sku
AT337HK6SP
Specifications Weight
65.77 Kilogram | 65.77 kg | 145 lbs
Specifications Width
26 Inch | 26 in | 0.6706 m | 670.56 mm
