AMT 3655-95 1-1/2" NPT Sprinkler/Booster Pump
AMT 3655-95 1-1/2" NPT Sprinkler/Booster Pump
SKU:PRO-5340bd
Efficient AMT 1-1/2" NPT Sprinkler/Booster Pump with durable construction, self-priming, and optional Viton seals for various applications.
Regular price
$1,200.00
Regular price
Sale price
$1,200.00
Unit price
per
Initiate Order
AMT 3655-95 1-1/2" NPT Sprinkler/Booster Pump
$1,200.00
Quantity: 1
Claim Your Seller Account
AMT 3655-95 1-1/2" NPT Sprinkler/Booster Pump
$1,200.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

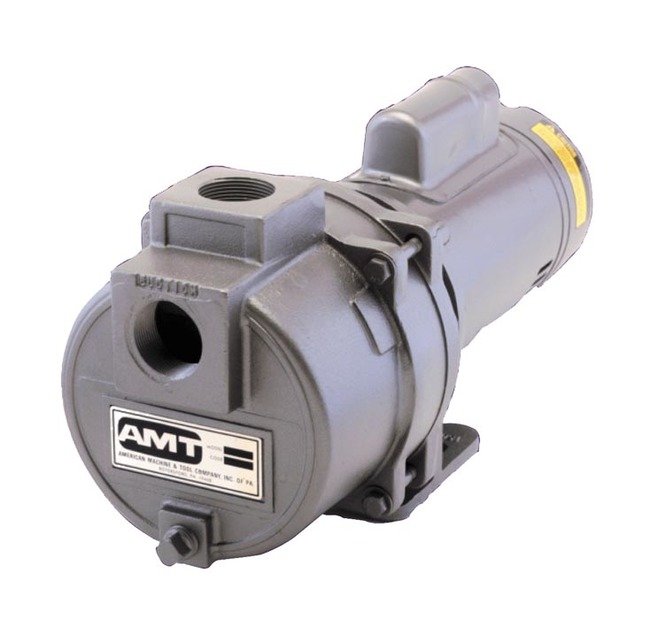

The AMT 3655-95 1-1/2" NPT Sprinkler/Booster Pump is designed with 300 Series Investment Cast Stainless Steel impellers for superior efficiency and durability, resisting erosion from abrasive particles. With self-priming capabilities up to 20 ft, this pump's single-stage models feature a dual volute design for reduced radial load on the motor and quick priming. The cast iron construction ensures longevity and low maintenance, while the Type 21 mechanical seal handles up to 150 PSI working pressure. Available with ODP or TEFC motors and optional Viton seals, this pump is ideal for fast 24-hour shipment, meeting the demands of both residential and institutional applications.
Product Specifications
Specifications 0
Cast Iron Construction with 300 Series Investment Cast Stainless Steel ImpellersBuna-N Mechanical Seal and O-RingODP & TEFC Motors Available on 1-1/2" NPT Single-stage ModelsRemovable/Replaceable Volute/DiffuserSingle Stage Models Feature Removable Dual Volute DesignSelf-priming to 20 ft.Maximum Working Pressure to 150 PSIMaximum Temperature 180° F"Off-the-Shelf" Availability on Many Models
Specifications Curve
B
Specifications Customs Code
HTS Code 8413702015
Specifications Enclosure Rating
TEFC
Specifications Full Load Current
17/9 A
Specifications Height
10 in | 254.00 mm
Specifications Inlet Size
2 in
Specifications Installed Options
Viton Flapper Valve, Mechanical Seal and O-Ring (365X-300-VO) | Viton Flapper Valve, Mechanical Seal and O-Ring (379X-300-VO)
Specifications Length
25 in | 635.00 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
157 gpm
Specifications Motor Frame
184JM
Specifications Phase
3
Specifications Porting Position
2 in
Specifications Power
5 hp
Specifications Seal Material
Buna-N
Specifications Self Priming
20 ft
Specifications Sku
AT365595SP
Specifications Temperature
180 ºF
Specifications Voltage At 60 Hz
230/460 V
Specifications Weight
157 | 71.21 | 157 lbs
Specifications Width
12 in | 312.42 mm
