AMT 3656-95 Stainless Steel Sprinkler/Booster Pump
AMT 3656-95 Stainless Steel Sprinkler/Booster Pump
SKU:PRO-c389c7
AMT 3656-95 Stainless Steel Sprinkler/Booster Pump - High-efficiency, durable design for versatile applications.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
AMT 3656-95 Stainless Steel Sprinkler/Booster Pump
$2,899.99
Quantity: 1
Claim Your Seller Account
AMT 3656-95 Stainless Steel Sprinkler/Booster Pump
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMT 3656-95 Sprinkler/Booster Pump is engineered for efficiency and durability, featuring 300 Series Investment Cast Stainless Steel impellers that resist abrasion. These pumps are self-priming to 20 ft, with single-stage models sporting a dual volute design to reduce motor load. With cast iron construction, easy cleanout design, and Type 21 mechanical seals for pressures up to 150 PSI, they ensure reliable performance. Available in 3/4 to 7-1/2 HP with ODP or TEFC motors, these pumps are ideal for various applications, including multi-sprinkler head setups.
Product Specifications
Specifications 0
Cast Iron Construction with 300 Series Investment Cast Stainless Steel ImpellersBuna-N Mechanical Seal and O-RingODP & TEFC Motors Available on 1-1/2" NPT Single-stage ModelsRemovable/Replaceable Volute/DiffuserSingle Stage Models Feature Removable Dual Volute DesignSelf-priming to 20 ft.Maximum Working Pressure to 150 PSIMaximum Temperature 180° F"Off-the-Shelf" Availability on Many Models

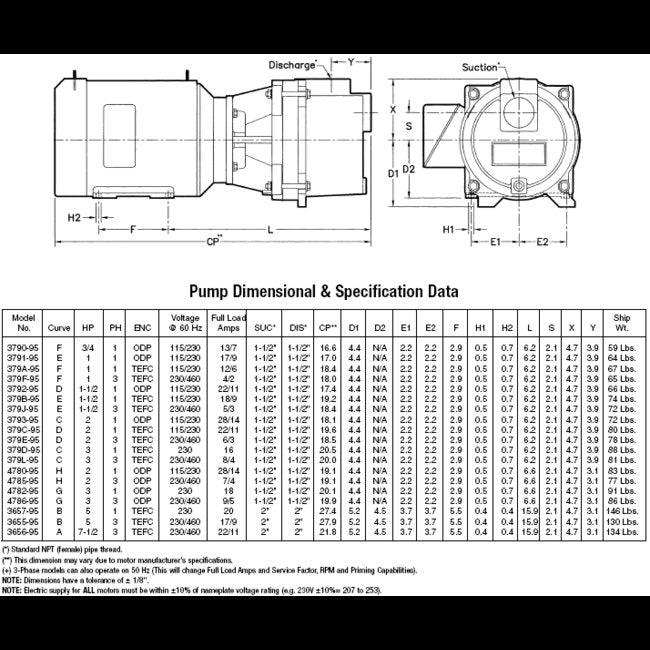

Specifications Curve
A
Specifications Customs Code
HTS Code 8413702015
Specifications Enclosure Rating
TEFC
Specifications Full Load Current
22/11 A
Specifications Height
10 in | 254.00 mm
Specifications Inlet Size
2 in
Specifications Installed Options
Viton Flapper Valve, Mechanical Seal and O-Ring (365X-300-VO) | Viton Flapper Valve, Mechanical Seal and O-Ring (379X-300-VO)
Specifications Length
25 in | 635.00 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
157 gpm
Specifications Motor Frame
184JM
Specifications Phase
3
Specifications Porting Position
2 in
Specifications Power
7 1/2 hp
Specifications Seal Material
Buna-N
Specifications Self Priming
20 ft
Specifications Sku
AT365695SP
Specifications Temperature
180 ºF
Specifications Voltage At 60 Hz
230/460 V
Specifications Weight
160 | 72.57 | 160 lbs
Specifications Width
12 in | 312.42 mm
