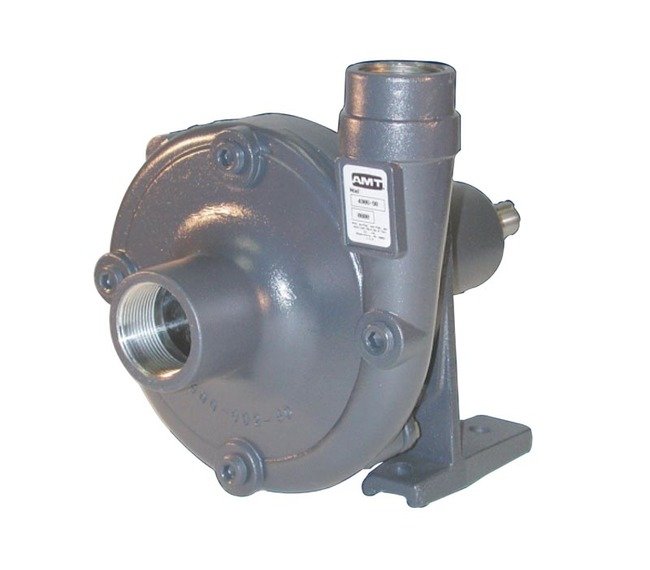

AMT 3704-97 Straight Centrifugal Pedestal Pump
AMT 3704-97 Straight Centrifugal Pedestal Pump
SKU:PRO-4131ec
AMT 3704-97 Pedestal Pump - High performance, durable construction for industrial water applications.
Regular price
$689.99
Regular price
Sale price
$689.99
Unit price
per
Initiate Order
AMT 3704-97 Straight Centrifugal Pedestal Pump
$689.99
Quantity: 1
Claim Your Seller Account
AMT 3704-97 Straight Centrifugal Pedestal Pump
$689.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMT 3704-97 Straight Centrifugal Pedestal Pump is a robust solution designed by American Machine and Tool Company for demanding water applications. Constructed with stainless steel fitted cast iron and investment cast stainless steel, this pump ensures durability and corrosion resistance. With a maximum flow rate of 118 GPM and a maximum head of 148 ft, it delivers high performance in both general service and high head applications. The self-cleaning impellers and Viton/Stainless Steel shaft seal construction enhance longevity and efficiency. The pump is epoxy coated for added protection, making it suitable for various industrial settings.
Product Specifications
Specifications 0
Stainless Steel Fitted Cast Iron, Cast Bronze or 300 Series Investment Cast Stainless Steel Construction3/4" to 1-1/2" NPT Suction Ports1/2" to 1-1/4" NPT Discharge PortsMaximum Working PressureGeneral Service - 75 PSIHigh Head - 150 PSISelf-cleaning Impellers on General Service ModelsMaximum TemperatureBuna-N - 180ºFViton® - 200ºFMaximum Flow 118 GPMMaximum Head 148 ft.Discharge Port Rotates in 90º Increments on High Head UnitsEpoxy Coated Pedestal Drive on High Head Models
Specifications Curve
D
Specifications Customs Code
HTS Code 8413702022
Specifications Height
6 in | 142.24 mm
Specifications Inlet Size
1 in
Specifications Installed Options
Silicon Carbide / Viton Seal Installed (489X-300-VS) | Silicon Carbide / Viton Seal Installed (490X-300-VS)
Specifications Length
7 in | 170.18 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
118 gpm
Specifications Max Working Pressure High Head
150 psi
Specifications Moc
Bronze
Specifications Model
3704-97
Specifications Motor Rpm
4000 rpm
Specifications Porting Position
3/4 in
Specifications Power
1 hp
Specifications Shaft Seal Construction
Viton/Stainless Steel
Specifications Sku
AT370497SP
Specifications Temperature
200 ºF
Specifications Type
Pedestal Pump
Specifications Weight
11 | 4.99 | 11 lbs
Specifications Width
6 in | 162.56 mm
