AMT 3790-95 1-1/2" NPT Sprinkler/Booster Pump
AMT 3790-95 1-1/2" NPT Sprinkler/Booster Pump
SKU:PRO-c070a7
AMT 3790-95 1-1/2" NPT Sprinkler/Booster Pump. High-efficiency stainless steel impellers, self-priming, max 150 PSI, for sprinkler systems.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
AMT 3790-95 1-1/2" NPT Sprinkler/Booster Pump
$899.99
Quantity: 1
Claim Your Seller Account
AMT 3790-95 1-1/2" NPT Sprinkler/Booster Pump
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

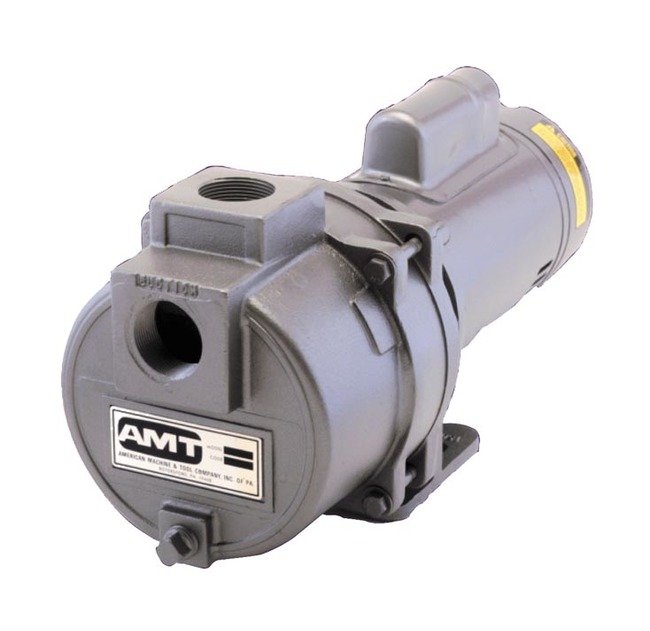

The AMT 3790-95 1-1/2" NPT Sprinkler/Booster Pump is a robust solution for high-efficiency water pumping needs. Featuring cast iron construction with 300 Series Investment Cast Stainless Steel impellers, this pump ensures durability and erosion resistance. It offers a self-priming capability up to 20 ft and a maximum working pressure of 150 PSI. With options for ODP & TEFC motors, and a Buna-N mechanical seal, this pump is versatile and reliable for various applications. Ideal for sprinkler systems, it boasts a maximum flow rate of 157 GPM and a maximum head of 180 ft.

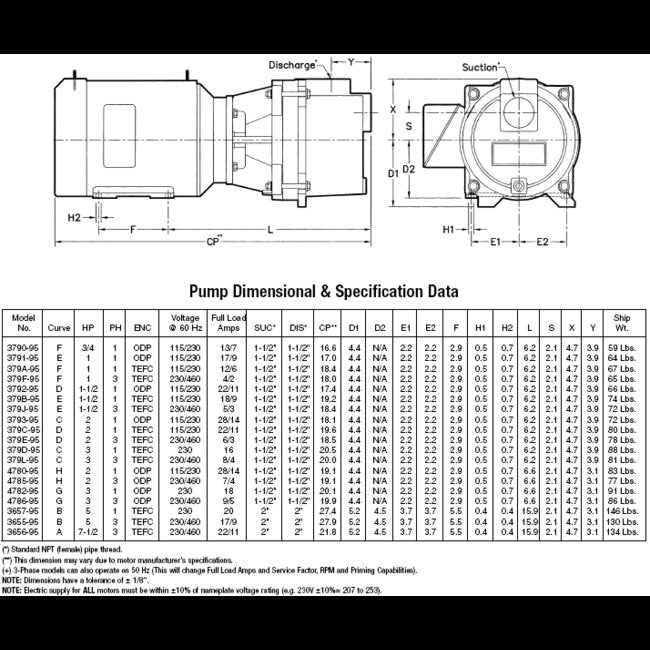

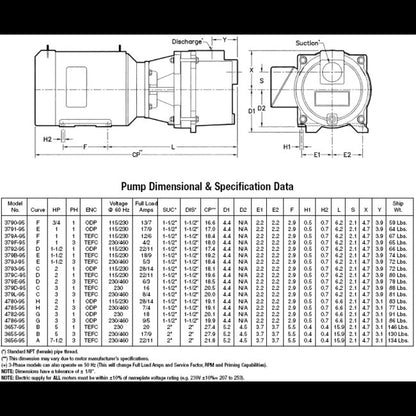

Product Specifications
Specifications 0
Cast Iron Construction with 300 Series Investment Cast Stainless Steel ImpellersBuna-N Mechanical Seal and O-RingODP & TEFC Motors Available on 1-1/2" NPT Single-stage ModelsRemovable/Replaceable Volute/DiffuserSingle Stage Models Feature Removable Dual Volute DesignSelf-priming to 20 ft.Maximum Working Pressure to 150 PSIMaximum Temperature 180° F"Off-the-Shelf" Availability on Many Models
Specifications Curve
F
Specifications Customs Code
HTS Code 8413702005
Specifications Enclosure Rating
ODP
Specifications Full Load Current
13/7 A
Specifications Height
9 in | 231.14 mm
Specifications Inlet Size
1 1/2 in
Specifications Installed Options
Viton Flapper Valve, Mechanical Seal and O-Ring (365X-300-VO) | Viton Flapper Valve, Mechanical Seal and O-Ring (379X-300-VO)
Specifications Length
18 in | 459.74 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
157 gpm
Specifications Motor Frame
56J
Specifications Phase
1
Specifications Porting Position
1 1/2 in
Specifications Power
3/4 hp
Specifications Seal Material
Buna-N
Specifications Self Priming
20 ft
Specifications Sku
AT379095SP
Specifications Temperature
180 ºF
Specifications Voltage At 60 Hz
115/230 V
Specifications Weight
26.76 | 59 | 59 lbs
Specifications Width
8 in | 203.20 mm
