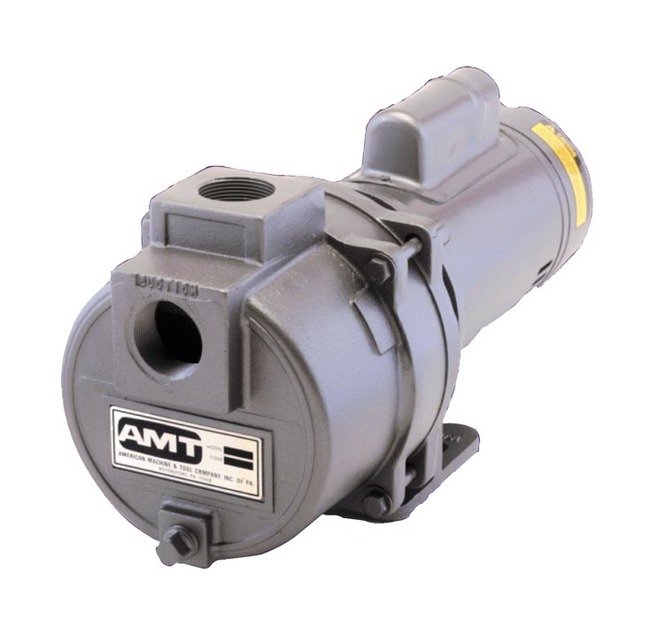

AMT 379A-95 1-1/2" NPT Sprinkler Pump
AMT 379A-95 1-1/2" NPT Sprinkler Pump
SKU:PRO-103b5c
Efficient and durable 1-1/2" NPT Sprinkler Pump with dual volute design. Ideal for high-volume water applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
AMT 379A-95 1-1/2" NPT Sprinkler Pump
$899.99
Quantity: 1
Claim Your Seller Account
AMT 379A-95 1-1/2" NPT Sprinkler Pump
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMT 379A-95 1-1/2" NPT Sprinkler Pump is expertly designed with a focus on efficiency and durability. Featuring a dual volute design to reduce motor load and a self-priming capability of up to 20 ft, this pump ensures fast priming and reliable performance. Constructed with cast iron and 300 Series Investment Cast Stainless Steel impellers, it offers resistance to erosion and requires low maintenance. Ideal for applications requiring maximum flow rates of 157 GPM and a working pressure of up to 150 PSI, this pump is a dependable choice for water management systems.
Product Specifications
Specifications 0
Cast Iron Construction with 300 Series Investment Cast Stainless Steel ImpellersBuna-N Mechanical Seal and O-RingODP & TEFC Motors Available on 1-1/2" NPT Single-stage ModelsRemovable/Replaceable Volute/DiffuserSingle Stage Models Feature Removable Dual Volute DesignSelf-priming to 20 ft.Maximum Working Pressure to 150 PSIMaximum Temperature 180° F"Off-the-Shelf" Availability on Many Models

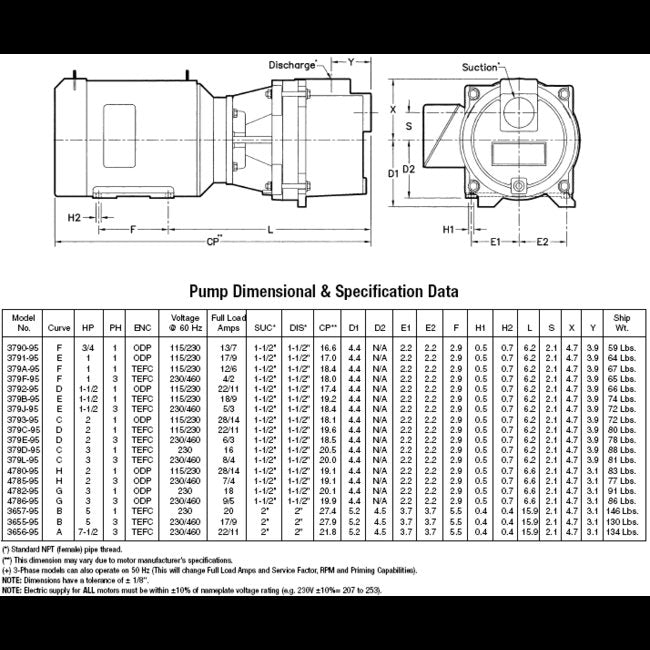

Specifications Curve
F
Specifications Customs Code
HTS Code 8413702005
Specifications Enclosure Rating
TEFC
Specifications Full Load Current
12/6 A
Specifications Height
9 in | 231.14 mm
Specifications Inlet Size
1 1/2 in
Specifications Installed Options
Viton Flapper Valve, Mechanical Seal and O-Ring (365X-300-VO) | Viton Flapper Valve, Mechanical Seal and O-Ring (379X-300-VO)
Specifications Length
19 in | 472.44 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
157 gpm
Specifications Motor Frame
56J
Specifications Phase
1
Specifications Porting Position
1 1/2 in
Specifications Power
1 hp
Specifications Seal Material
Buna-N
Specifications Self Priming
20 ft
Specifications Sku
AT379A95SP
Specifications Temperature
180 ºF
Specifications Voltage At 60 Hz
115/230 V
Specifications Weight
30.39 | 67 | 67 lbs
Specifications Width
9 in | 236.22 mm
