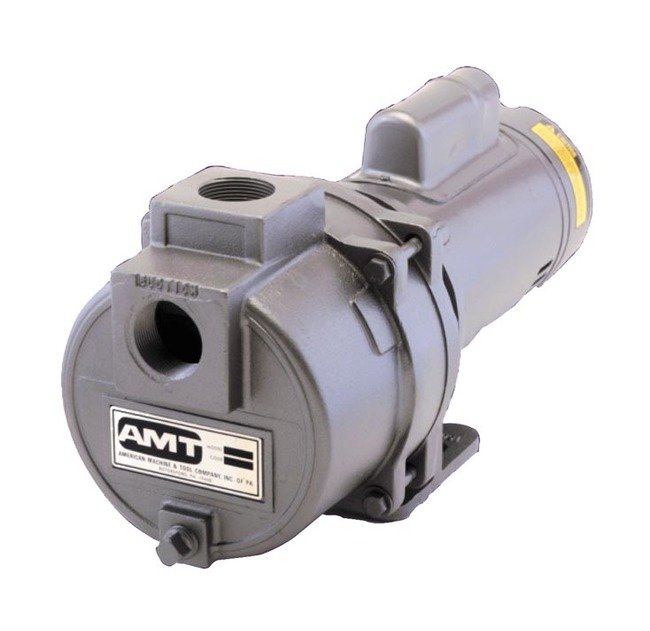

AMT 379B-95 Sprinkler & Booster Pump
AMT 379B-95 Sprinkler & Booster Pump
SKU:PRO-3121a4
High-efficiency AMT 379B-95 Sprinkler & Booster Pump, cast iron construction, 300 series stainless steel impellers, self-priming, dual volute design, 150 PSI.
Regular price
$849.99
Regular price
Sale price
$849.99
Unit price
per
Initiate Order
AMT 379B-95 Sprinkler & Booster Pump
$849.99
Quantity: 1
Claim Your Seller Account
AMT 379B-95 Sprinkler & Booster Pump
$849.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMT 379B-95 Sprinkler & Booster Pump is a high-efficiency solution designed for durability and performance in water systems. Featuring a cast iron construction with 300 series stainless steel impellers, this pump is resistant to erosion and suitable for handling abrasive particles. It offers self-priming capabilities up to 20 ft, a dual volute design to reduce radial load, and a built-in check valve for fast priming. With a maximum working pressure of 150 PSI and a temperature limit of 180°F, this pump ensures reliability and consistency in water distribution. Available with ODP or TEFC motors, it is a versatile choice for various applications.
Product Specifications
Specifications 0
Cast Iron Construction with 300 Series Investment Cast Stainless Steel ImpellersBuna-N Mechanical Seal and O-RingODP & TEFC Motors Available on 1-1/2" NPT Single-stage ModelsRemovable/Replaceable Volute/DiffuserSingle Stage Models Feature Removable Dual Volute DesignSelf-priming to 20 ft.Maximum Working Pressure to 150 PSIMaximum Temperature 180° F"Off-the-Shelf" Availability on Many Models

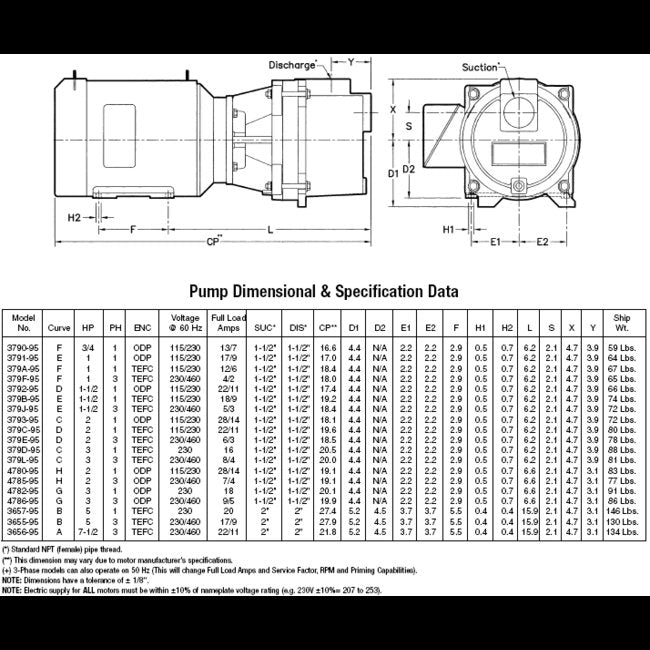

Specifications Curve
E
Specifications Customs Code
HTS Code 8413702005
Specifications Enclosure Rating
TEFC
Specifications Full Load Current
18/9 A
Specifications Height
9 in | 231.14 mm
Specifications Inlet Size
1 1/2 in
Specifications Installed Options
Viton Flapper Valve, Mechanical Seal and O-Ring (365X-300-VO) | Viton Flapper Valve, Mechanical Seal and O-Ring (379X-300-VO)
Specifications Length
19 in | 485.14 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
157 gpm
Specifications Motor Frame
56J
Specifications Phase
1
Specifications Porting Position
1 1/2 in
Specifications Power
1 1/2 hp
Specifications Seal Material
Buna-N
Specifications Self Priming
20 ft
Specifications Sku
AT379B95SP
Specifications Temperature
180 ºF
Specifications Voltage At 60 Hz
115/230 V
Specifications Weight
34.93 | 77 | 74 lbs
Specifications Width
9 in | 236.22 mm
