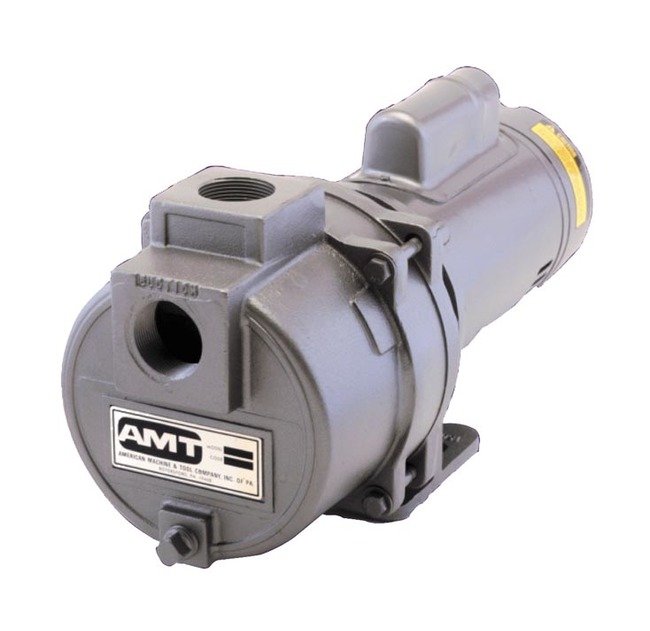

AMT 379C-95 1-1/2" NPT Sprinkler/Booster Pump
AMT 379C-95 1-1/2" NPT Sprinkler/Booster Pump
SKU:PRO-a17036
Efficient and durable 1-1/2" NPT Sprinkler/Booster Pump for high-pressure water systems in institutional settings.
Regular price
$789.99
Regular price
Sale price
$789.99
Unit price
per
Initiate Order
AMT 379C-95 1-1/2" NPT Sprinkler/Booster Pump
$789.99
Quantity: 1
Claim Your Seller Account
AMT 379C-95 1-1/2" NPT Sprinkler/Booster Pump
$789.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMT 379C-95 1-1/2" NPT Sprinkler/Booster Pump is designed for high efficiency and durability in water applications. Featuring a cast iron construction with 300 Series Investment Cast Stainless Steel impellers, this pump ensures resistance to erosion from abrasive particles. With a self-priming capability of up to 20 ft and a dual volute design, it reduces radial load on the motor for optimal performance. The Type 21 mechanical seals handle pressures up to 150 PSI, making it ideal for institutional settings. Available in various HP options and motor enclosures, this pump is a reliable choice for multiple sprinkler head applications.
Product Specifications
Specifications 0
Cast Iron Construction with 300 Series Investment Cast Stainless Steel ImpellersBuna-N Mechanical Seal and O-RingODP & TEFC Motors Available on 1-1/2" NPT Single-stage ModelsRemovable/Replaceable Volute/DiffuserSingle Stage Models Feature Removable Dual Volute DesignSelf-priming to 20 ft.Maximum Working Pressure to 150 PSIMaximum Temperature 180° F"Off-the-Shelf" Availability on Many Models

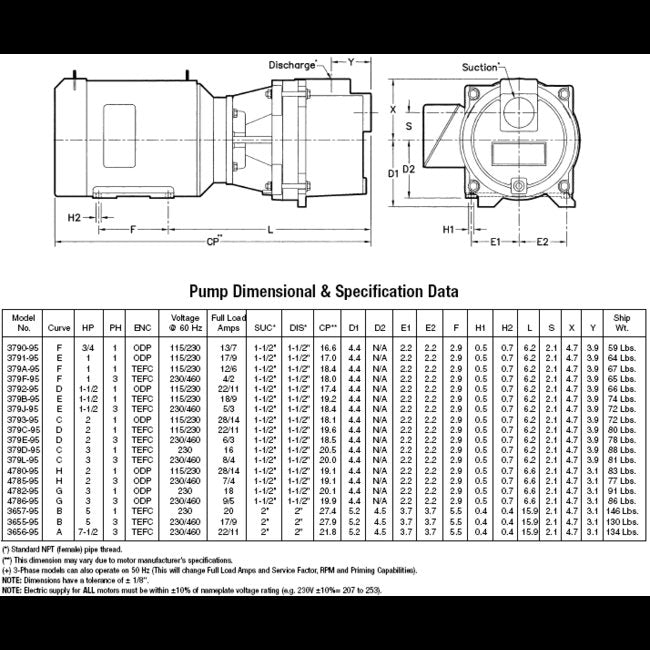

Specifications Curve
D
Specifications Customs Code
HTS Code 8413702005
Specifications Enclosure Rating
TEFC
Specifications Full Load Current
22/11 A
Specifications Height
9 in | 231.14 mm
Specifications Inlet Size
1 1/2 in
Specifications Installed Options
Viton Flapper Valve, Mechanical Seal and O-Ring (365X-300-VO) | Viton Flapper Valve, Mechanical Seal and O-Ring (379X-300-VO)
Specifications Length
20 in | 502.92 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
157 gpm
Specifications Motor Frame
56J
Specifications Phase
1
Specifications Porting Position
1 1/2 in
Specifications Power
2 hp
Specifications Seal Material
Buna-N
Specifications Self Priming
20 ft
Specifications Sku
AT379C95SP
Specifications Temperature
180 ºF
Specifications Voltage At 60 Hz
115/230 V
Specifications Weight
36.29 | 80 | 80 lbs
Specifications Width
9 in | 236.22 mm
