AMT 4 HP 2" NPT Self-Priming Diaphragm Pump Kit

AMT 4 HP 2" NPT Self-Priming Diaphragm Pump Kit

PRO-79870f

Heavy-duty self-priming diaphragm pump kit for mud, slurry, and sewage. Self-priming to 25ft lift, up to 90GPM flow, and handles solids up to 1-5/8". Gasoline, diesel, or electric motor options.

$1,250.00
$1,250.00
Sale

Initiate Order

AMT 4 HP 2" NPT Self-Priming Diaphragm Pump Kit

AMT 4 HP 2" NPT Self-Priming Diaphragm Pump Kit

$1,250.00

Quantity: 1

Claim Your Seller Account

AMT 4 HP 2" NPT Self-Priming Diaphragm Pump Kit

AMT 4 HP 2" NPT Self-Priming Diaphragm Pump Kit

$1,250.00

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

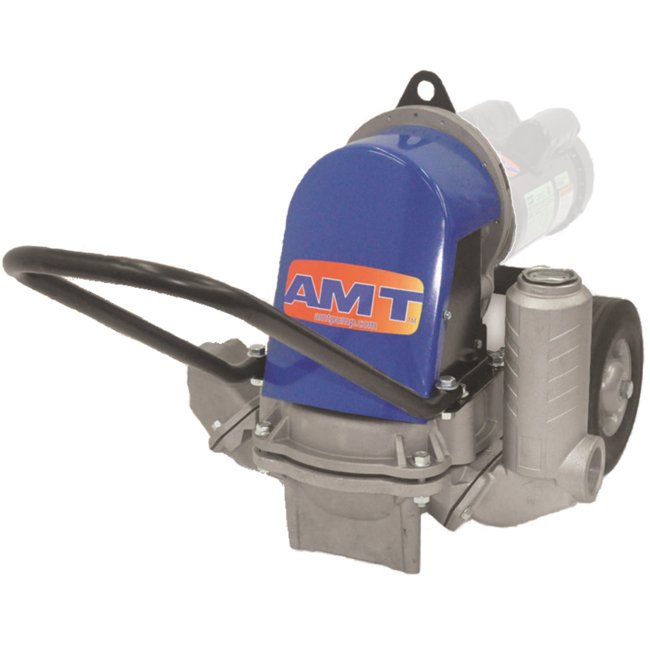

The AMT 338G-K6 4 HP 2" NPT Self-Priming Diaphragm Pump Kit is a heavy-duty pump designed for pumping mud, slurry, sewage, and thick liquids with ease. Featuring a 2-stage forged gear driven transmission, this pump is self-priming up to 25 feet and can handle solids up to 1-5/8" in size. With options for gasoline, diesel, or electric motors, this pump delivers up to 90 GPM, making it versatile for various applications. Its modular design allows for easy maintenance and cleanout, and the sand-cast aluminum construction ensures portability and durability.

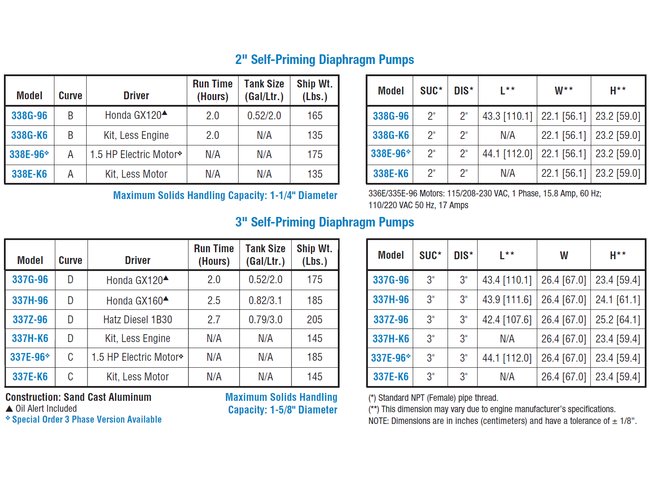

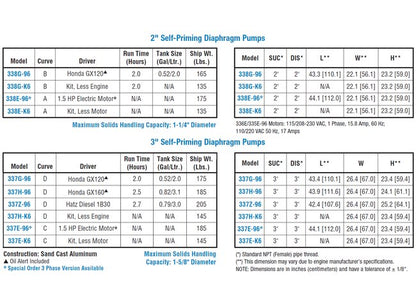

Product Specifications

Curves 0

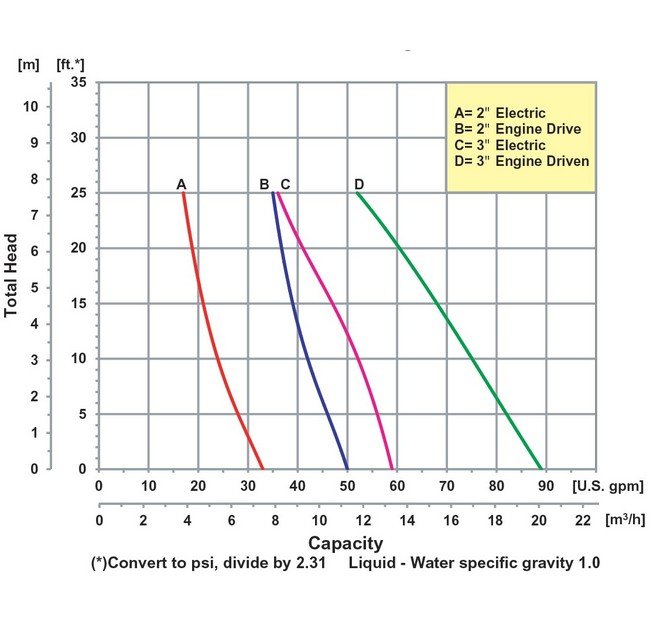

Performance Curves
Specifications 0
Sand Cast Aluminum Construction for Portability and DurabilityModular Component Design Permits Easy Maintenance and CleanoutMaximum Solids Handling up to 1-5/8 InSelf-Priming to 25 Ft. Lift90° Rotatable Base on All ModelsThermoplastic Santoprene DiaphragmDelivers up to 90 GPM
Specifications Customs Code
HTS Code 8413500050
Specifications Driver
.75 Kyd Kit, Less Engine
Specifications Height
23 in | 589.28 mm
Specifications Inlet Size
2" FNPT
Specifications Manufacturer
American Machine and Tool Company
Specifications Motor Frame
.75 Kyd
Specifications Porting Position
2" FNPT
Specifications Power
4 hp
Specifications Sku
AT338GK6SP
Specifications Weight
43.09 Kilogram | 43.09 kg | 95 lbs
Specifications Width
22 Inch | 22 in | 0.5613 m | 561.34 mm
