AMT 4 HP Gasoline Engine 2" NPT Self-Priming Diaphragm Pump

AMT 4 HP Gasoline Engine 2" NPT Self-Priming Diaphragm Pump

PRO-0e4a2d

AMT 4 HP Gasoline Engine Self-Priming Diaphragm Pump - Durable, Efficient, Reliable. Ideal for sewage and utility applications.

$1,099.99
$1,099.99
Sale

Initiate Order

AMT 4 HP Gasoline Engine 2" NPT Self-Priming Diaphragm Pump

AMT 4 HP Gasoline Engine 2" NPT Self-Priming Diaphragm Pump

$1,099.99

Quantity: 1

Claim Your Seller Account

AMT 4 HP Gasoline Engine 2" NPT Self-Priming Diaphragm Pump

AMT 4 HP Gasoline Engine 2" NPT Self-Priming Diaphragm Pump

$1,099.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

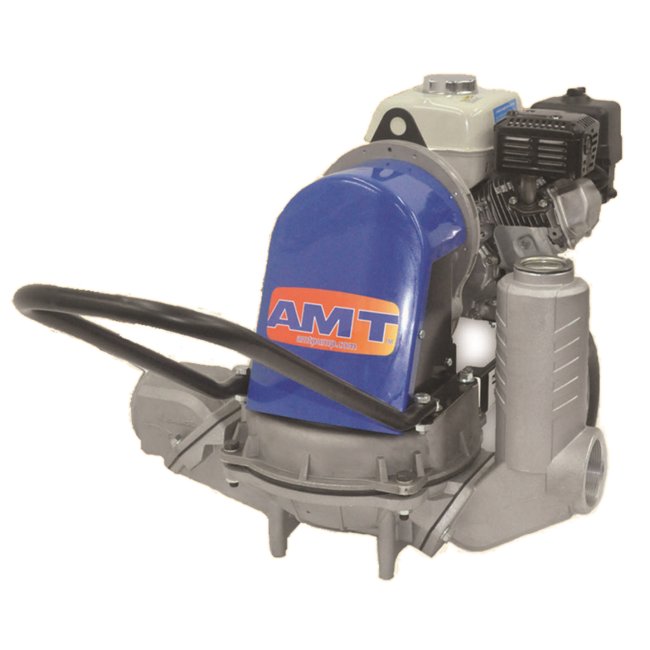

The AMT 338G-96 4 HP Gasoline Engine 2" NPT Self-Priming Diaphragm Pump is a versatile solution for pumping mud, slurry, sewage, and thick liquids. With a sand cast aluminum construction for durability, self-priming up to 25 ft lift, and a 90° rotatable base, it offers easy maintenance, portability, and efficient performance. Featuring a Thermoplastic Santoprene Diaphragm and capable of handling solids up to 1-5/8", this pump is suitable for water, wastewater, sump, and utility applications. It meets stringent industry standards for quality and reliability.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

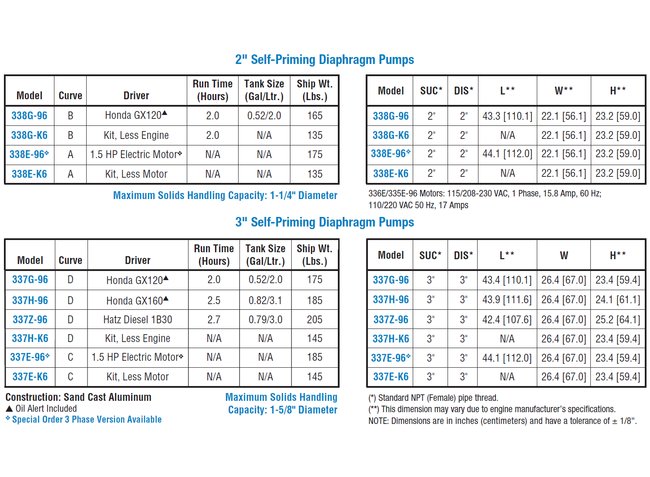

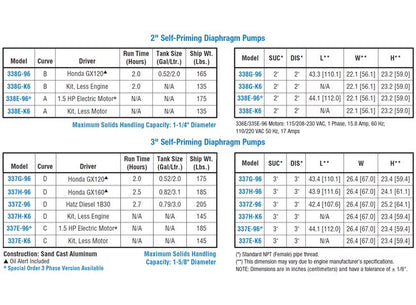

Product Specifications

Curves 0

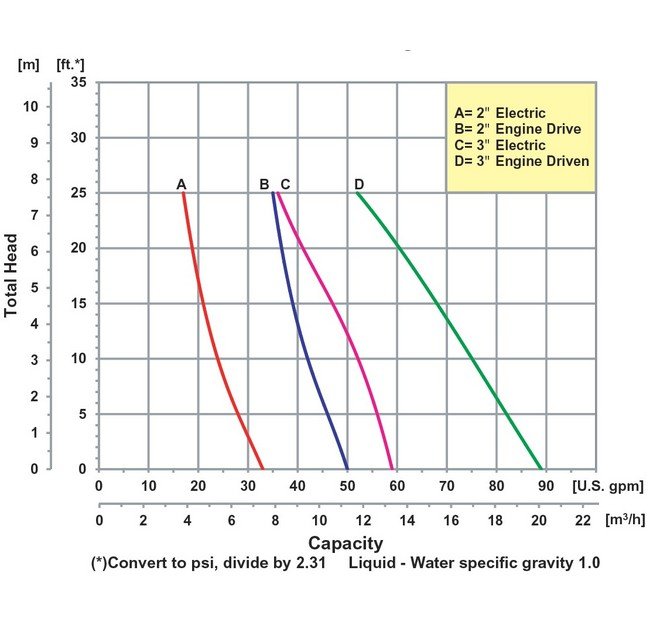

Performance Curves
Specifications 0
Sand Cast Aluminum Construction for Portability and DurabilityModular Component Design Permits Easy Maintenance and CleanoutMaximum Solids Handling up to 1-5/8 InSelf-Priming to 25 Ft. Lift90° Rotatable Base on All ModelsThermoplastic Santoprene DiaphragmDelivers up to 90 GPM
Specifications Customs Code
HTS Code 8413500050
Specifications Driver
Honda GX120 .75 Kyd Gasoline Engine
Specifications Height
23 in | 589.28 mm
Specifications Inlet Size
2" FNPT
Specifications Length
43 Inch | 109.98 Centimeter | 3.61 ft | 43 in | 1.0998 m | 1099.82 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Motor Frame
.75 Kyd
Specifications Porting Position
2" FNPT
Specifications Power
4 hp
Specifications Sku
AT338G96SP
Specifications Weight
56.70 Kilogram | 56.70 kg | 125 lbs
Specifications Width
22 Inch | 22 in | 0.5613 m | 561.34 mm
