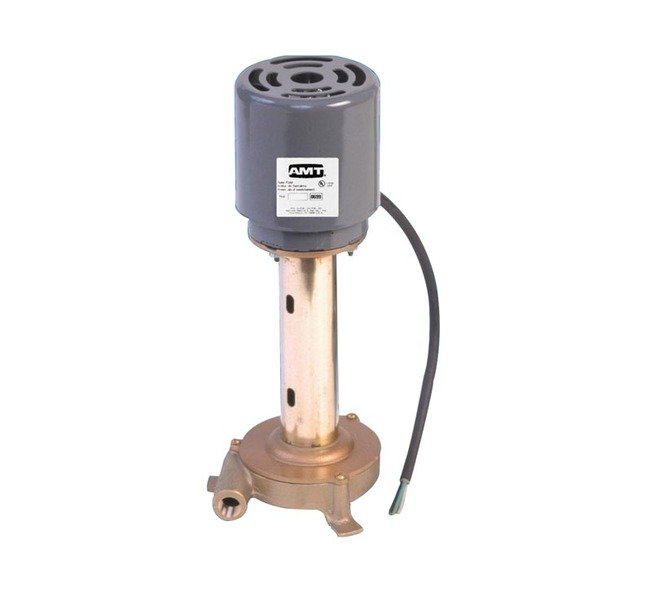

AMT 4230-97 Bronze Coolant Recirculating Pump - 3/8"
AMT 4230-97 Bronze Coolant Recirculating Pump - 3/8"
SKU:PRO-62634c
AMT 4230-97 Bronze Coolant Recirculating Pump: Reliable, cost-effective, and low maintenance solution for industrial coolant applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
AMT 4230-97 Bronze Coolant Recirculating Pump - 3/8"
$349.99
Quantity: 1
Claim Your Seller Account
AMT 4230-97 Bronze Coolant Recirculating Pump - 3/8"
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMT 4230-97 Bronze Coolant Recirculating Pump is designed for Industrial/Commercial coolant and recirculating applications. With a durable cast bronze construction, self-cleaning open impeller, and non-eroding bottom bearing, it excels in handling erosive liquids. This pump offers reliability, cost-effectiveness, and low maintenance, with fast availability for urgent needs. Ideal for use with non-flammable liquids, it features a 3/8" NPT discharge port, bronze shaft seal, and a maximum flow rate of 8 GPM. Compatible with 115V AC Single Phase motors, it meets institutional procurement standards with ease.
Product Specifications
Specifications 0
Cast Bronze ConstructionNo Bottom BearingBrass Column and Impeller ShaftBronze Self-cleaning Open Impeller3/8" NPT Discharge PortFiber GasketAvailable with 115V AC Single Phase or 230V AC 3-Phase Motors1/25 HP Totally Enclosed Fan Cooled (TEFC) Motor"Off-the-Shelf" Availability on Most Models
Specifications Customs Code
HTS Code 8413702005
Specifications Enclosure Rating
TEFC
Specifications Full Load Current
1.5 A
Specifications Height
12 in | 314.96 mm
Specifications Length
5 in | 134.62 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
8 gpm
Specifications Moc
Bronze
Specifications Model
4230-97
Specifications Motor Frame
33
Specifications Phase
1
Specifications Porting Position
3/8 in
Specifications Power
1/25 hp
Specifications Shaft Seal Construction
Bronze
Specifications Sku
AT423097SP
Specifications Temperature
200 ºF
Specifications Voltage Ac At 60 Hz
115 V
Specifications Weight
4.08 | 9 | 9 lbs
Specifications Width
4 in | 111.76 mm
