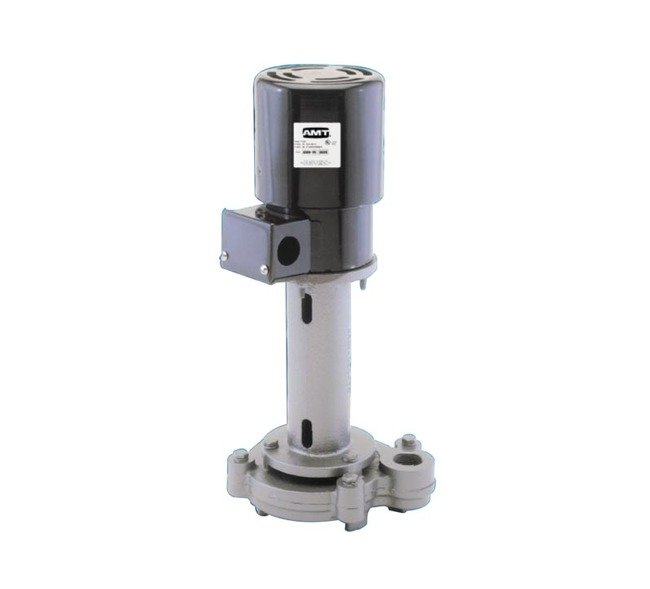

AMT 4421-95 Heavy Duty Industrial Coolant Pump
AMT 4421-95 Heavy Duty Industrial Coolant Pump
SKU:PRO-f281aa
Powerful Heavy Duty Industrial Coolant Pump for reliable performance in industrial and commercial coolant applications. Dual volute design for efficiency.
Regular price
$749.99
Regular price
Sale price
$749.99
Unit price
per
Initiate Order
AMT 4421-95 Heavy Duty Industrial Coolant Pump
$749.99
Quantity: 1
Claim Your Seller Account
AMT 4421-95 Heavy Duty Industrial Coolant Pump
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMT 4421-95 is a powerful Heavy Duty Industrial Coolant Pump designed for a wide range of industrial and commercial coolant applications. Featuring a dual volute construction that eliminates radial thrust and the need for bottom bearings, this pump offers reliability and efficiency. With a self-cleaning, semi-open impeller, cast iron casing, and column, this pump can handle viscosities up to 500 SSU. The Universal Mounting Bracket system ensures easy installation and alignment. Ideal for institutional and government procurement needs.
Product Specifications
Specifications 0
Cast Iron Casing and Column3/4" to 1-1/2" NPT Discharge PortHandles Viscosities to 500 SSUIncludes Universal Mounting BracketSelf-cleaning, Semi-open ImpellerSingle or Three Phase 56C Motor Available1/8 to 3/4 HP TEFC MotorMaximum Temperature 200ºF"Off-the-Shelf" Availability for Many Models

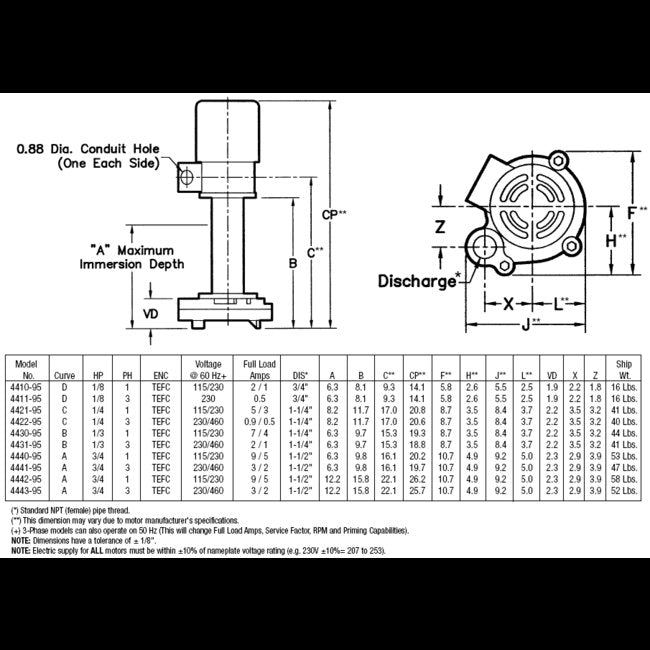

Specifications Curve
C
Specifications Customs Code
HTS Code 8413702005
Specifications Enclosure Rating
TEFC
Specifications Full Load Current
5/3 A
Specifications Height
21 in | 528.32 mm
Specifications Length
9 in | 220.98 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
67 gpm
Specifications Moc
Cast Iron
Specifications Model
4421-95
Specifications Motor Frame
56C
Specifications Phase
1
Specifications Porting Position
1 1/4 in
Specifications Power
1/4 hp
Specifications Shaft Seal Construction
Stainless Steel
Specifications Sku
AT442195SP
Specifications Temperature
200 ºF
Specifications Voltage Ac At 60 Hz
115/230 V
Specifications Weight
19.96 | 44 | 41 lbs
Specifications Width
8 in | 213.36 mm
