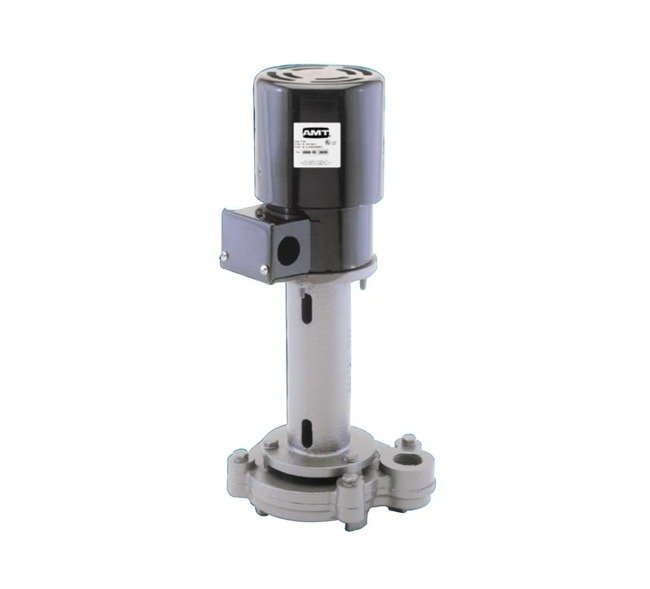

AMT 4431-95 Heavy Duty Industrial Coolant Pump
AMT 4431-95 Heavy Duty Industrial Coolant Pump
SKU:PRO-1cf7ca
AMT 4431-95 Industrial Coolant Pump. Self-cleaning impeller, 1/3 hp TEFC motor, max flow rate 67 gpm, cast iron casing, stainless steel shaft seal. Convenient universal mounting bracket included.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
AMT 4431-95 Heavy Duty Industrial Coolant Pump
$799.99
Quantity: 1
Claim Your Seller Account
AMT 4431-95 Heavy Duty Industrial Coolant Pump
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMT 4431-95 Heavy Duty Industrial Coolant Pump is expertly designed for Industrial/Commercial coolant and recirculating applications. With a cast iron casing, self-cleaning semi-open impeller, and dual volute design, this pump ensures efficient operation with reduced radial load on the motor. Equipped with a 1/3 hp TEFC motor, this pump handles viscosities up to 500 SSU and can reach a maximum temperature of 200°F. The included universal mounting bracket and off-the-shelf availability make installation and maintenance convenient, while the stainless steel shaft seal construction guarantees durability and reliability.
Product Specifications
Specifications 0
Cast Iron Casing and Column3/4" to 1-1/2" NPT Discharge PortHandles Viscosities to 500 SSUIncludes Universal Mounting BracketSelf-cleaning, Semi-open ImpellerSingle or Three Phase 56C Motor Available1/8 to 3/4 HP TEFC MotorMaximum Temperature 200ºF"Off-the-Shelf" Availability for Many Models
Specifications Curve
B
Specifications Customs Code
HTS Code 8413702005
Specifications Enclosure Rating
TEFC
Specifications Full Load Current
2/1 A
Specifications Height
19 in | 477.52 mm
Specifications Length
9 in | 220.98 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
67 gpm
Specifications Moc
Cast Iron
Specifications Model
4431-95
Specifications Motor Frame
56C
Specifications Phase
3
Specifications Porting Position
1 1/4 in
Specifications Power
1/3 hp
Specifications Shaft Seal Construction
Stainless Steel
Specifications Sku
AT443195SP
Specifications Temperature
200 ºF
Specifications Voltage Ac At 60 Hz
230/460 V
Specifications Weight
18.60 | 41 | 41 lbs
Specifications Width
8 in | 213.36 mm
