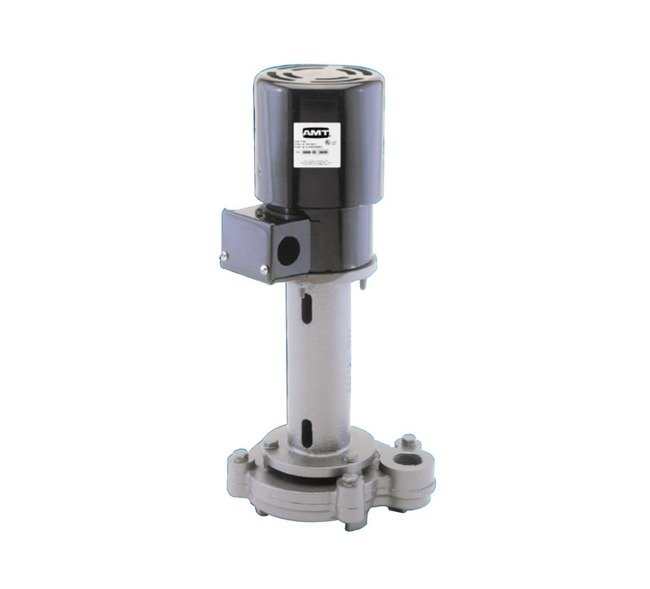

AMT 4442-95 Heavy Duty Industrial Coolant Pump
AMT 4442-95 Heavy Duty Industrial Coolant Pump
SKU:PRO-8e4d5e
Powerful 3/4 hp Heavy Duty Industrial Coolant Pump with dual volute design, ideal for precision coolant circulation.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
AMT 4442-95 Heavy Duty Industrial Coolant Pump
$899.99
Quantity: 1
Claim Your Seller Account
AMT 4442-95 Heavy Duty Industrial Coolant Pump
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

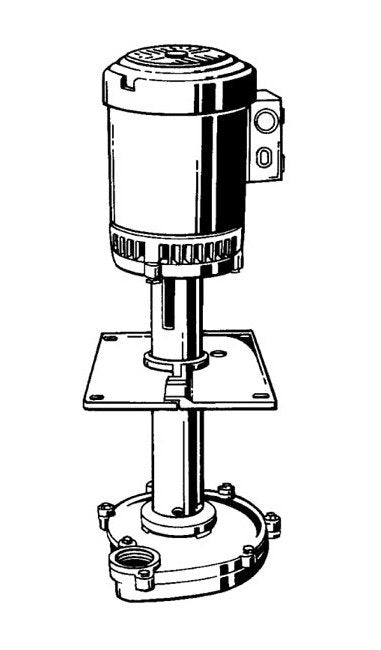

The AMT 4442-95 Heavy Duty Industrial Coolant Pump is a robust solution designed for Industrial/Commercial coolant and recirculating applications. Featuring back vanes on impellers to balance pressure, eliminating the need for mechanical seals. The dual volute construction minimizes radial thrust, enhancing efficiency. With a Universal Mounting bracket system, cast iron casing, and a powerful 3/4 hp TEFC motor, this pump ensures reliability and performance. Ideal for handling viscosities up to 500 SSU and temperatures up to 200°F, meet your coolant pumping needs with the AMT 4442-95.
Product Specifications
Specifications 0
Cast Iron Casing and Column3/4" to 1-1/2" NPT Discharge PortHandles Viscosities to 500 SSUIncludes Universal Mounting BracketSelf-cleaning, Semi-open ImpellerSingle or Three Phase 56C Motor Available1/8 to 3/4 HP TEFC MotorMaximum Temperature 200ºF"Off-the-Shelf" Availability for Many Models

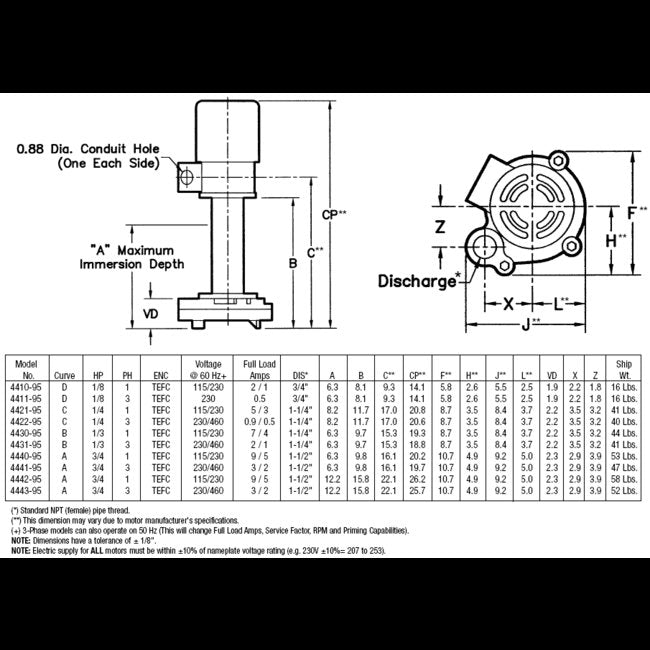

Specifications Curve
A
Specifications Customs Code
HTS Code 8413702005
Specifications Enclosure Rating
TEFC
Specifications Full Load Current
9/5 A
Specifications Height
26 in | 665.48 mm
Specifications Length
11 in | 271.78 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
67 gpm
Specifications Moc
Cast Iron
Specifications Model
4442-95
Specifications Motor Frame
56C
Specifications Phase
1
Specifications Porting Position
1 1/2 in
Specifications Power
3/4 hp
Specifications Shaft Seal Construction
Stainless Steel
Specifications Sku
AT444295SP
Specifications Temperature
200 ºF
Specifications Voltage Ac At 60 Hz
115/230 V
Specifications Weight
26.31 | 58 | 58 lbs
Specifications Width
9 in | 233.68 mm
