AMT 5340-95 Interchangeable Immersion & Suction Coolant/Oil Pump

Name: AMT 5340-95 Interchangeable Immersion & Suction Coolant/Oil Pump
Brand: Springer Pumps, LLC
SKU: PRO-9e4be4
Price: 299.99 USD
Availability: OutOfStock

SKU:PRO-9e4be4

Reliable and cost-effective Immersion & Suction Coolant/Oil Pump for machine tools. Stainless Steel impeller, 1/8 hp motor, 3450 RPM. Ideal for coolants and cutting oils.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The AMT Interchangeable Immersion & Suction Coolant/Oil Pump is a reliable and economical solution designed for the circulation and spraying of coolants and cutting oils in various machine tools. With a durable Stainless Steel impeller, this pump ensures enhanced corrosion resistance and longevity. It features a 1/8 hp motor, available in both single-phase and three-phase options, operating at 3450 RPM. The Semi-open impellers make it ideal for handling solids and fine contaminants, while the pump construction allows handling of nonflammable liquids. This pump is a standard replacement in the Machine Tool Industry, offering a maximum flow of 56 gpm and a maximum head of 60 ft, making it a dependable choice for various industrial applications.

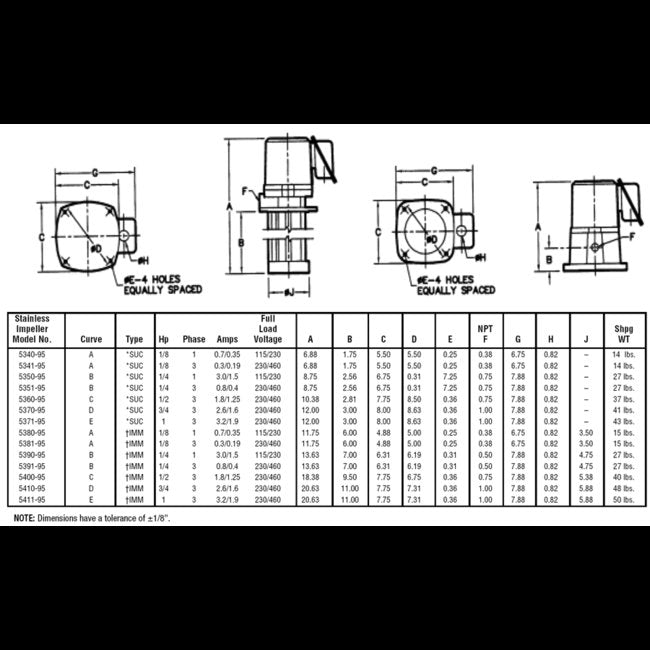

Product Specifications

Specifications 0

Cast Iron ConstructionStainless Steel ImpellerCarbon Steel ShaftCarbon/Ceramic Shaft SealSelf Priming up to 2' - Maximum Suction LiftPumps Must be Mounted Above Liquid

Specifications Curve

Specifications Customs Code

HTS Code 8413702005

Specifications Full Load Current

0.7/0.35 A

Specifications Full Load Voltage

115/230 V

Specifications Height

15 in | 381.00 mm

Specifications Impeller Material

Stainless

Specifications Inlet Size

0.38 in

Specifications Length

8 in | 203.20 mm

Specifications Manufacturer

American Machine and Tool Company

Specifications Max Flow Water

56 gpm

Specifications Model

5340-95

Specifications Motor Rpm

3450 rpm

Specifications Old Fuji Pn

VKN-041A

Specifications Phase

Specifications Power

1/8 hp

Specifications Seal Material

Carbon/Ceramic

Specifications Sku

AT534095SP

Specifications Temperature

180 ÂºF

Specifications Type

Interchangeable Suction Pumps

Specifications Weight

14 | 6.35 | 14 lbs

Specifications Width

8 in | 203.20 mm

Specifications Yasukawa Pn

VFPC-01F

AMT 5340-95 Interchangeable Immersion & Suction Coolant/Oil Pump
