AMT 5380-95 Interchangeable Immersion Pump
AMT 5380-95 Interchangeable Immersion Pump
SKU:PRO-4c03e0
Reliable and cost-effective AMT 5380-95 Interchangeable Immersion Pump for coolant/oil circulation and spraying needs.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
AMT 5380-95 Interchangeable Immersion Pump
$259.99
Quantity: 1
Claim Your Seller Account
AMT 5380-95 Interchangeable Immersion Pump
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMT 5380-95 Interchangeable Immersion Pump is a reliable and cost-effective coolant/oil pump designed for spraying coolants and cutting oils. With a Stainless Steel impeller, this pump offers enhanced corrosion resistance and durability. Featuring a Totally Enclosed motor with sealed bearings, it operates at 3450 RPM and handles liquids compatible with pump materials. Ideal for handling solids and contaminants, this pump is a standard replacement for the machine tool industry.
Product Specifications
Specifications 0
Cast Iron ConstructionStainless Steel ImpellerCarbon Steel ShaftSealless Design for Pumping AbrasivesPumps Liquids Down to 2"Ideally Suited for Pumping Fine Contaminants

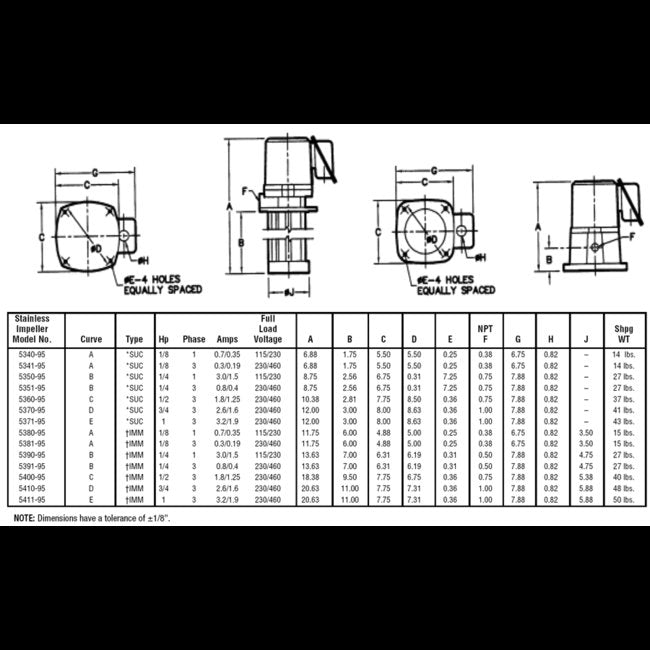

Specifications Curve
A
Specifications Customs Code
HTS Code 8413702005
Specifications Full Load Current
0.7/0.35 A
Specifications Full Load Voltage
115/230 V
Specifications Height
13 in | 330.20 mm
Specifications Impeller Material
Stainless
Specifications Inlet Size
0.38 in
Specifications Length
6 in | 152.40 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Water
56 gpm
Specifications Model
5380-95
Specifications Motor Rpm
3450 rpm
Specifications Old Fuji Pn
VKN-041A
Specifications Phase
1
Specifications Power
1/8 hp
Specifications Seal Material
Sealless Design
Specifications Sku
AT538095SP
Specifications Temperature
180 ºF
Specifications Type
Interchangeable Immersion Pumps
Specifications Weight
15 | 6.80 | 15 lbs
Specifications Width
6 in | 152.40 mm
Specifications Yasukawa Pn
VFPC-01DL
