AMT 5390-95 Immersion & Suction Coolant Pump

AMT 5390-95 Immersion & Suction Coolant Pump

PRO-181e0d

Dependable 1/4 hp Immersion & Suction Coolant Pump for machine tools, with Stainless Steel impeller. Ideal for industrial use.

$399.99
$399.99
Sale

Initiate Order

AMT 5390-95 Immersion & Suction Coolant Pump

AMT 5390-95 Immersion & Suction Coolant Pump

$399.99

Quantity: 1

Claim Your Seller Account

AMT 5390-95 Immersion & Suction Coolant Pump

AMT 5390-95 Immersion & Suction Coolant Pump

$399.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The AMT 5390-95 Immersion & Suction Coolant Pump is a reliable and cost-effective solution designed for the circulation and spraying of coolants and cutting oils in machine tools. Featuring a Stainless Steel impeller, this pump offers enhanced corrosion resistance and durability. With a 1/4 hp motor, stainless impeller, and a sealless design, it can handle fine contaminants and pump liquids down to 2". Ideal for industrial applications, this pump meets high industry standards for efficiency and durability.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

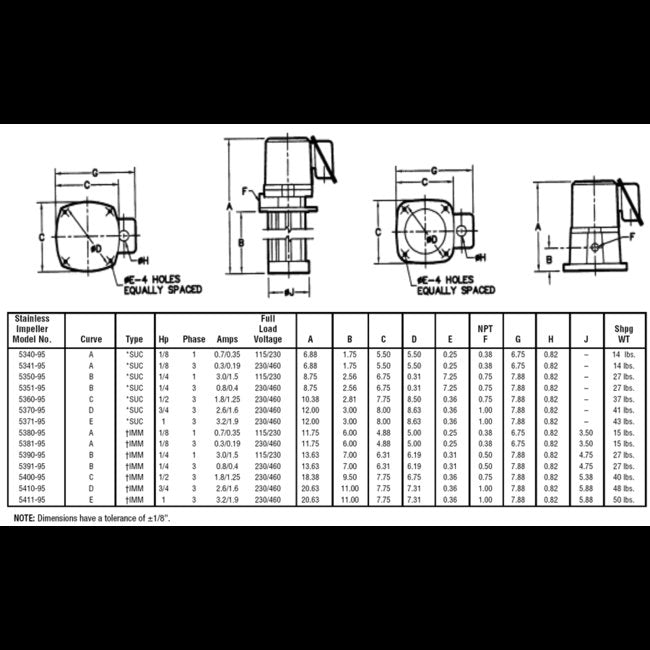

Product Specifications

Specifications 0
Cast Iron ConstructionStainless Steel ImpellerCarbon Steel ShaftSealless Design for Pumping AbrasivesPumps Liquids Down to 2"Ideally Suited for Pumping Fine Contaminants
Specifications Curve
B
Specifications Customs Code
HTS Code 8413702005
Specifications Full Load Current
3.0/1.5 A
Specifications Full Load Voltage
115/230 V
Specifications Height
15 in | 381.00 mm
Specifications Impeller Material
Stainless
Specifications Inlet Size
1/2 in
Specifications Length
8 in | 203.20 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Water
56 gpm
Specifications Model
5390-95
Specifications Motor Rpm
3450 rpm
Specifications Old Fuji Pn
VKN-061A
Specifications Phase
1
Specifications Power
1/4 hp
Specifications Seal Material
Sealless Design
Specifications Sku
AT539095SP
Specifications Temperature
180 ºF
Specifications Toshiba Pn
OPF-100M
Specifications Type
Interchangeable Immersion Pumps
Specifications Weight
12.25 | 27 | 27 lbs
Specifications Width
8 in | 203.20 mm
Specifications Yasukawa Pn
VFPC-100
