AMT 5410-95 Interchangeable Immersion & Suction Coolant Pump - Reliable, cost-effective, and durable solution for coolant circulation and spraying.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
AMT 5410-95 Interchangeable Immersion & Suction Coolant Pump
$899.99
Quantity: 1
Claim Your Seller Account
AMT 5410-95 Interchangeable Immersion & Suction Coolant Pump
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMT 5410-95 Interchangeable Immersion & Suction Coolant Pump is a reliable and cost-effective solution designed for the circulation and spraying of coolants and cutting oils. Featuring a Stainless Steel impeller and sealless design, this pump offers added corrosion/erosion resistance, durability, and the capability to handle solids and fine contaminants. With a 3/4 HP motor, 230/460 V voltage, and 3450 RPM operation, it delivers a maximum flow of 56 GPM, making it ideal for various industrial applications. Compatible with nonflammable liquids, this pump is a standard replacement for the Machine Tool Industry.
Product Specifications
Specifications 0
Cast Iron ConstructionStainless Steel ImpellerCarbon Steel ShaftSealless Design for Pumping AbrasivesPumps Liquids Down to 2"Ideally Suited for Pumping Fine Contaminants

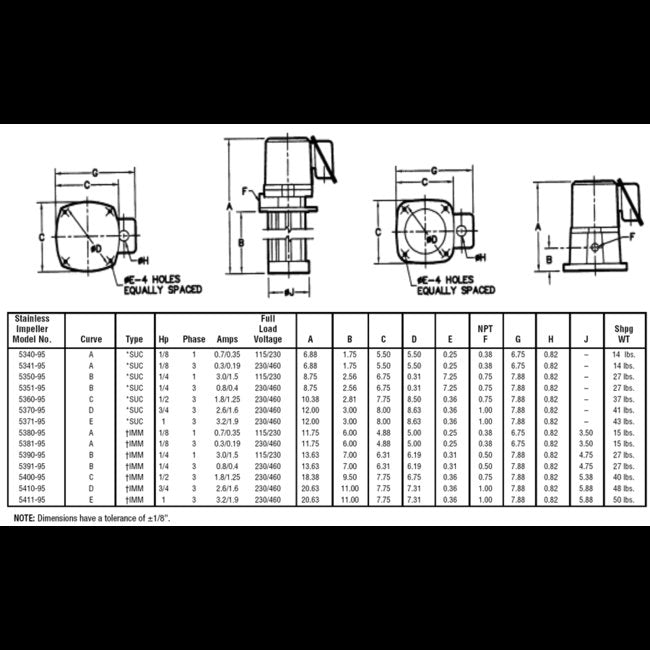

Specifications Curve
D
Specifications Customs Code
HTS Code 8413702005
Specifications Full Load Current
2.6/1.6 A
Specifications Full Load Voltage
230/460 V
Specifications Height
8 in | 203.20 mm
Specifications Impeller Material
Stainless
Specifications Inlet Size
1 in
Specifications Length
14 in | 355.60 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Water
56 gpm
Specifications Model
5410-95
Specifications Motor Rpm
3450 rpm
Specifications Old Fuji Pn
VKN-091A
Specifications Phase
3
Specifications Power
3/4 hp
Specifications Seal Material
Sealless Design
Specifications Sku
AT541095SP
Specifications Temperature
180 ºF
Specifications Toshiba Pn
OPF-400M
Specifications Type
Interchangeable Immersion Pumps
Specifications Weight
21.77 | 48 | 48 lbs
Specifications Width
7 in | 177.80 mm
Specifications Yasukawa Pn
VFPC-4010JJF
