AMT 5763-95 Submersible Shredder Sewage Pump
AMT 5763-95 Submersible Shredder Sewage Pump
SKU:PRO-d21dbf
Reliable AMT 5763-95 Submersible Shredder Sewage Pump with carbide tipped impeller and triplex seal system for efficient sewage management.
Regular price
$1,150.00
Regular price
Sale price
$1,150.00
Unit price
per
Initiate Order
AMT 5763-95 Submersible Shredder Sewage Pump
$1,150.00
Quantity: 1
Claim Your Seller Account
AMT 5763-95 Submersible Shredder Sewage Pump
$1,150.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

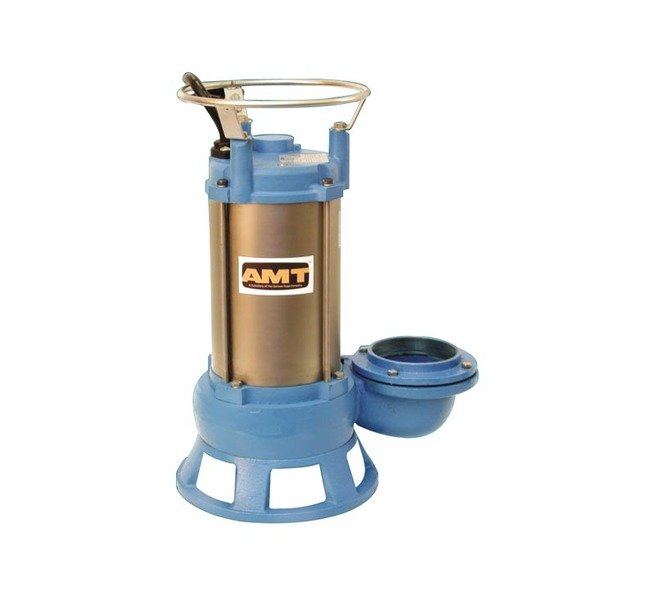

Meet the AMT 5763-95 Submersible Shredder Sewage Pump, engineered with a spiral shredder mechanism plate and carbide tipped impeller for superior clog prevention. Ideal for sewage pumping stations, septic tanks, and sewage treatment plants, this pump boasts continuous duty motors, thermal overload protection, and a triplex seal system. With cast iron construction, stainless steel motor housing, and UL/CSA listing, this pump ensures reliability, low maintenance, and rapid deployment for both consumer and institutional applications.
Product Specifications
Specifications 0
Cast Iron ConstructionStainless Steel Motor HousingDouble Mechanical Seal with Carbide Lower SealCarbide Tipped ImpellerUL/CSA ListedSuction ScreenCarrying Handle104ºF Max. Temperature

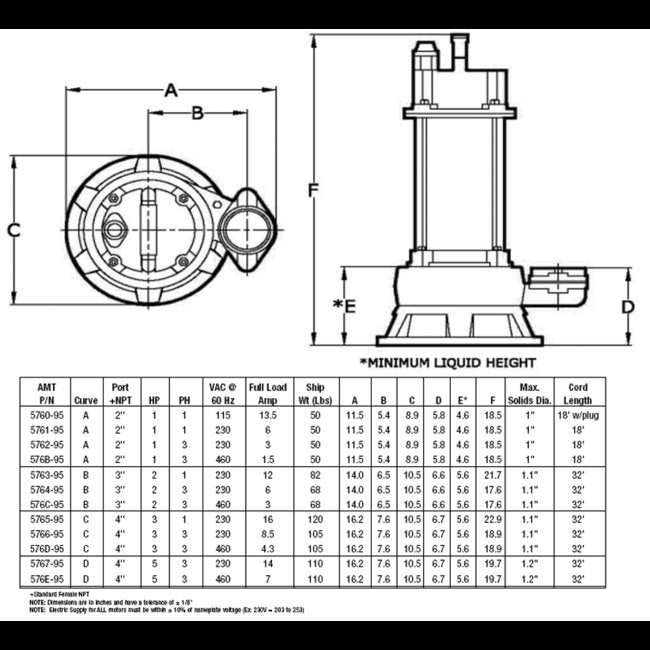

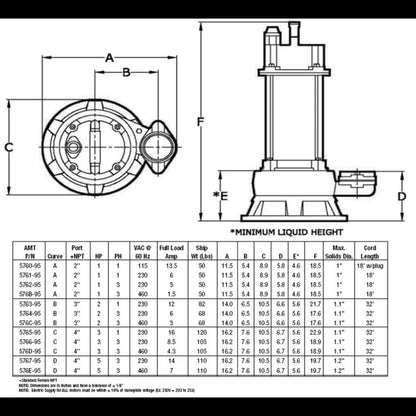

Specifications Curve
B
Specifications Customs Code
HTS Code 8413702004
Specifications Full Load Current
12 A
Specifications Height
22 in | 548.64 mm
Specifications Inlet Size
3 in
Specifications Length
18 in | 457.20 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Moc
Cast Iron/Stainless Steel
Specifications Model
5763-95
Specifications Note
Electric Supply for ALL motors must be within ± 10% of nameplate voltage
Specifications Phase
1
Specifications Power
2 hp
Specifications Sku
AT576395SP
Specifications Solids Handling
1.1 in
Specifications Temperature
104 ºF
Specifications Voltage Ac At 60 Hz
230 V
Specifications Weight
38.56 | 85 | 82 lbs
Specifications Width
14 in | 355.60 mm
