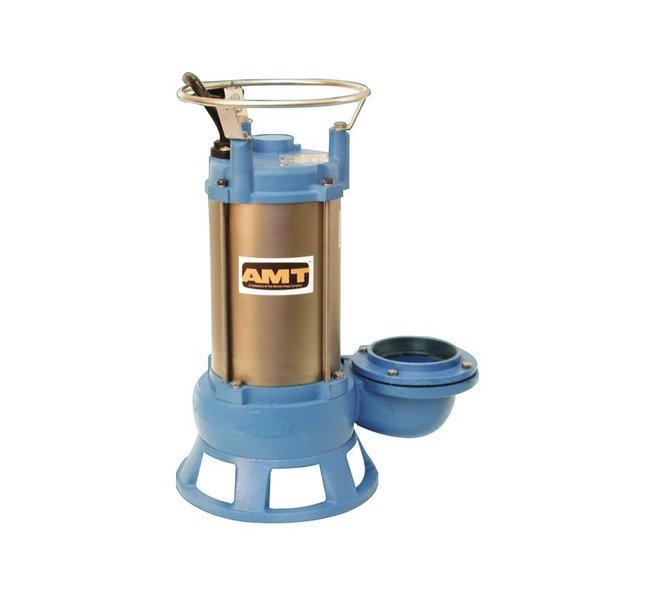

The AMT 5764-95 Submersible Shredder Sewage Pump is engineered with a spiral shredder mechanism plate and carbide tipped impeller to effectively cut through stringy, fibrous, and sludge type waste, preventing clogging and minimizing maintenance. Ideal for sewage pumping stations, septic tanks, sewage treatment plants, and various industrial applications, this pump boasts a durable construction of cast iron with a stainless steel motor housing. It features a triplex seal system with double mechanical seals plus shaft seal and a silicon carbide lower seal for enhanced reliability. With UL/CSA listing and a maximum temperature of 104°F, this pump ensures efficient and continuous operation.
Product Specifications
Specifications 0
Cast Iron ConstructionStainless Steel Motor HousingDouble Mechanical Seal with Carbide Lower SealCarbide Tipped ImpellerUL/CSA ListedSuction ScreenCarrying Handle104ºF Max. Temperature
Specifications Curve
B
Specifications Customs Code
HTS Code 8413702004
Specifications Full Load Current
6 A

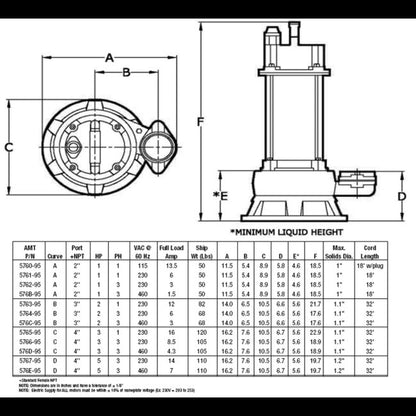

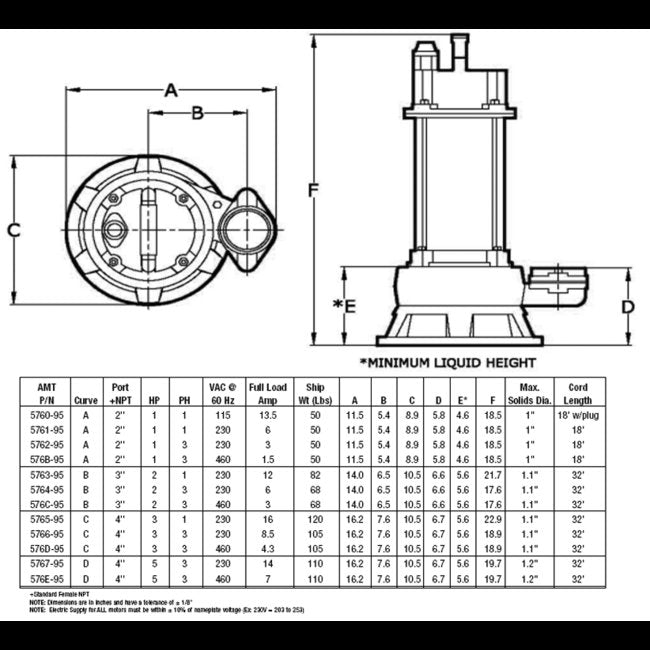

Specifications Height
18 in | 444.50 mm
Specifications Inlet Size
3 in
Specifications Length
18 in | 457.20 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Moc
Cast Iron/Stainless Steel
Specifications Model
5764-95
Specifications Note
Electric Supply for ALL motors must be within ± 10% of nameplate voltage
Specifications Phase
3
Specifications Power
2 hp
Specifications Sku
AT576495SP
Specifications Solids Handling
1.1 in
Specifications Temperature
104 ºF
Specifications Voltage Ac At 60 Hz
230 V
Specifications Weight
36.29 | 80 | 68 lbs
Specifications Width
14 in | 355.60 mm
