AMT 5780-98 Submersible Drainage Pump
AMT 5780-98 Submersible Drainage Pump
SKU:PRO-9a1edc
Reliable AMT 5780-98 Submersible Drainage Pump with 1/2 hp power, automatic float switch, and UL/CSA listing for versatile water removal applications.
Regular price
$725.00
Regular price
Sale price
$725.00
Unit price
per
Initiate Order
AMT 5780-98 Submersible Drainage Pump
$725.00
Quantity: 1
Claim Your Seller Account
AMT 5780-98 Submersible Drainage Pump
$725.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

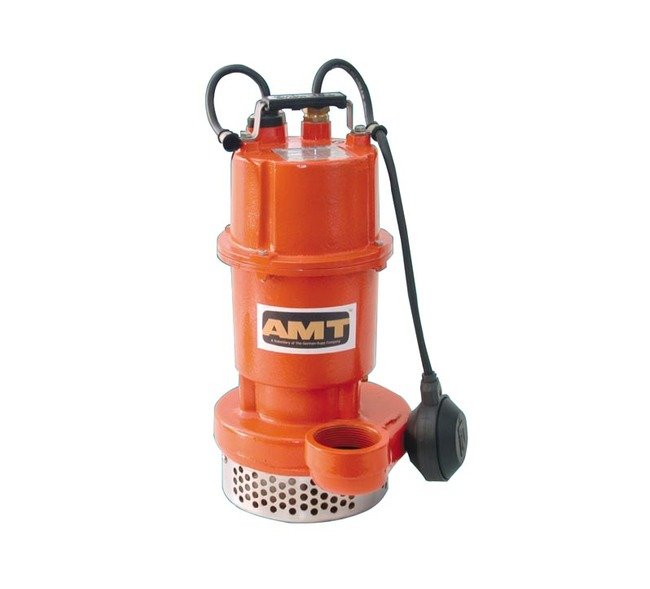

The AMT 5780-98 Submersible Drainage Pump is a versatile solution for various applications including sump pits, drainage pits, basements, and more. Built with quality materials like stainless steel, cast iron, and plastic, it features a triplex seal system, automatic float switch (excluding SS model), and thermal overload protection for reliable operation. With a power of 1/2 hp and a max temperature of 104°F, this pump is UL/CSA listed, ensuring compliance and safety standards. Ideal for quick water removal tasks, it offers easy maintenance and fast 24-hour shipment availability.
Product Specifications
Specifications 0
UL/CSA ListedAutomatic Float Switch (except SS Model 5780-98)Double Mechanical Seal Construction580 Series; Plastic Submersibles Include Hose Adapters104º F Max TemperatureSuction Screen115 VAC UL/SJTW Cord with 3 Prong PlugCarry Handle Built In
Specifications Curve
E
Specifications Customs Code
HTS Code 8413702004
Specifications Full Load Current
5.0 A
Specifications Height
16 in | 414.02 mm
Specifications Inlet Size
2" NPT
Specifications Length
20 in | 508.00 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Model
5780-98
Specifications Note
Electric supply for ALL motors must be with ± 10% of nameplate voltage.
Specifications Power
1/2 hp
Specifications Sku
AT578098SP
Specifications Temperature
104 ºF
Specifications Type
Drainage
Specifications Voltage Ac At 60 Hz
115 V
Specifications Weight
11.79 | 26 | 26 lbs
Specifications Width
6 in | 160.02 mm
