AMT Heavy Duty Centrifugal Pump 4251-95
AMT Heavy Duty Centrifugal Pump 4251-95
SKU:PRO-488e47
AMT Heavy Duty Centrifugal Pump 4251-95: Ideal for industrial applications, self-cleaning impeller, max 500 GPM flow rate.
Regular price
$1,599.00
Regular price
Sale price
$1,599.00
Unit price
per
Initiate Order
AMT Heavy Duty Centrifugal Pump 4251-95
$1,599.00
Quantity: 1
Claim Your Seller Account
AMT Heavy Duty Centrifugal Pump 4251-95
$1,599.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

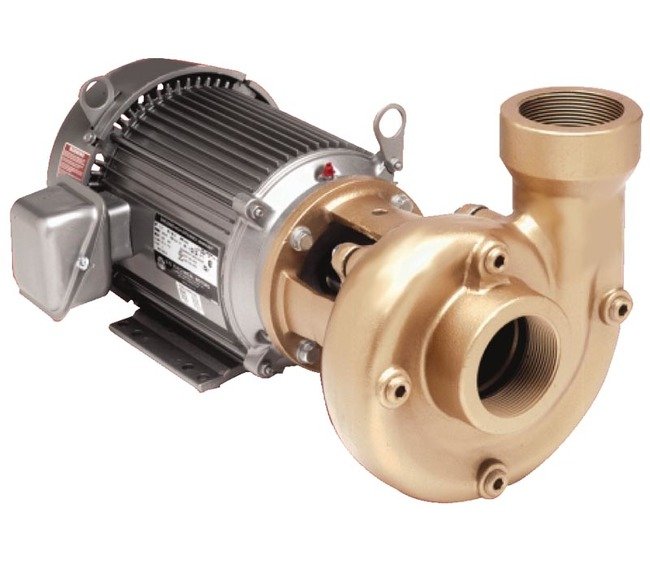

The AMT Heavy Duty Straight Centrifugal Pump 4251-95 is engineered for industrial applications requiring robust performance. Constructed with Stainless Steel, Naval Bronze, or Cast Iron, it is ideal for liquid and chemical transfer, heating/cooling, recirculation, booster services, and more. Equipped with a self-cleaning impeller and Type 21 mechanical seal, this pump ensures reliable operation. With a max flow rate of 500 GPM, max head of 194 Ft., and max working pressure of 150 PSI, it delivers efficiency and durability for diverse applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications 0
Stainless Steel, Naval Bronze & Cast Iron ConstructionBuna-N or Viton® Mechanical Seal and O-Rings depending on Models, Optional Silicon Carbide AvailableStainless Steel HardwareNEMA TEFC Single and Three Phase Motors Depending on the ModelStainless Steel Motor ShaftOptional Mounting Base Available for 182/184/215 JM FramesSelf-cleaning ImpellerDischarge Rotates in 90º IncrementsMaximum Working Pressure to 150 PSIMax. Temperature 200ºF (Viton®), 180ºF (Buna-N)Optional Seal Wash Port and Hose is Available on All Models"Off-the-Shelf" Availability for Many ModelsPedestal Version Models Available for Frame Models 145/182/184JM
Specifications Curve
A
Specifications Customs Code
HTS Code 8413702005
Specifications Enclosure Rating
TEFC
Specifications Full Load Current
47/24 A
Specifications Height
12 in | 304.80 mm
Specifications Inlet Size
3 in
Specifications Installed Options
Seal Wash Installed: 1/8" NPT access and rubber hose w/ 1/2" NPT male thread end (A220-90) | Silicon Carbide/Viton Seal Installed (315X-301-VS) | Silicon Carbide/Viton Seal Installed (424X-301-VS) | Silicon Carbide/Viton Seal Installed (425X-301-VS) | Silicon Carbide/Viton Seal Installed (426X-301-VS)
Specifications Length
25 in | 640.08 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
500 gpm
Specifications Moc
Cast Iron
Specifications Model
4251-95
Specifications Motor Frame
215JM
Specifications Phase
3
Specifications Porting Position
2 in
Specifications Power
15 hp
Specifications Seal Material
Buna-N
Specifications Sku
AT425195SP
Specifications Temperature
180 ºF
Specifications Voltage At 60 Hz
230/460 V
Specifications Weight
209 | 94.80 | 217 lbs
Specifications Width
15 in | 373.38 mm
