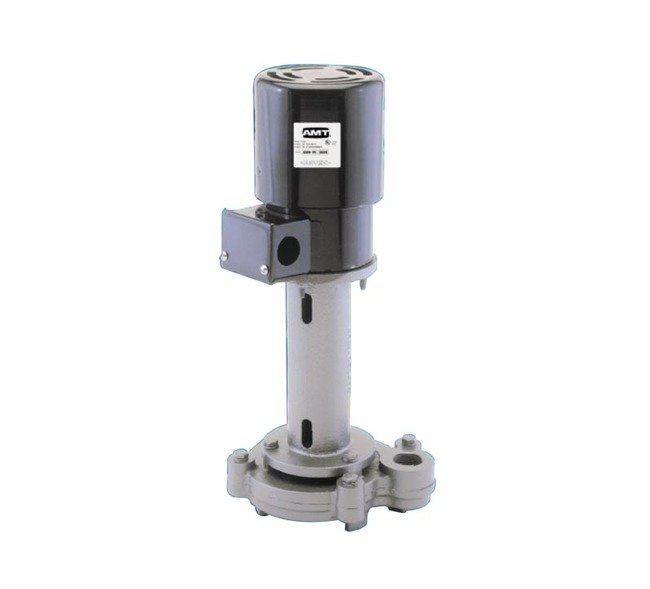

AMT Heavy Duty Industrial Coolant Pump 4441-95
AMT Heavy Duty Industrial Coolant Pump 4441-95
SKU:PRO-d84615
AMT 4441-95 Coolant Pump: Dual volute design, self-cleaning impeller, TEFC motor, ideal for industrial coolant applications.
Regular price
$869.99
Regular price
Sale price
$869.99
Unit price
per
Initiate Order
AMT Heavy Duty Industrial Coolant Pump 4441-95
$869.99
Quantity: 1
Claim Your Seller Account
AMT Heavy Duty Industrial Coolant Pump 4441-95
$869.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMT 4441-95 Heavy Duty Industrial Coolant Pump is engineered for a wide range of Industrial/Commercial coolant and recirculating applications. Featuring a dual volute design that eliminates radial thrust, it boasts a self-cleaning, semi-open impeller, and a cast iron construction suitable for various viscosities. With a maximum temperature of 200°F and a maximum flow rate of 67 GPM, this pump is equipped with a TEFC motor and aligning coupling for enhanced performance and durability. Ideal for heavy-duty use in industrial settings, this pump offers reliable and efficient coolant circulation without the need for mechanical seals.
Product Specifications
Specifications 0
Cast Iron Casing and Column3/4" to 1-1/2" NPT Discharge PortHandles Viscosities to 500 SSUIncludes Universal Mounting BracketSelf-cleaning, Semi-open ImpellerSingle or Three Phase 56C Motor Available1/8 to 3/4 HP TEFC MotorMaximum Temperature 200ºF"Off-the-Shelf" Availability for Many Models

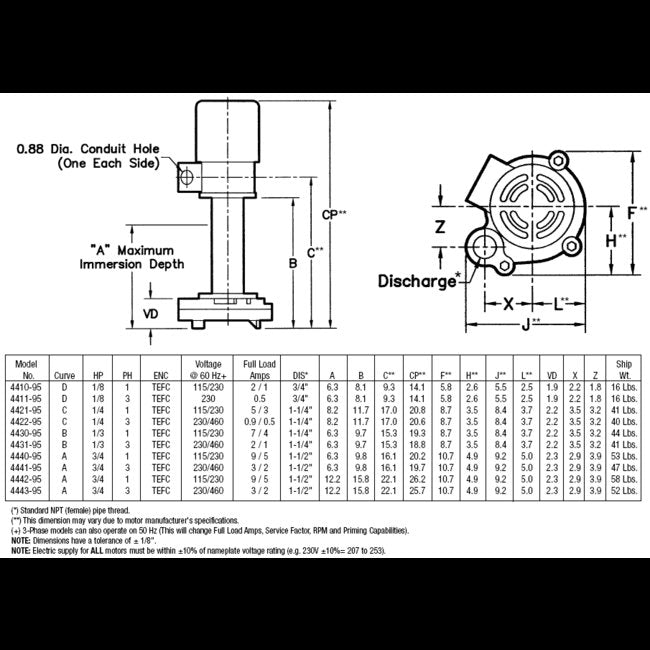

Specifications Curve
A
Specifications Customs Code
HTS Code 8413702005
Specifications Enclosure Rating
TEFC
Specifications Full Load Current
3/2 A
Specifications Height
20 in | 500.38 mm
Specifications Length
11 in | 271.78 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
67 gpm
Specifications Moc
Cast Iron
Specifications Model
4441-95
Specifications Motor Frame
56C
Specifications Phase
3
Specifications Porting Position
1 1/2 in
Specifications Power
3/4 hp
Specifications Shaft Seal Construction
Stainless Steel
Specifications Sku
AT444195SP
Specifications Temperature
200 ºF
Specifications Voltage Ac At 60 Hz
230/460 V
Specifications Weight
21.32 | 47 | 47 lbs
Specifications Width
9 in | 233.68 mm
