AMT Heavy Duty Industrial Coolant Pump 4443-95
AMT Heavy Duty Industrial Coolant Pump 4443-95
SKU:PRO-256e0c
High-performance AMT Heavy Duty Industrial Coolant Pump 4443-95 with 3/4 hp TEFC motor, dual volute design, and self-cleaning impeller.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
AMT Heavy Duty Industrial Coolant Pump 4443-95
$699.99
Quantity: 1
Claim Your Seller Account
AMT Heavy Duty Industrial Coolant Pump 4443-95
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMT Heavy Duty Industrial Coolant Pump 4443-95 is engineered for diverse Industrial/Commercial coolant and recirculating applications. Featuring a cast iron casing and column, this pump boasts a 3/4 hp TEFC motor with a maximum temperature of 200°F. The dual volute design reduces radial load on the motor, while the self-cleaning, semi-open impeller ensures efficient operation. With a universal mounting bracket and compatibility with single or three-phase 56C motors, this pump combines reliability and versatility for heavy-duty coolant pumping needs.

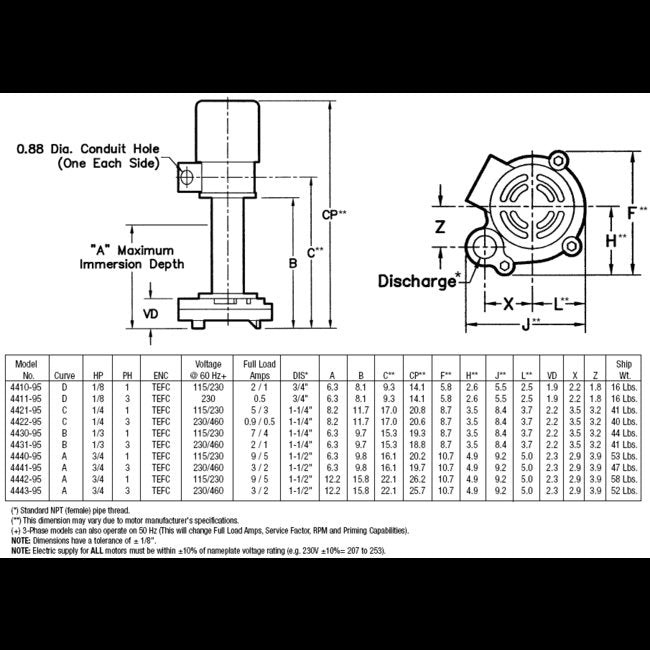

Product Specifications
Specifications 0
Cast Iron Casing and Column3/4" to 1-1/2" NPT Discharge PortHandles Viscosities to 500 SSUIncludes Universal Mounting BracketSelf-cleaning, Semi-open ImpellerSingle or Three Phase 56C Motor Available1/8 to 3/4 HP TEFC MotorMaximum Temperature 200ºF"Off-the-Shelf" Availability for Many Models
Specifications Curve
A
Specifications Customs Code
HTS Code 8413702005
Specifications Enclosure Rating
TEFC
Specifications Full Load Current
3/2 A
Specifications Height
26 in | 652.78 mm
Specifications Length
11 in | 271.78 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
67 gpm
Specifications Moc
Cast Iron
Specifications Model
4443-95
Specifications Motor Frame
56C
Specifications Phase
3
Specifications Porting Position
1 1/2 in
Specifications Power
3/4 hp
Specifications Shaft Seal Construction
Stainless Steel
Specifications Sku
AT444395SP
Specifications Temperature
200 ºF
Specifications Voltage Ac At 60 Hz
230/460 V
Specifications Weight
23.59 | 52 | 52 lbs
Specifications Width
9 in | 233.68 mm
