AMT Heavy Duty Industrial Coolant Pump – Model 4422-95
AMT Heavy Duty Industrial Coolant Pump – Model 4422-95
SKU:PRO-b3c2c8
Efficiently circulate coolants with the AMT Heavy Duty Pump 4422-95 featuring dual volute design and stainless steel shaft seal. Ideal for industrial applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
AMT Heavy Duty Industrial Coolant Pump – Model 4422-95
$799.99
Quantity: 1
Claim Your Seller Account
AMT Heavy Duty Industrial Coolant Pump – Model 4422-95
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

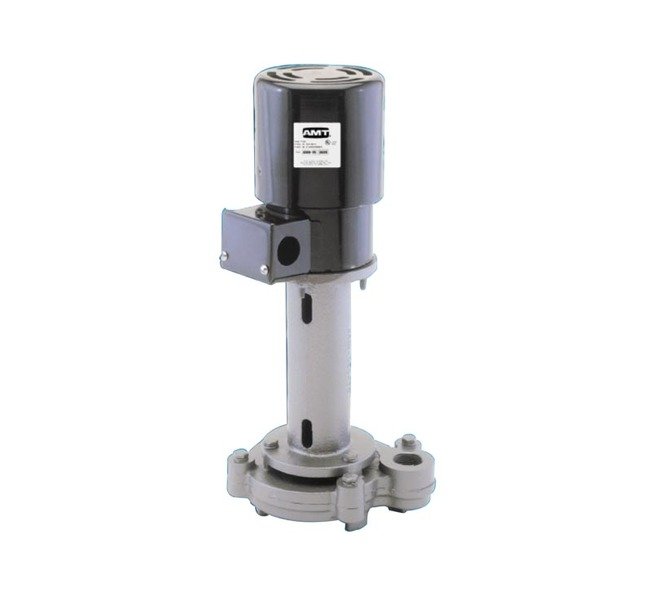

The AMT Heavy Duty Industrial Coolant Pump Model 4422-95 is engineered for diverse Industrial/Commercial coolant and recirculating applications. Featuring a dual volute design to eliminate radial thrust, this pump operates efficiently without the need for bottom bearings. Its self-cleaning, semi-open impeller and stainless steel shaft seal construction ensure reliability in handling viscosities up to 500 SSU. With a cast iron casing, 3/4" to 1-1/2" NPT discharge port, and maximum temperature of 200°F, this pump delivers a maximum flow rate of 67 GPM. Whether for single or three-phase motor applications, this TEFC motor-operated pump is a versatile and durable solution for your coolant pumping needs.

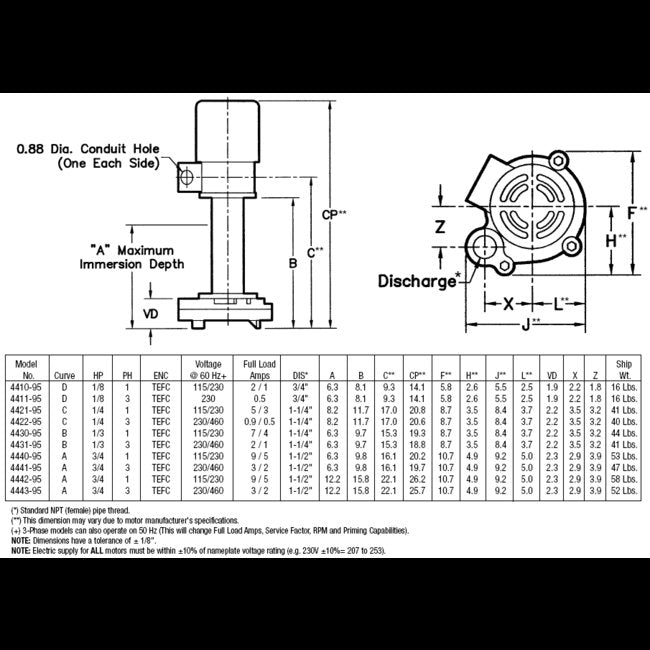

Product Specifications
Specifications 0
Cast Iron Casing and Column3/4" to 1-1/2" NPT Discharge PortHandles Viscosities to 500 SSUIncludes Universal Mounting BracketSelf-cleaning, Semi-open ImpellerSingle or Three Phase 56C Motor Available1/8 to 3/4 HP TEFC MotorMaximum Temperature 200ºF"Off-the-Shelf" Availability for Many Models
Specifications Curve
C
Specifications Customs Code
HTS Code 8413702005
Specifications Enclosure Rating
TEFC
Specifications Full Load Current
0.9/0.5 A
Specifications Height
21 in | 523.24 mm
Specifications Length
9 in | 220.98 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
67 gpm
Specifications Moc
Cast Iron
Specifications Model
4422-95
Specifications Motor Frame
56C
Specifications Phase
3
Specifications Porting Position
1 1/4 in
Specifications Power
1/4 hp
Specifications Shaft Seal Construction
Stainless Steel
Specifications Sku
AT442295SP
Specifications Temperature
200 ºF
Specifications Voltage Ac At 60 Hz
230/460 V
Specifications Weight
19.50 | 43 | 40 lbs
Specifications Width
8 in | 213.36 mm
