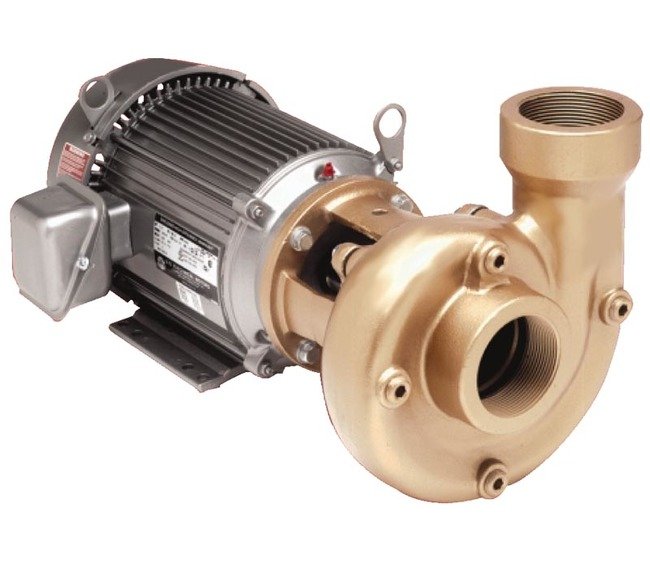

AMT Heavy Duty Straight Centrifugal Pump 4251-98
AMT Heavy Duty Straight Centrifugal Pump 4251-98
SKU:PRO-d192df
Reliable AMT Heavy Duty Straight Centrifugal Pump for industrial liquid transfer applications.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
AMT Heavy Duty Straight Centrifugal Pump 4251-98
$1,899.99
Quantity: 1
Claim Your Seller Account
AMT Heavy Duty Straight Centrifugal Pump 4251-98
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMT Heavy Duty Straight Centrifugal Pump 4251-98 is a top choice for industrial applications requiring efficient liquid and chemical transfer, heating/cooling, and booster services. With Stainless Steel, Naval Bronze, and Cast Iron construction, this pump ensures durability in corrosive environments. Featuring self-cleaning impellers, adjustable discharge positions, and Type 21 mechanical seals, it guarantees reliable performance. Meeting high standards for pressure, temperature, and flow rate, this pump is efficient, low-maintenance, and available 'Off-the-Shelf' for quick delivery.
Product Specifications
Specifications 0
Stainless Steel, Naval Bronze & Cast Iron ConstructionBuna-N or Viton® Mechanical Seal and O-Rings depending on Models, Optional Silicon Carbide AvailableStainless Steel HardwareNEMA TEFC Single and Three Phase Motors Depending on the ModelStainless Steel Motor ShaftOptional Mounting Base Available for 182/184/215 JM FramesSelf-cleaning ImpellerDischarge Rotates in 90º IncrementsMaximum Working Pressure to 150 PSIMax. Temperature 200ºF (Viton®), 180ºF (Buna-N)Optional Seal Wash Port and Hose is Available on All Models"Off-the-Shelf" Availability for Many ModelsPedestal Version Models Available for Frame Models 145/182/184JM
Specifications Curve
A
Specifications Customs Code
HTS Code 8413702005
Specifications Enclosure Rating
TEFC
Specifications Full Load Current
47/24 A
Specifications Height
12 in | 304.80 mm
Specifications Inlet Size
3 in
Specifications Installed Options
Seal Wash Installed: 1/8" NPT access and rubber hose w/ 1/2" NPT male thread end (A220-90) | Silicon Carbide/Viton Seal Installed (315X-300-VS) | Silicon Carbide/Viton Seal Installed (424X-300-VS) | Silicon Carbide/Viton Seal Installed (425X-300-VS) | Silicon Carbide/Viton Seal Installed (426X-300-VS)
Specifications Length
25 in | 640.08 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
500 gpm
Specifications Moc
Stainless Steel
Specifications Model
4251-98
Specifications Motor Frame
215JM
Specifications Phase
3
Specifications Porting Position
2 in
Specifications Power
15 hp
Specifications Seal Material
Viton®
Specifications Sku
AT425198SP
Specifications Temperature
200 ºF
Specifications Voltage At 60 Hz
230/460 V
Specifications Weight
100.70 | 222 | 222 lbs
Specifications Width
15 in | 373.38 mm
