AMT Pedestal Pump - Stainless Steel Fitted Centrifugal Pump
AMT Pedestal Pump - Stainless Steel Fitted Centrifugal Pump
SKU:PRO-19bb3a
AMT 3682-95 Pedestal Pump - Stainless Steel Construction, 118 GPM, 148 ft Head, Self-cleaning Impellers, High Temp Operation
Regular price
$749.99
Regular price
Sale price
$749.99
Unit price
per
Initiate Order
AMT Pedestal Pump - Stainless Steel Fitted Centrifugal Pump
$749.99
Quantity: 1
Claim Your Seller Account
AMT Pedestal Pump - Stainless Steel Fitted Centrifugal Pump
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

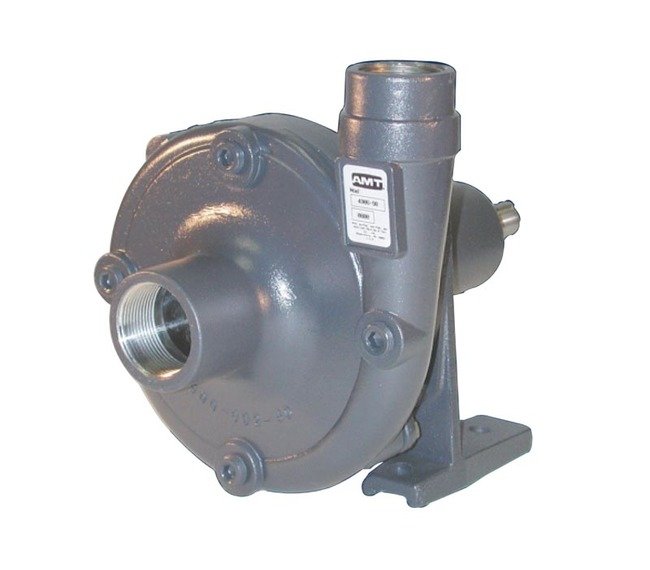

The American Machine and Tool Company presents the AMT 3682-95 Pedestal Pump, engineered for reliable performance in water, sump, and utility applications. Constructed from durable materials like stainless steel, cast iron, and bronze, this pump offers 118 GPM maximum flow and 148 ft maximum head. With self-cleaning impellers and a Buna-N/Viton seal, it ensures efficient operation at up to 180°F. Perfect for high-pressure tasks, this 1/2 hp pump meets institutional standards for quality and durability.
Product Specifications
Specifications 0
Stainless Steel Fitted Cast Iron, Cast Bronze or 300 Series Investment Cast Stainless Steel Construction3/4" to 1-1/2" NPT Suction Ports1/2" to 1-1/4" NPT Discharge PortsMaximum Working PressureGeneral Service - 75 PSIHigh Head - 150 PSISelf-cleaning Impellers on General Service ModelsMaximum TemperatureBuna-N - 180ºFViton® - 200ºFMaximum Flow 118 GPMMaximum Head 148 ft.Discharge Port Rotates in 90º Increments on High Head UnitsEpoxy Coated Pedestal Drive on High Head Models

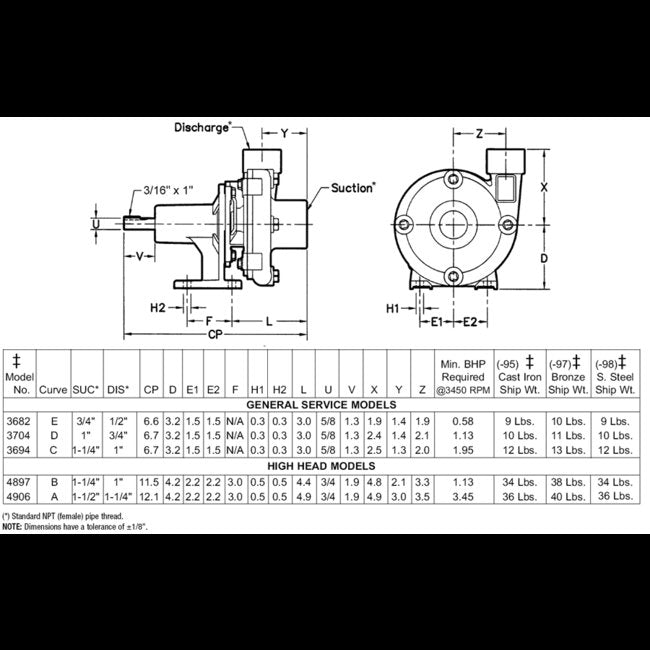

Specifications Curve
E
Specifications Customs Code
HTS Code 8413702022
Specifications Height
5 in | 129.54 mm
Specifications Inlet Size
3/4 in
Specifications Installed Options
Silicon Carbide / Viton Seal Installed (489X-301-VS) | Silicon Carbide / Viton Seal Installed (490X-301-VS)
Specifications Length
7 in | 167.64 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
118 gpm
Specifications Max Working Pressure High Head
150 psi
Specifications Moc
Cast Iron
Specifications Model
3682-95
Specifications Motor Rpm
4000 rpm
Specifications Porting Position
1/2 in
Specifications Power
1/2 hp
Specifications Shaft Seal Construction
Buna/Stainless Steel
Specifications Sku
AT368295SP
Specifications Temperature
180 ºF
Specifications Type
Pedestal Pump
Specifications Weight
4.08 | 9 | 9 lbs
Specifications Width
6 in | 144.78 mm
