AMT Stainless Steel Centrifugal Pedestal Pump
AMT Stainless Steel Centrifugal Pedestal Pump
SKU:PRO-00827b
Reliable stainless steel pedestal pump for industrial use. Maximum flow rate of 118 GPM & head of 148 ft.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
AMT Stainless Steel Centrifugal Pedestal Pump
$799.99
Quantity: 1
Claim Your Seller Account
AMT Stainless Steel Centrifugal Pedestal Pump
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

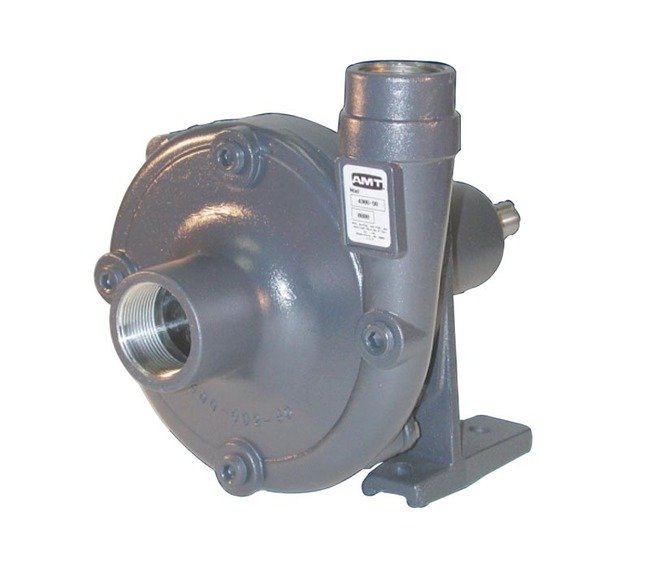

The AMT Stainless Steel Centrifugal Pedestal Pump is a high-performance pump designed for demanding industrial applications. Featuring stainless steel construction and self-cleaning impellers, this pump ensures durability and efficient operation. With a maximum flow rate of 118 GPM and a maximum head of 148 ft, it delivers reliable performance under various conditions. The Viton/Stainless Steel shaft seal construction enhances sealing efficiency, while the epoxy-coated pedestal drive on high head models ensures longevity. Trust in the American Machine and Tool Company's expertise for your pumping needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications 0
Stainless Steel Fitted Cast Iron, Cast Bronze or 300 Series Investment Cast Stainless Steel Construction3/4" to 1-1/2" NPT Suction Ports1/2" to 1-1/4" NPT Discharge PortsMaximum Working PressureGeneral Service - 75 PSIHigh Head - 150 PSISelf-cleaning Impellers on General Service ModelsMaximum TemperatureBuna-N - 180ºFViton® - 200ºFMaximum Flow 118 GPMMaximum Head 148 ft.Discharge Port Rotates in 90º Increments on High Head UnitsEpoxy Coated Pedestal Drive on High Head Models
Specifications Curve
C
Specifications Customs Code
HTS Code 8413702022
Specifications Height
6 in | 144.78 mm
Specifications Inlet Size
1 1/4 in
Specifications Installed Options
Silicon Carbide / Viton Seal Installed (489X-300-VS) | Silicon Carbide / Viton Seal Installed (490X-300-VS)
Specifications Length
7 in | 170.18 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
118 gpm
Specifications Max Working Pressure High Head
150 psi
Specifications Moc
Stainless Steel
Specifications Model
3694-98
Specifications Motor Rpm
4000 rpm
Specifications Porting Position
1 in
Specifications Power
2 hp
Specifications Shaft Seal Construction
Viton/Stainless Steel
Specifications Sku
AT369498SP
Specifications Temperature
200 ºF
Specifications Type
Pedestal Pump
Specifications Weight
12 | 5.44 | 12 lbs
Specifications Width
6 in | 162.56 mm
