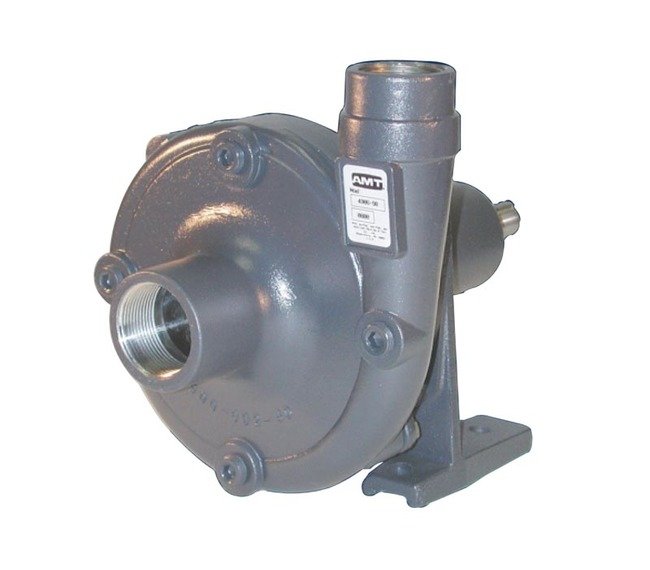

AMT Stainless Steel Pedestal Pump - Model 3682-98
AMT Stainless Steel Pedestal Pump - Model 3682-98
SKU:PRO-36e61b
Reliable AMT Stainless Steel Pedestal Pump - Model 3682-98 for high pressure water applications. Self-cleaning impellers, 118 GPM flow rate, and durable construction.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
AMT Stainless Steel Pedestal Pump - Model 3682-98
$799.99
Quantity: 1
Claim Your Seller Account
AMT Stainless Steel Pedestal Pump - Model 3682-98
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMT Stainless Steel Pedestal Pump, Model 3682-98, offers superior performance and durability for water applications. Constructed with stainless steel, cast iron, or cast bronze, it features self-cleaning impellers, high working pressures of up to 150 psi, and a maximum flow rate of 118 GPM. This pump is ideal for high head units and general service needs, with a maximum temperature of 200°F, Viton stainless steel shaft seal, and 1/2 HP power. Trusted by the American Machine and Tool Company, this pump ensures reliable operation and longevity.
Product Specifications
Specifications 0
Stainless Steel Fitted Cast Iron, Cast Bronze or 300 Series Investment Cast Stainless Steel Construction3/4" to 1-1/2" NPT Suction Ports1/2" to 1-1/4" NPT Discharge PortsMaximum Working PressureGeneral Service - 75 PSIHigh Head - 150 PSISelf-cleaning Impellers on General Service ModelsMaximum TemperatureBuna-N - 180ºFViton® - 200ºFMaximum Flow 118 GPMMaximum Head 148 ft.Discharge Port Rotates in 90º Increments on High Head UnitsEpoxy Coated Pedestal Drive on High Head Models

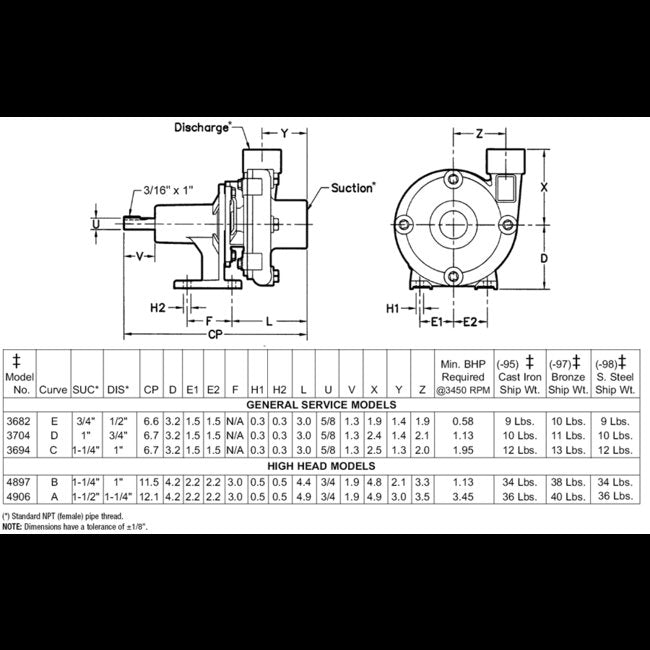

Specifications Curve
E
Specifications Customs Code
HTS Code 8413702022
Specifications Height
5 in | 129.54 mm
Specifications Inlet Size
3/4 in
Specifications Installed Options
Silicon Carbide / Viton Seal Installed (489X-300-VS) | Silicon Carbide / Viton Seal Installed (490X-300-VS)
Specifications Length
7 in | 167.64 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
118 gpm
Specifications Max Working Pressure High Head
150 psi
Specifications Moc
Stainless Steel
Specifications Model
3682-98
Specifications Motor Rpm
4000 rpm
Specifications Porting Position
1/2 in
Specifications Power
1/2 hp
Specifications Shaft Seal Construction
Viton/Stainless Steel
Specifications Sku
AT368298SP
Specifications Temperature
200 ºF
Specifications Type
Pedestal Pump
Specifications Weight
4.08 | 9 | 9 lbs
Specifications Width
6 in | 144.78 mm
