AMTC Pump Straight Centrifugal Pedestal Pump
AMTC Pump Straight Centrifugal Pedestal Pump
SKU:PRO-c36d8a
Reliable AMTC Pump Straight Centrifugal Pedestal Pump for industrial applications. Stainless steel construction, high flow rate, and self-cleaning impellers.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
AMTC Pump Straight Centrifugal Pedestal Pump
$899.99
Quantity: 1
Claim Your Seller Account
AMTC Pump Straight Centrifugal Pedestal Pump
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

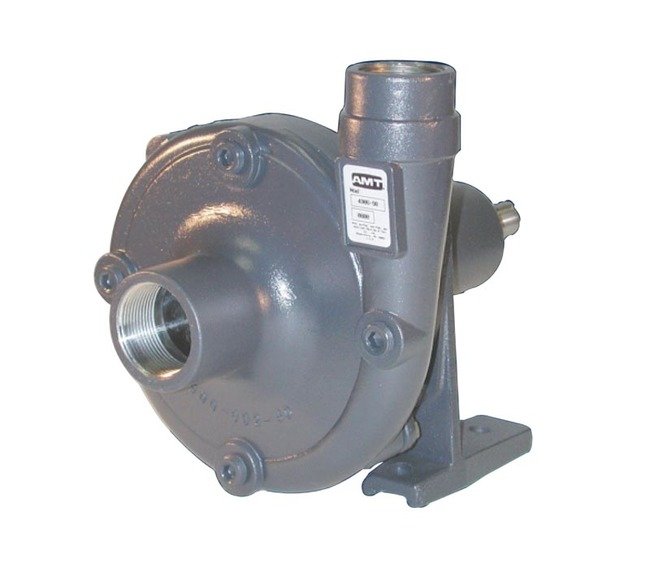

The AMTC Pump Straight Centrifugal Pedestal Pump, model 3682-97, is a robust solution designed for industrial applications, featuring stainless steel fitted cast iron construction with self-cleaning impellers. With a maximum flow rate of 118 GPM and a maximum head of 148 ft, this pump ensures efficient operations. The high head models come with epoxy coated pedestal drives, enhancing durability. Built to withstand demanding conditions, this pump is ideal for water, wastewater, sump, and utility applications, meeting high standards of performance and reliability.
Product Specifications
Specifications 0

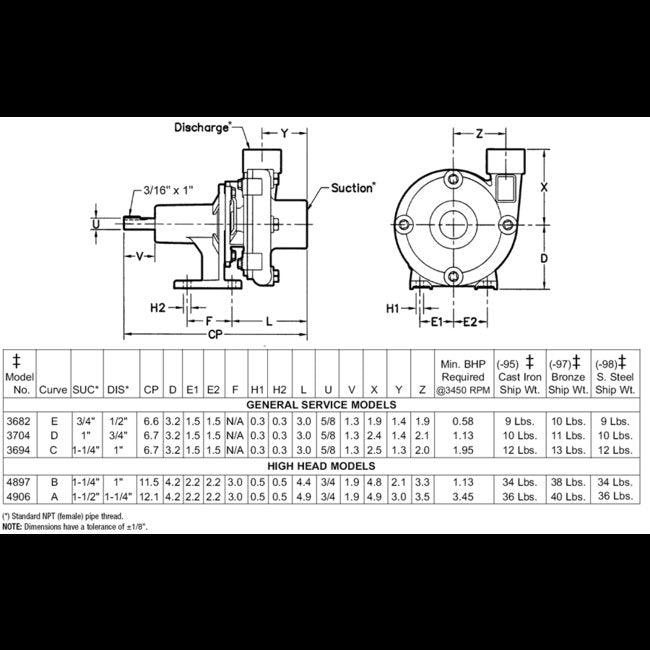

Stainless Steel Fitted Cast Iron, Cast Bronze or 300 Series Investment Cast Stainless Steel Construction3/4" to 1-1/2" NPT Suction Ports1/2" to 1-1/4" NPT Discharge PortsMaximum Working PressureGeneral Service - 75 PSIHigh Head - 150 PSISelf-cleaning Impellers on General Service ModelsMaximum TemperatureBuna-N - 180ºFViton® - 200ºFMaximum Flow 118 GPMMaximum Head 148 ft.Discharge Port Rotates in 90º Increments on High Head UnitsEpoxy Coated Pedestal Drive on High Head Models
Specifications Curve
E
Specifications Customs Code
HTS Code 8413702022
Specifications Height
5 in | 129.54 mm
Specifications Inlet Size
3/4 in
Specifications Installed Options
Silicon Carbide / Viton Seal Installed (489X-300-VS) | Silicon Carbide / Viton Seal Installed (490X-300-VS)
Specifications Length
7 in | 167.64 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
118 gpm
Specifications Max Working Pressure High Head
150 psi
Specifications Moc
Bronze
Specifications Model
3682-97
Specifications Motor Rpm
4000 rpm
Specifications Porting Position
1/2 in
Specifications Power
1/2 hp
Specifications Shaft Seal Construction
Viton/Stainless Steel
Specifications Sku
AT368297SP
Specifications Temperature
200 ºF
Specifications Type
Pedestal Pump
Specifications Weight
10 | 4.54 | 10 lbs
Specifications Width
6 in | 144.78 mm
